- Description
Specifications
Type:
TableTop
Speed Type:
Low Speed (≤10000rpm)
Max speed rpm:
4000
Application:
Beauty, Hematocrit, Cell Smear

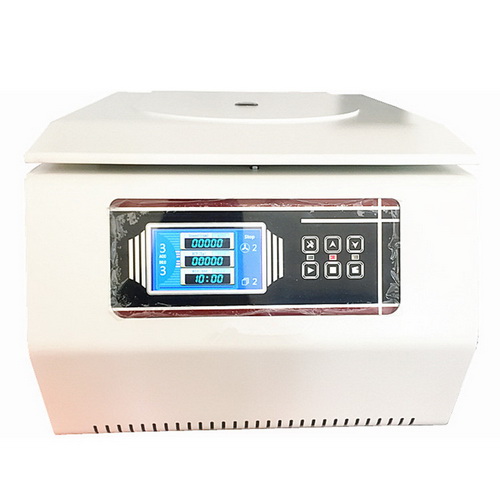

- Table-type uncapped centrifuges, which adopt full steel structure and stainless chamber with small size and low noise
- Solved the problem of blood re-mixed by hand-uncovered, which greatly improved work efficiency and completely eradicated bacteria infection and prevent reagents from human body.
- It can be done once of the multi-functional of uncap and separation.
Technical parameters
Model | CCL-Z4WS | ||
Max Speed | 4000r/min | ||
Rotor | Capacity | Max Speed | Capacity |
Size | Small | Medium | Large |
Capacity | 32×5/7ml | 48×5/7ml 72×5/7 |
96×5/7ml |
RCF | 2800×g | 3050×g | 3350×g |
Power | 450W | 750W | 750W |
Motor | AC Frequency Motor, Microprocessor Control | ||
Timer Range | 0~99min | ||
Noise | ≤65dB(A) | ||
Power Supply | AC220V&110V 50Hz 5A | ||
Dimension | 580×450×370mm(L×W×H) | ||
Weight | 39kg | 52kg | 100kg |
Rotors
No.1 rotor
Capacity: 32×5/7/10ml, Max speed: 4000 r/m, Max RCF:2800xg
No.2 rotor
Capacity: 48×5/7/10ml, Max speed: 4000 r/m, Max RCF:2800xg
No.3 rotor
Capacity: 72×5/7/10ml, Max speed: 4000 r/m, Max RCF:3050xg
No.4 rotor
Capacity: 96×5/7/10ml, Max speed: 4000 r/m, Max RCF:3680xg
