Product info

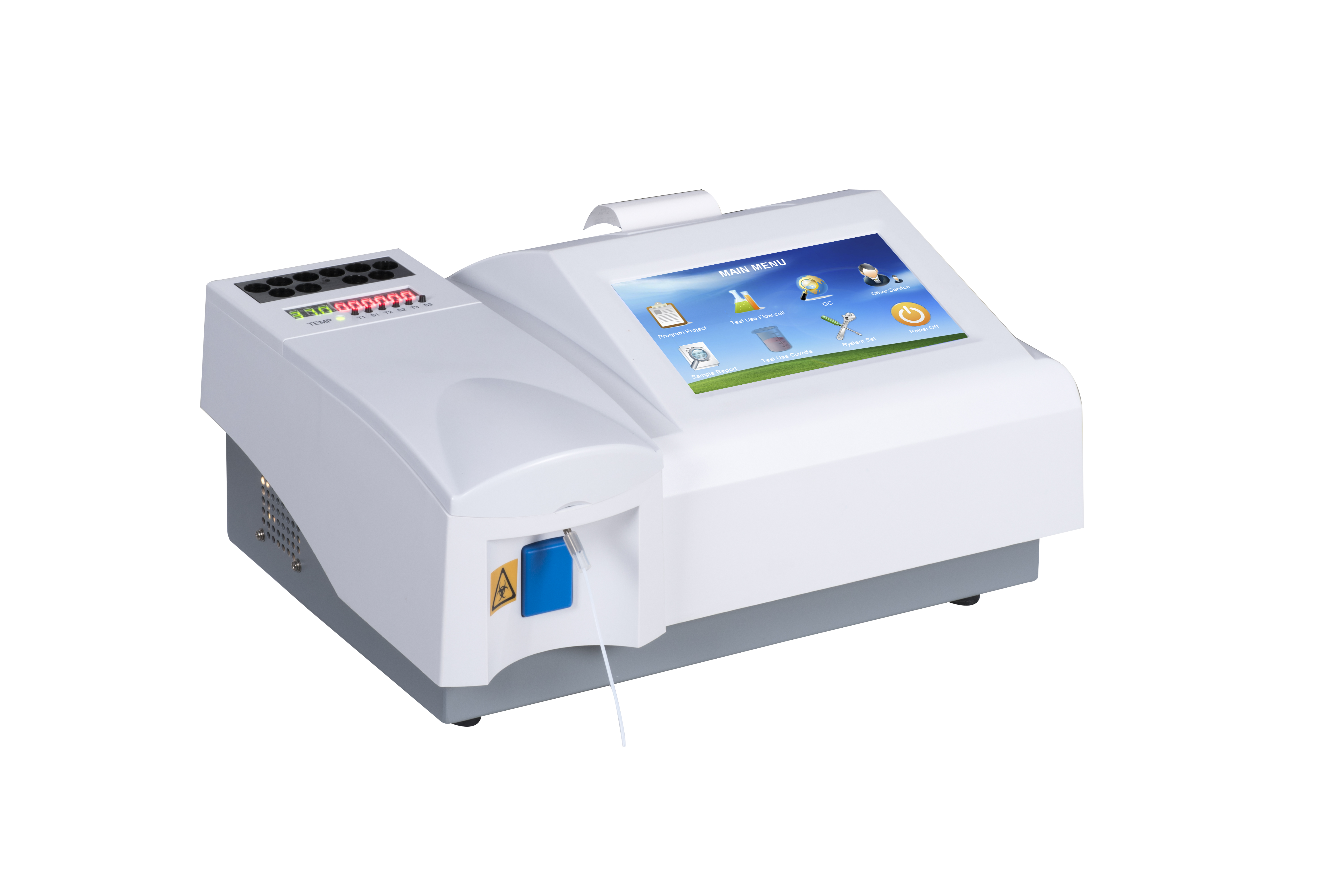

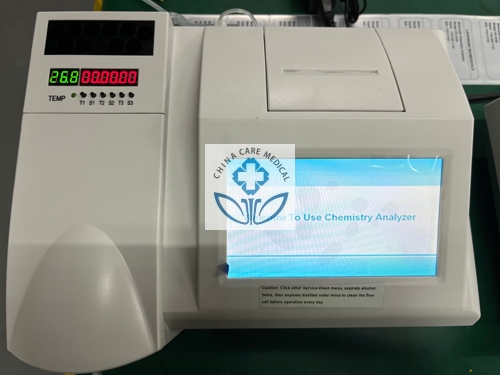

- Product name:Semi-Automatic Biochemical Analyzer with Incubator
- Product code:CCL02B1
Packaging Specifications
- Outer Packaging Size:0.5 × 0.46 × 0.29 m
- Gross Weight:7.5 kg
- Net Weight:5 kg
- Volume:0.07
Description
Specifications
- Type: Semi Auto
- Size: Tabletop Type
Features
- 10 incubators and three timers
- 7 inch Color LCD, Touch screen
- Flow cell and Cuvette test mode compatible
- Real time curve showing
- 7 wavelength, 80 test item pre-programmed
- Memory for 10,000 sample results
- Light source hibernate function making lamp life longer
- RS232 interface, PC connecting
Specifications
- Test mode: Kinetic, End point, Two point, Absorbance
- Wavelength: 7 standard filters (340, 405, 492, 510, 546, 578, 630 nm), 1 free position
- Wavelength precision: ±2 nm, width ≤ 10nm
- Absorbance range: 0~4.500 Abs
- Absorbance precision: outside 0.0001 Abs, inside 0.00001 Abs
- Carry over: < 1%
- Repeatability CV: < 1%
- Incubator: 37°C, 30°C, 25°C, Precision: ±0.1°C
- Sample volume: 0~3000 uL (≥500uL recommend)
- Data Storage: ≥10000
- Quality control curve: SD, CV%, L-J quality control curve for every test item
- Flow cell: 32 uL quartz glass, 10 mm
- Lamp: Philips 6V 10W Halogen Lamp with long life
- Screen: 7 inch color LCD
- CPU: ARM series high speed micro CPU
- Printer: Internal thermal sensitive printer
- Interface: RS-232
- Work Environment: Temperature 0℃ ~ 40℃, Humidity: ≤80%
- Power supply: 100~240VAC, 50-60Hz, 100VA
- Dimension: 340(L)*270(W)*160(H)mm
- Weight: 5 kg
Usual Test List
- Liver function: ALT, AST, ALP, T-BIL, D-BIL, TP, ALB, TTT, CHE, Nh3
- Renal function: BUN, CRE, UA, URE, CO2-CP, γ-GT
- Lipids: T-CHO, TG, HDL-C, LDL-C
- Cardiac function: CK, CK-MB, LDH
- Immune proteins: IGA, IGG, IGM, C3
- Others: GLU, HGB, AMS
