Product info

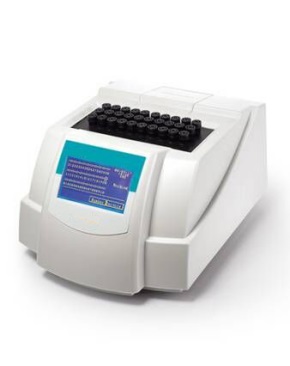

- Product name:30 samples ESR Analyzer Erythrocyte Sedimentation Rate Analyzer
- Product code:CCL-A30
Packaging Specifications
- Outer Packaging Size:0.5 × 0.4 × 0.3 m
- Gross Weight:13 kg
- Net Weight:0 kg
- Volume:0.06
Description
ESR Analyzer (Erythrocyte Sedimentation Rate Analyzer)
Features
- Random access
- Simultaneous scanning of up to 30 samples
- Throughput: up to 60 samples/hour
- Automatic temperature compensation referenced to 18°C according to the Westergren method
- ESR curve display and printout
- Touch screen with large LCD display
- Built-in internal thermal recorder
Specifications
| Parameter | Details |
|---|---|
| Area of application | Erythrocyte sedimentation rate analysis |
| Measuring principle | Infrared sensor |
| Reading channels | 30 available channels |
| Loading capability | Up to 30 samples at a time |
| Loading pattern | Random |
| Measuring time | 30 minutes or 60 minutes selectable |
| Throughput | Up to 60 samples per hour |
| Analysis result | In Westergren ESR value (mm/hr) |
| Temperature compensation | Refer to 18°C automatically (selectable) |
| Reading resolution | 0.2mm |
| Reproducibility | < 0.3% or 2mm/1h |
| Result resolution | 1mm/1h |
| Blood level range | 50mm~64mm |
| Display | LCD screen with backlight |
| Input | Touch screen |
| Interface | RS-232 serial port |
| Internal thermal recorder | |
| Power supply | AC 220V/110V ±10%, 50/60/Hz, 50W |
| Operation conditions | Temperature 15°C~32°C, Humidity ≤85% |
| Dimension | 400mm×300mm×200mm (L×W×H) |
| Net weight | 11.5kg |
