Product info

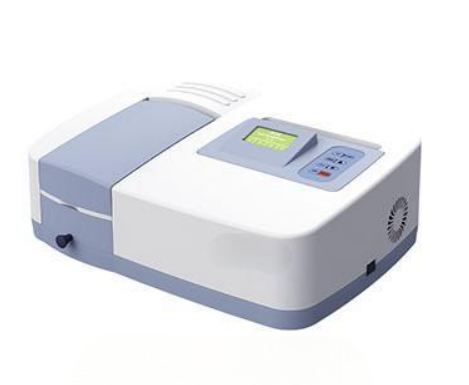

- Product name:Spectrophotometer
- Product code:C26102204
Sin existencias.
Solicitar cotización
Packaging Specifications
Core Parameters
Description
Spectrophotometer
Features
- Large LCD screen (128*64 Dots).
- Pre-aligned design ensures the user can change lamps conveniently.
- With SiO₂ coating optical mirror, reducing the pollution from outside fully.
- Environmental Deuterium lamp, preventing from Ozone inhalation.
- High-class grating, wholly hermetic light path design, ensures the super low stray light.
- Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp with advanced system.
- Wavelength calibration, wavelength setting, change lamp source and dark current calibration automatically.
- Optional PC Software to expand the applications to Quantitative, Multi-Wavelength and Kinetics.
- Widely used for Organic chemistry, Inorganic chemistry, Life sciences, food, Medicine and health, Agriculture, Geology, Metallurgy and Environment etc. fields.
Basic Functions
- Photometry
Test Abs, Transmittance by fixed wavelength. - Quantitative
a. C Mode: Establish C=KA curve, test sample concentration. b. F Mode: Establish A=KC+K0, test sample concentration.
c. Display and save curve, test data
Technical Parameters
表格
| Item | Parameter |
|---|---|
| Model | C26102204 |
| Optical System | Single Beam, Grating 1200 lines/mm |
| Wavelength Range | 200~1100nm |
| Spectral Bandwidth | 4nm |
| Wavelength Accuracy | ±1.8nm |
| Wavelength Repeatability | ≤0.5nm |
| Photometric Accuracy | ±0.002A(0~0.5Abs), ±0.004A(0.5~1.0Abs), ±0.5%(T(0~100%T) |
| Photometric Repeatability | 0.001Abs(0~0.5Abs), 0.002Abs(0.5~1.0Abs), ≤0.2%(T(0~100%T) |
| Stray Light | ≤0.2%(T@360nm; 220nm(UV)) |
| Stability | ±0.002A/h@500nm |
| Noise | ±0.001A |
| Display | 128*64 Dots LCD |
| Photometric Mode | T, A, C, E |
| Photometric Range | 0~200%T, -0.301~3.0A |
| Detector | Silicon Photodiode |
| Light Source | Deuterium Lamp, Tungsten Lamp |
| Input | Membrane Keypad |
| Output | Parallel Print,USB1.0 |
| Power Supply | AC 85~265V, 50/60Hz |
| Standard Accessories | 1cm glass cuvette4, 1cm quartz cuvette2, 1cm quadruple cuvette holder*1 |
| Optional Accessories | General application software, 1cm standard single slot cuvette holder, long optical path cuvette holder, cuvette, micro cuvette, test tube type absorber rack, solid sample holder, deuterium lamp(only for UV series), tungsten lamp, quadruple cuvette holder, printer, four-slot water bath type constant temperature absorption pool, X-Y Adjustable Micro Absorption Pool, single bath type constant temperature absorption pool |
| Package Size(WDH) | 560430320mm |
| Gross Weight | 12kg |
