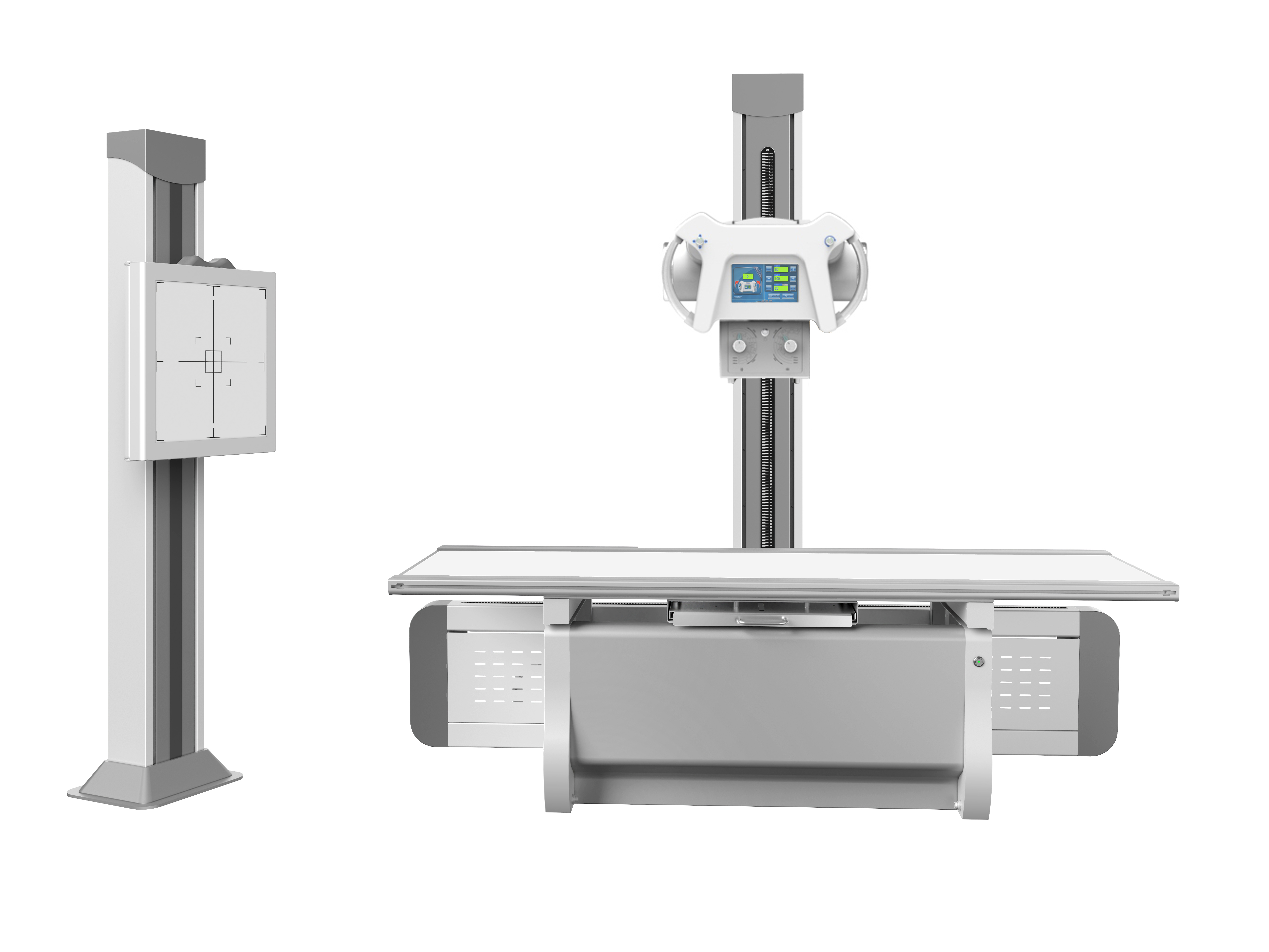

Floor-mounted Digital Radiography System

Main Component Technical Spe.
X-ray Generator(include console)	Output Power	50KW
	Power Voltage	380V±38V
	kV range	40~150kV
	mA range	10~630mA
	mAs range	0.1 ~630mAs
	Exposure time	0.002~6.3S

X-ray Tube	Small focus	0.6
	Large focus	1.2
	Anode speed	3000r/min

Collimator	Inherent filtration	1.0mm Al /75kV
Collimator	Light Source	LED

Radiographic Table	Top Table Size	2100X800X650mm
	Bucky Size	18X18inch
	Table longitudinal movement	≥900mm
	Cassette Movement Distance	≥500mm

Vertical Chest Stand	Vertical moving range	≥1200mm
Vertical Chest Stand	Bucky Size	18X18inch

Wire Flat Panel Detector	Size	17X17inch
	Scintillator	CSI
	Pixels	3072*3072
	Resolution	3.6
	AD Conversion	16

Computer& LCD	CPU	≥2.8GHz
	Memory	≥4GB
	Disk Capacity	≥1T
	Medical LCD	23inch

X-ray generator

Rich DR upgrade reserve interface

Fault self-diagnosis and protection

Automatic calibration of tube current

Infrared photoelectric switch for four-way table

X-ray tube has the function of filament dormancy

AEC function, different ionization chamber as optional

Analog - digital double - loop control, simple operation, high intelligence

High kV, high current, high power,strong penetration,able to handle obese patients

HF Generator LCD Console

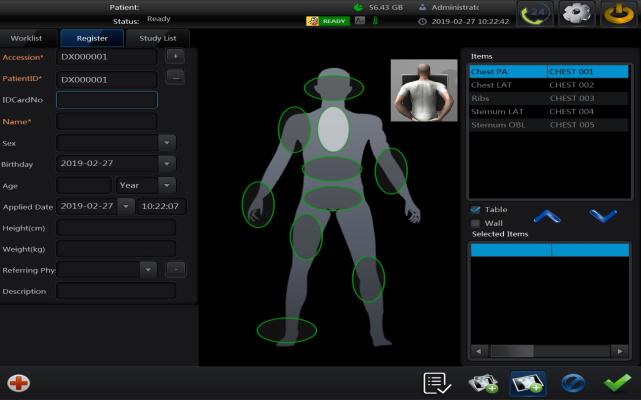

●Profession Acquisition Software ●Professional DR workstation

Support Multi-languages Image capture

Support professional tools Print and storage

Support different brand of X-ray generators Image post-processing

Support RIS/PACS/DICOM Printer Connection Patient management

Applicable to orthopedics, emergency room, operating room, etc., As human head, limbs, chest, spine, lumbar spine for medical diagnosis
