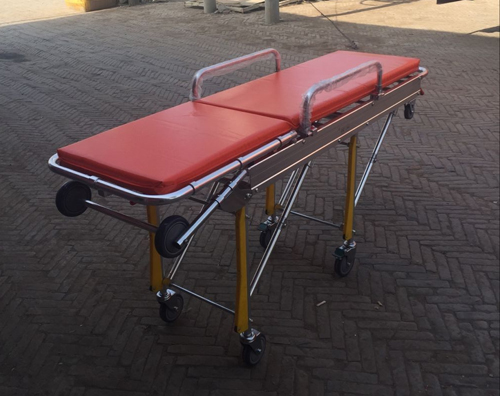

Description

Product Specifications

• Highest: 190×55×92cm
• Lowest: 190×55×25cm
• Max Loading: ≤159kg
• Gradient: 0 to 75 degree

Instructions

1. Using a sponge pad stretcher surface to make the patient transport comfortable, one can let the medical staff push the ambulance stretcher to the ward.
2. If the stretcher needs a low position, rotate the handle and then pinch the handle, the stretcher will automatically lower.
3. When transporting the patient to the ward or destination, open and fix the seat; slowly pull it down from the ambulance, and the stretcher legs will automatically lower.
4. Rotary elastic locking device is used at both ends of the stretcher (head and foot). Turn over the locking device, turn it up and lock it to ensure patient safety; turn it down to facilitate patient up and down transfer.
5. If the stretcher head needs to be raised or lowered, press the button below the stretcher to adjust it up or down.
6. Open the safety device and the bed surface can be separated.

Scope of Application

It can be used to transport sick and wounded patients via ambulance, and can also be used for general surgery transfers.

Notes

1. When transporting the patient, be sure to lock the locker locking device to keep the transport safe; use the safety belt if necessary.
2. When transporting the wounded and sick, the safety belt should be in an insured (fastened) state.

Maintenance

1. Always keep it tidy (including disinfection).
2. Always check for loose parts.

Storage and Transportation

1. The stretcher should be stored in a moisture-proof and non-corrosive environment.
2. It can be transported by general transportation means.
3. During storage and transportation, it is forbidden to place the stretcher upside down; at the same time, stack according to the packaging box instructions.

Packaging and Accessories

1. The stretcher is packed in a cardboard box.
2. Accessories: certificate, manual, packing list
