Product info

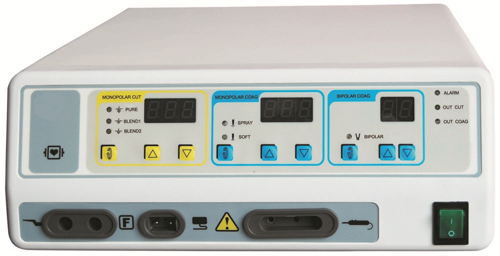

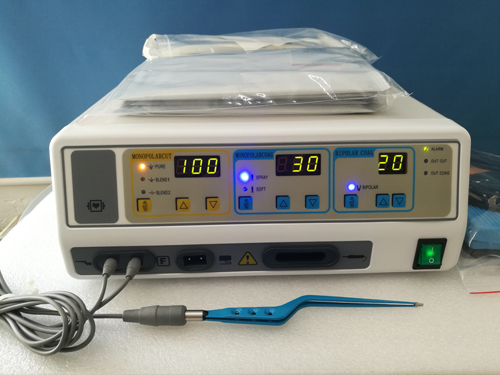

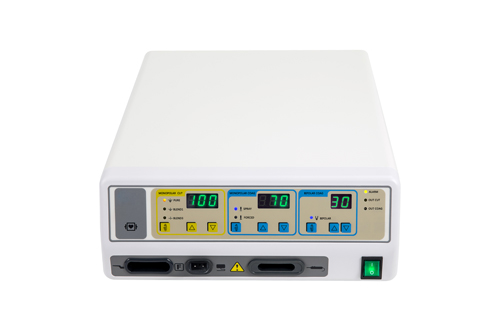

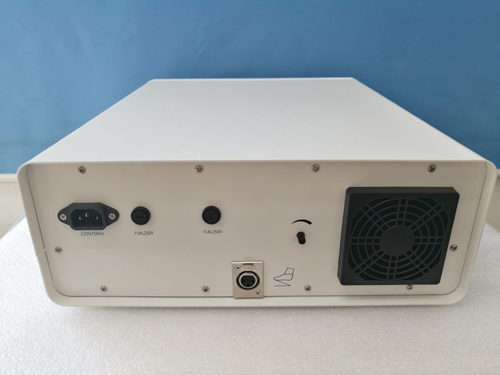

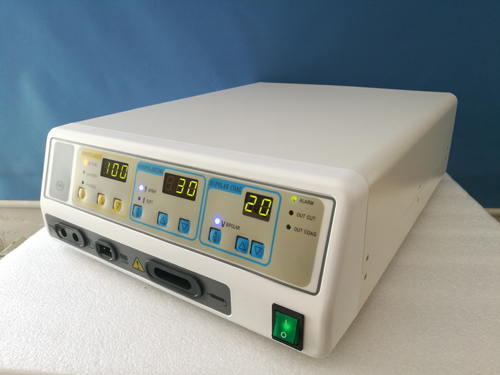

- Product name:Six Working Models Electrosurgical Generator Electrosurgical Unit Diathermy Machine
- Product code:CCS2000I6
Packaging Specifications
- Outer Packaging Size:0.6 × 0.5 × 0.34 m
- Gross Weight:14 kg
- Net Weight:9 kg
- Volume:0.1
Description
PERFORMANCE CHARACTERISTICS
Duty Cycle: Intermittent loading and continuous operation(10s30s)
Six Working modes
| Modes | Output Power (load) | |||
|---|---|---|---|---|
| Monopolar Cut | Pure cut | 1-350W@800ohm load | 14KV | 14 |
| Blend1 | 1-200W@800ohm load | 1.72KV | 1.7 | |
| Blend2 | 1-100W@800ohm load | 2.1KV | 25 | |
| Monopolar Coagulation | Spray | 1-0W@800ohm load | 28KV | 5.8 |
| Forced | 1-120W@800ohm load | 64KV | 2.1 | |
| Bipolar | Standard coag | 1-70W@200ohm load | 48KV | 18 |
Input Power
| Input Voltage | 100-240V~±10% |
|---|---|
| Mains frequency range | 50-60Hz |
| Power Rating | 1100VA |
| Power consumption | 1100VA |
| Fuses(two) | 5A/10A |
| Working frequency | 418KHz |
| Monopolar RF leakage current | <150mA |
| Bipolar RF leakage current | <50mA |
Standards and IEC Classifications
| Class I Equipment | |
|---|---|
| Type CF Equipment | IEC 60601-1 |
| Spill Resistant | IEC60601-2-2 |
| Electromagnetic Compatibility | IEC60601-1-2 and IEC60601-2-2 |
Dimensions and Weight
Height 16cm
Weight 8.5kg
Configuration Sheet
| Main unit | 1set |
|---|---|
| Electrosurgical Pencil | 5pieces |
| Electrosurgical Pad | 19pieces |
| Electrosurgical pad cable | 1piece |
| Double Footswitch | 1set |
| Bipolar Forceps with cable | 1set |
| Tip Clean Sponge | 1piece |
| Power cable | 1piece |
| Fuse | 3pieces |
Operating Parameters
Ambient temperature range:
Relative humidity: ≤80%
Atmospheric pressure: 86kPa to 106kPa
Main Features
★Max 350W Electrosurgical Generator, with mono-polar and bipolar function.
★Six working modes pure cut, blend1,blend2,spray coag.forced coag, bipolar coag
★ Wide clinical applications,such as the general surgery, thoracic surgery, orthopedic surgery, cardiology,gynecology, urology(under water TUR), oncology,neurosurgery, etc.
★Microprocessor controlled, digital display.
★With audible and visual indicators and errors codes during the process of outputting.
★Return Electrode Monitoring system and Power Peak System,minimizing the risk of tissue damage.
★Both hand and foot controlled.
★Separate power display and outlet socket for mono-polar cut, mono-polar coag, and bipolar coag, each output can be individually configured.
★The unit always remember the last setting when it turned off.
★Remote control function.The surgeon can adjust the outputs by power control ESU pencil.
★The ESU unit can be connected with laparoscope and endoscope,etc.
★Protection against over voltage and over-current
★Defibrillation protected.
★Mounted on a 4 wheels cart(optional)
