Product info

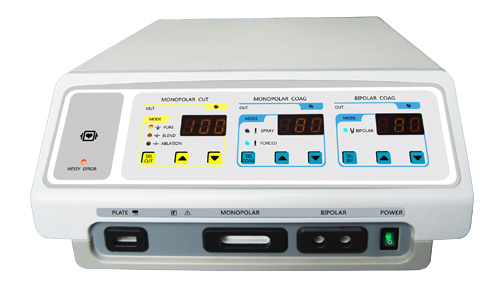

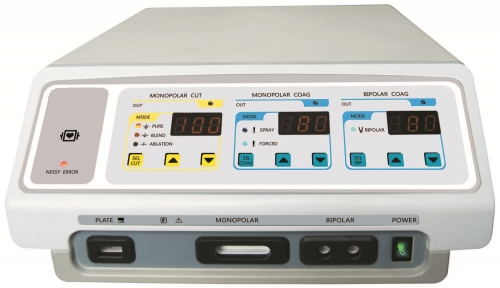

- Product name:Radio Frequency Electrosurgical Unit Diathermy Machine
- Product code:CCS-2000RF
Packaging Specifications
- Outer Packaging Size:0.59 × 0.49 × 0.39 m
- Gross Weight:14 kg
- Net Weight:8 kg
- Volume:0.11
Description
Main Features
★ Max 150W Radiofrequency Surgical Unit, with mono-polar and bipolar function.
★ Six working modes: pure cut, blend, ablation, spray coag, forced coag, bipolar coag.
★ Wide clinical applications, such as the general surgery, dermatology, orthopedic surgery, cardiology, gynecology, , oncology, neurosurgery, ophthalmology, ENT, Stomatology, etc.
★ Microprocessor controlled, digital display.
★ With audible and visual indicators and errors codes during the process of outputting.
★ Both hand and foot controlled.
★ Separate power display and outlet socket for mono-polar cut, mono-polar coag,and bipolar coag, each output can be individually configured.
★ It redefines the surgical results with 4MHz radio wave technology, minimizes heat dissipation and cellular alteration while cutting and coagulation soft tissues.
★ Low temperature, non-carbide, no adhesion, Less bleeding, quick recover.
★ Protection against over-voltage and over-current.
★ Convection refrigeration without ventilator.
★ Mounted on a 4 wheels cart(optional).
PERFORMANCE CHARANCTERISTICS
Duty Cycle: Intermittent loading and continuous operation( 10s/30s)
Six Working modes
| Function | Modes | Output Power (load) | V-PP | CF |
| Monopolar Cut | Pure cut | 1-150W @700ohm load | 2.6kV | 1.5 |
| Blend1 | 1-100W@700ohm load | 4KV | 1.8 | |
| Ablation | 1-100W@700ohm load | 4.2KV | 2.1 | |
| Monopolar Coagulation | Spray | 1-80W@700ohm load | 5.3KV | 7.4 |
| Forced | 1-100W@700ohm load | 5KV | 3.8 | |
| Bipolar | Standard coag | 1-120W@200ohm load | 550V | 1.6 |
Input Power
| Input Voltage | 100-240V～±10% |
| Mains line frequency range | 50-60Hz |
| Power Rating | 1100VA |
| Power consumption | ≤1100VA |
| Fuses(two) | 5A/10A |
| Working frequency | MONO: 4MHz; BIP: 1MHz |
| Monopolar RF leakage current | ＜150mA |
| Bipolar RF leakage current | ＜50mA |
Standards and IEC Classifications
| Class I Equipment IEC 60601-1 |
| Type CF Equipment IEC 60601-1 |
| Spill Resistance IEC 60601-2-2 |
| Electromagnetic Compatibility IEC 60601-1-2 and IEC60601-2-2 |
Dimensions and Weight
| Length: 45cm | Width: 37cm |
| Height : 17cm | Weight: 8kg |
Operating Parameters
| Ambient temperature range: 5℃ to 40℃ |
| Relative humidity: ≤80% |
| Atmospheric pressure: 86kPa to 106kPa |
Configuration Sheet
| Main unit 1set |
| Electrosurgical Pencil 5pieces |
| Electrosurgical Pad 10pieces |
| Electrosurgical pad cable 1piece |
| Reusable electrosurgical pad with cable 1set |
| Double Footswitch 1set |
| Bipolar Forceps with cable 1set |
| Electrodes(different shapes &sizes) 10pieces |
| Tip Clean Sponge 1piece |
| Power cable 1piece |
| Fuse 3pieces |
