Description

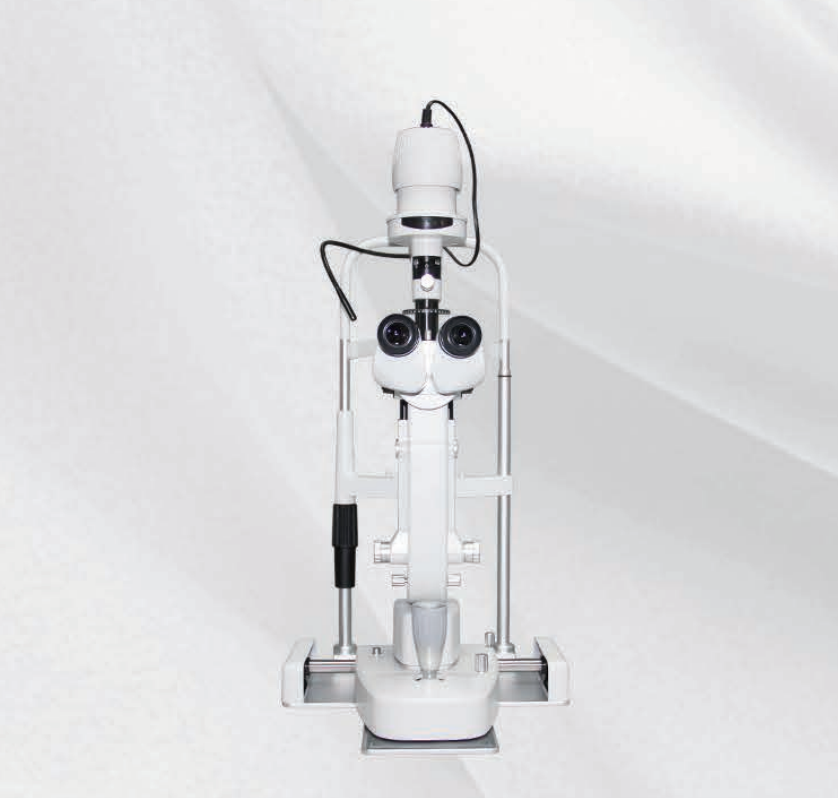

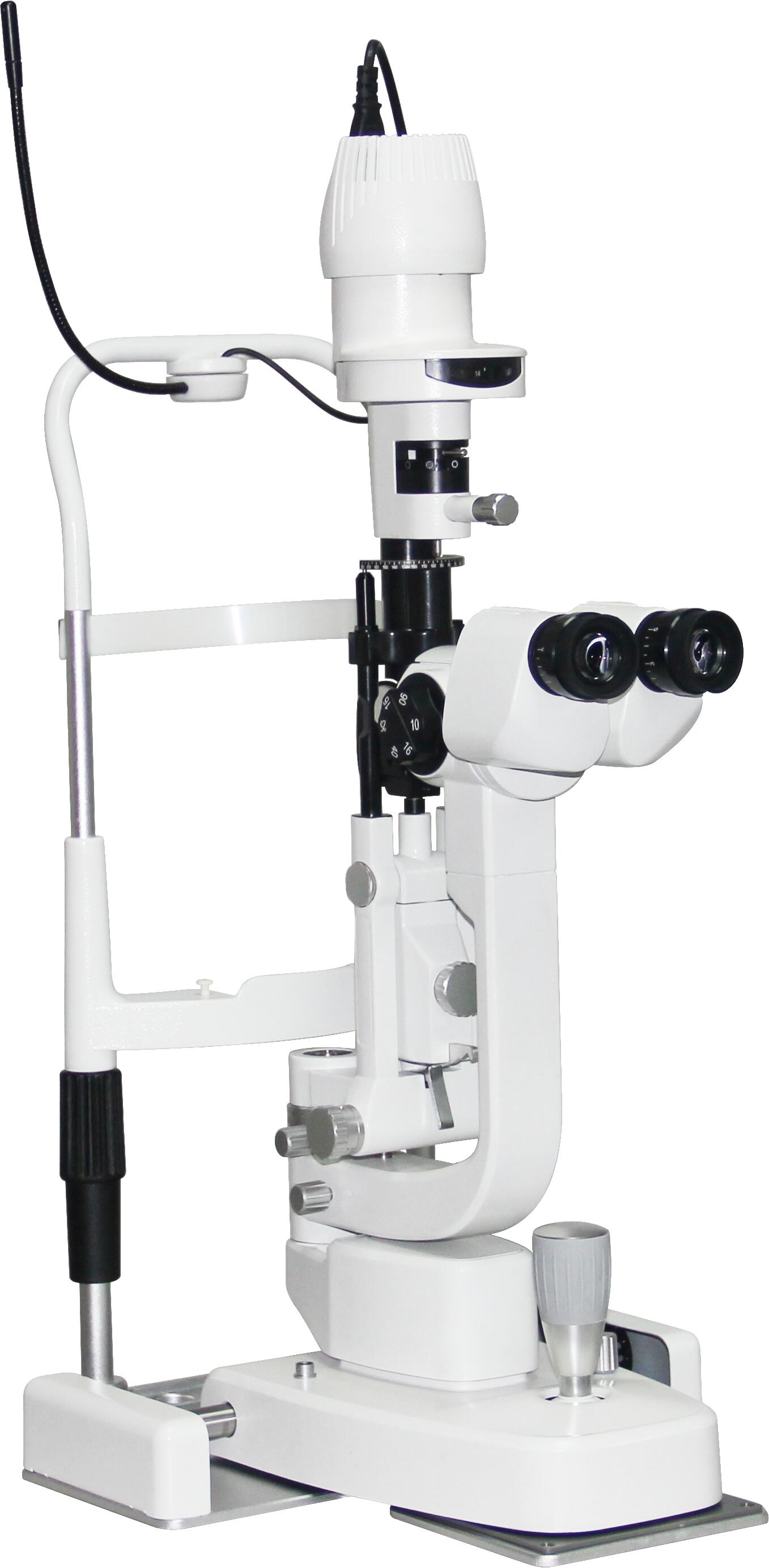

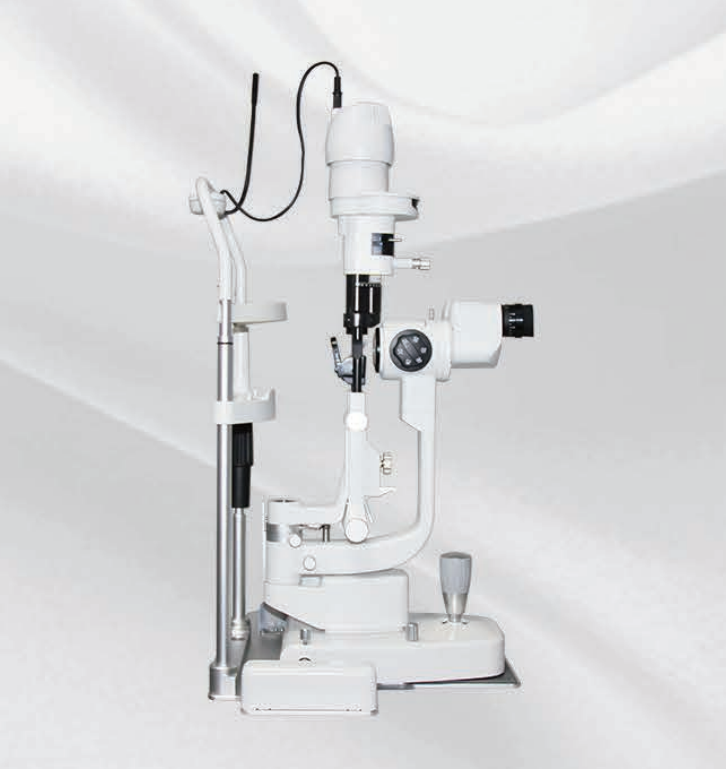

Slit Lamp Microscope

Better Detail For Better Quality

New Technologies And Powerful Functions Simple operation interface provides with accurate operation experience

Features

14mm Slit Height: 14mm aperture provides broader and clearer field of view

Metal Joystick: Joystick is made by metal, and the overall appearance is fantastic, and at the same time it increases clinical operation space

Five-step drum magnification: Five-step drum magnification of eyepiece. Sclera vein could be observed under the 40X magnification

International standards: All the joints can be connected by accessories with international standards

Adjustable photoelectric box: By stepless adjustable photoelectric box, it can provide all kinds of appropriate brightness of the lightening according to the clinical doctors' actual demand

Filter selection: Four different filters can be inserted into the illumination pathway. Anti-ultraviolet radiation filter ensures patients' safety during examination

Specification

Microscope

Microscope type: Galilean Stereoscopic Microscope

Objective Magnification: Five-step Drum Magnification

Eyepiece: 12.5X

Magnifications: 6.3X,10X,16X,25X,40X

Diopter Adjustment: -5D-+5D

Pupil Distance: 55mm-75mm

Field of view: 6.3X=33mm; 10X=22.5mm; 16X=14mm; 25X=8.8mm; 40X=5.5mm

Illumination Assembly

Slit Width: 0mm~14mm adjustable

Slit Height: 1mm~14mm adjustable

Slit Angle: 0-180° adjustable

Slit Inclination: 5°,10°,15°,20°

Diameter of Light Spot: 0.2mm,1mm,2mm,5mm,10mm,14mm

Filters: Redfree,Cobalt Blue,Heat Absorption,Grey

Illumination Source: 12V/30W Halogen Source

Power Supply Input: AC110/220V 50Hz/60Hz
