Description

Orthopedic Traction

Model

Table Length: ≥ 1900mm

Table Width: 400mm

Tabletop Lowest Height: ≤ 750mm

Elevation Range: 250mm

Performance Description

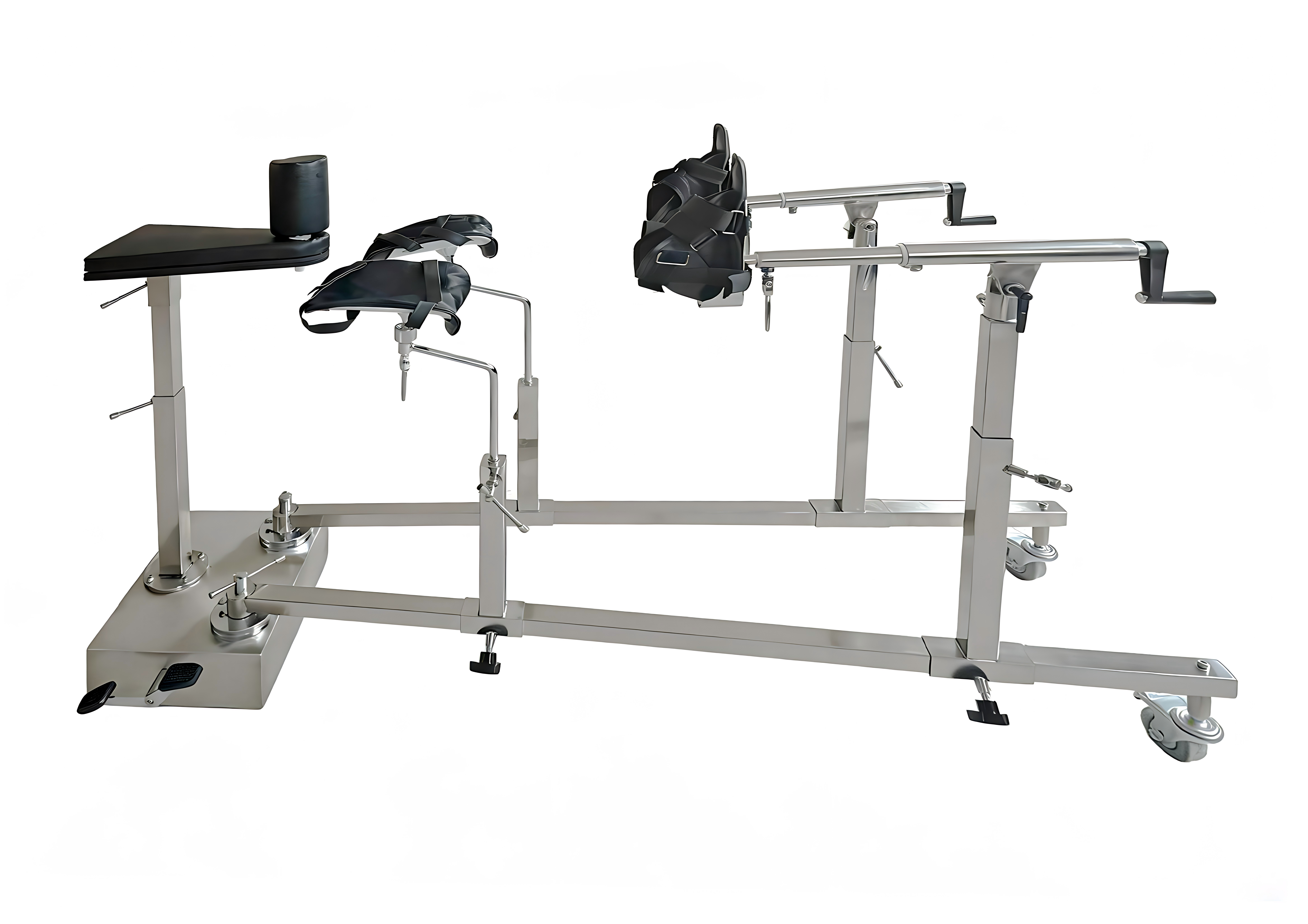

The orthopedic operating table consists of a tabletop, column, base and other parts. It can be matched with general operating tables from different manufacturers at any time to meet the requirements of orthopedic surgery.

The main metal parts are made of high-quality stainless steel and are durable; the pelvic frame has three optional insertion positions: left, middle and right, which can avoid the obstruction of the traction bracket during hip fluoroscopy surgery and allow surgeons to get closer to the patient from both sides for surgery; it is easy to use with a C-arm in any position without barriers or blind spots, enabling full fluoroscopy; the pelvic frame on the lifting column can also be inserted with a lateral frame or knee frame, with a lifting stroke of 25 cm, sufficient to adapt to different bone sizes of men, women, the elderly and children; the traction rod can change angles greatly and has a telescopic design; the ankle fixer can rotate 360° and can also be removed to install other accessories for flexible application; it is equipped with 6 universal brake casters for easy movement and positioning.

Technical Parameters

Overall Length: 1900 mm

Overall Width: 400 mm

Minimum Height: 750 mm

Lifting Stroke: ≥ 250 mm

Foot Support Extension Distance: ≥ 1000 mm

Foot Support Height Adjustment: ≥ 400 mm

Foot Support Angle Range: ≥ 90°

Foot Support Adjustment Distance: ≥ 200 mm

Basic Configuration

1 pair of binding shoes, 1 set of leg supports, 1 set of cushions

Packaging and Delivery

Packaging: Wooden case

Size: 1575440 cm

Gross Weight / Net Weight: 90 / 75 kg
