Product info

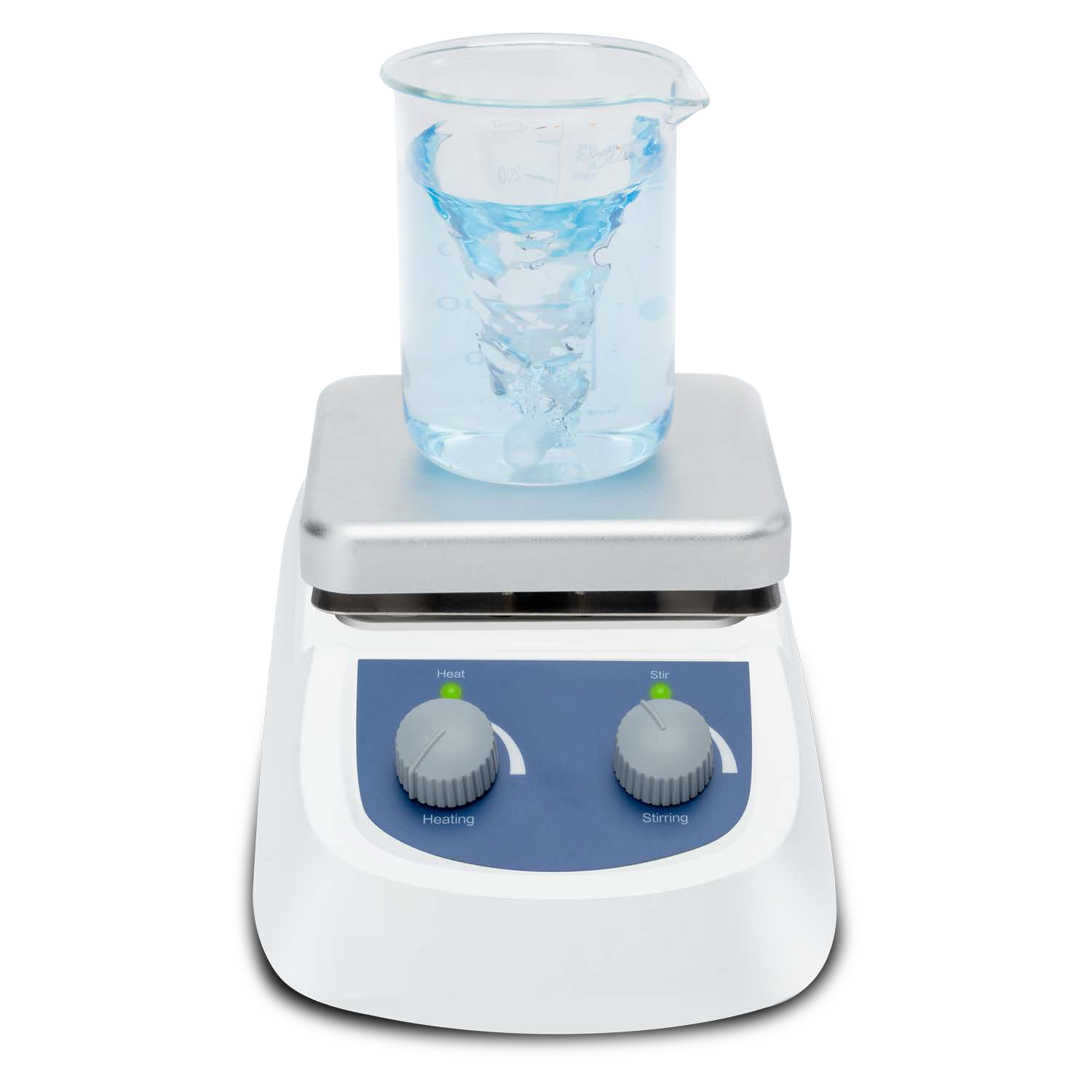

- Product name:Magnetic Stirrer
- Product code:CCL-H38
Packaging Specifications
- Outer Packaging Size:0.31 × 0.3 × 0.15 m
- Gross Weight:2.48 kg
- Net Weight:1.4 kg
- Volume:0.01
Description
Features and advantages
- Maximum heating temperature of 380°C.
- Maximum stirring capacity of 2L.
- Maximum stirring speed of 2000rpm.
- Efficient diversion platform and waterproof design to prevent liquid from entering the machine and corroding electronic components.
- Corrosion-resistant all-metal shell with excellent heat dissipation performance and reliable fire protection capabilities.
- Aluminum plate surface for fast heat conduction.
- Temperature and speed indicators for monitoring operational status.
Specifications
| Parameter | Details |
|---|---|
| Work plate dimension | 120×120mm |
| Work plate material | Aluminum |
| Motor type | DC brush motor |
| Stirring positions | 1 |
| Max. stirring quantity [H₂O] | 2L |
| Max. magnetic bar [length] | 50mm |
| Speed range | 0-2000 rpm |
| Heating temperature range | RT.+5°C-380°C |
| IP protection class | IP21 |
| Motor rating output | 5W |
| Heating power | 200W |
| Power | 205W |
| Voltage, Frequency | 100-120/200-240V 50/60Hz |
| Dimensions [W×D×H] | 235×140×90mm |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
| Weight | 1.4kg |
