Description

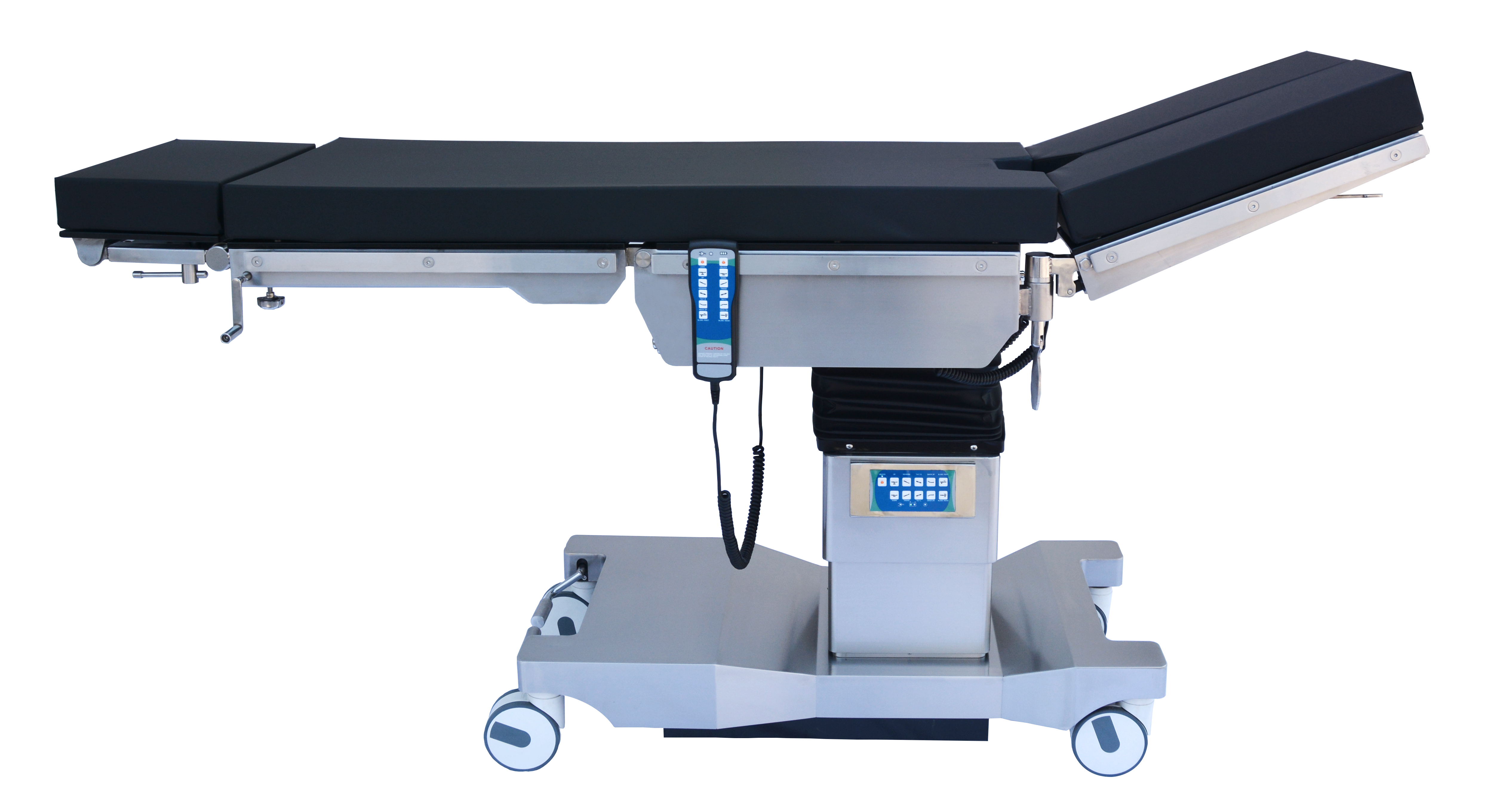

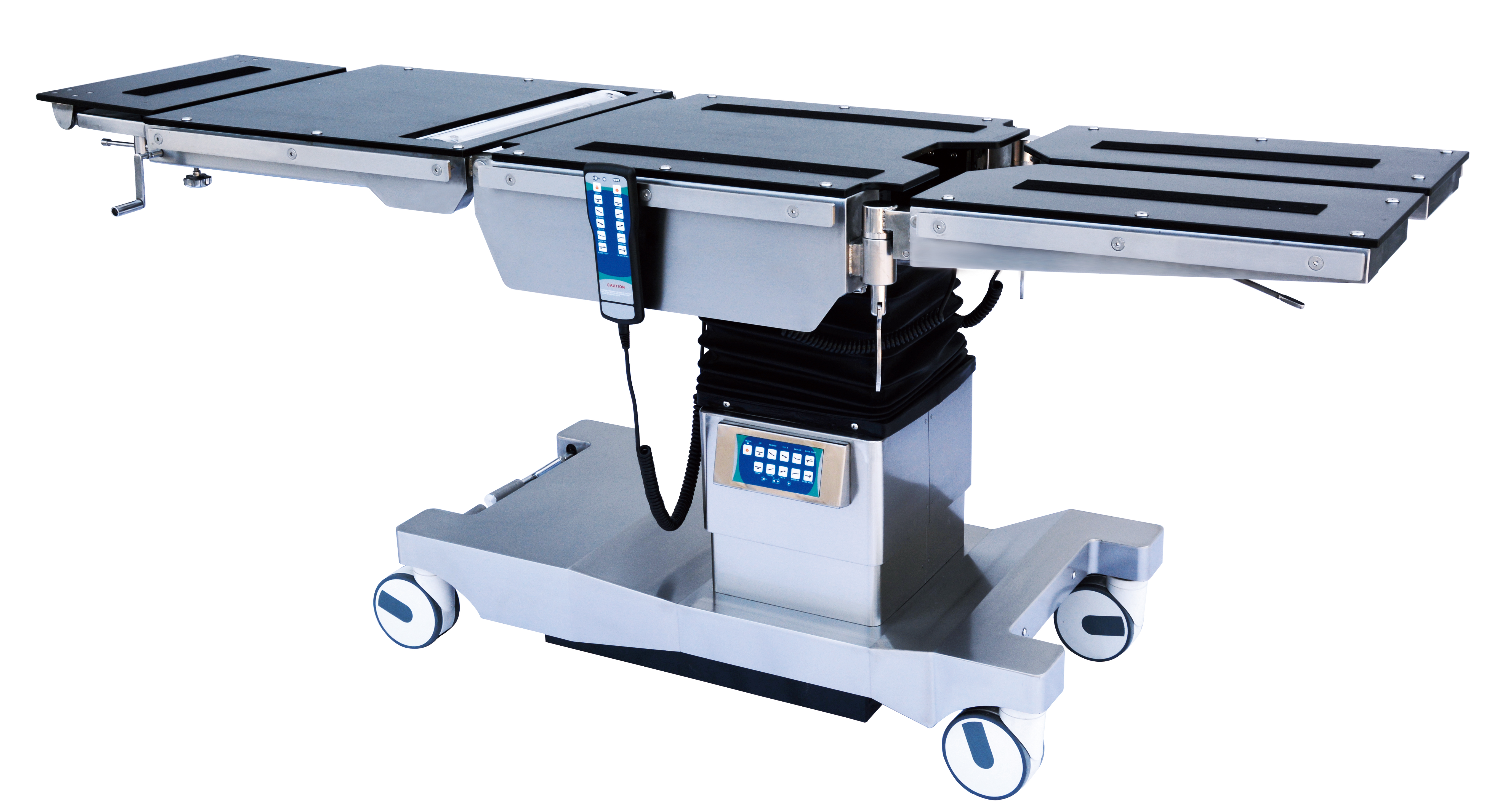

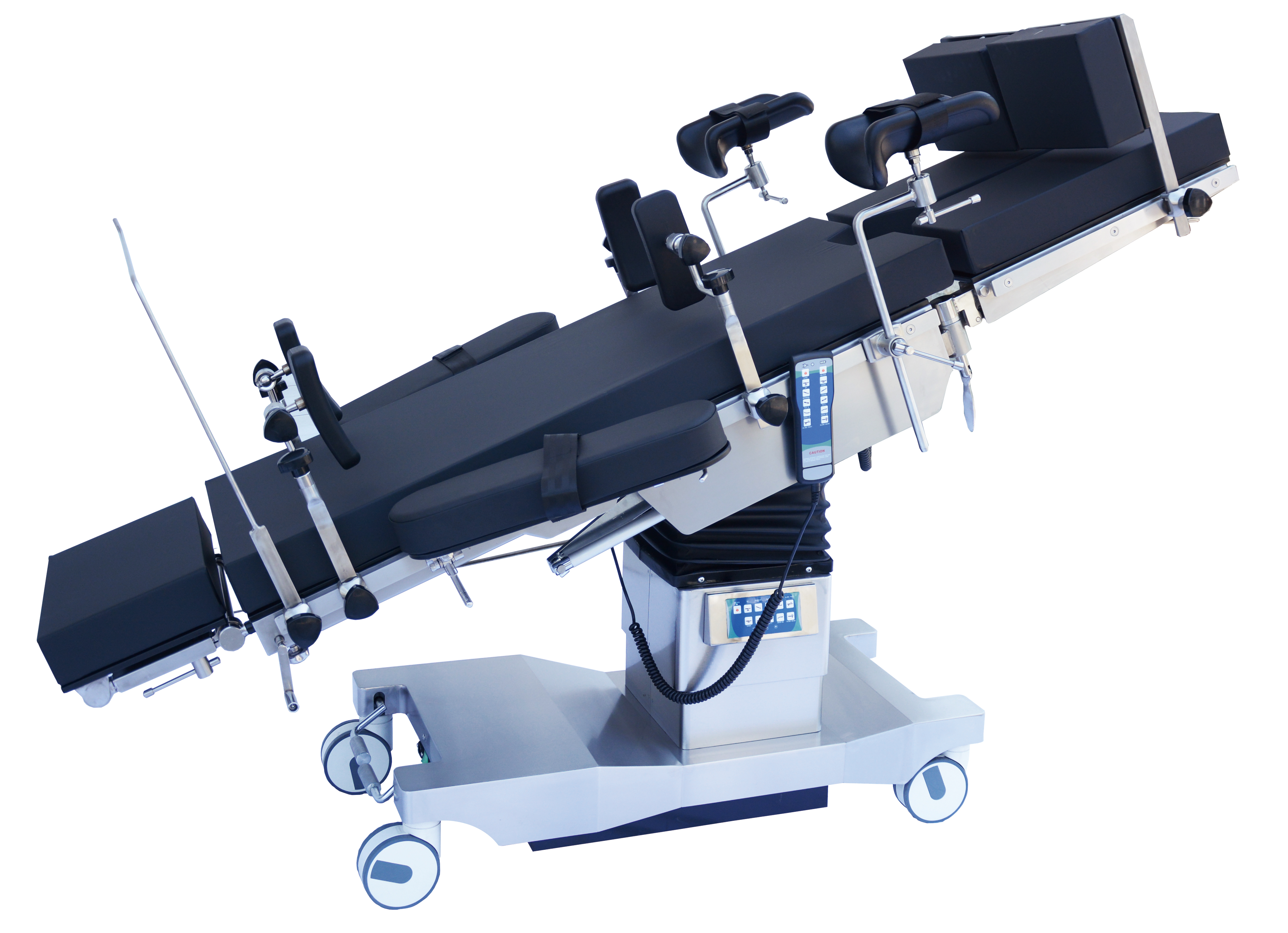

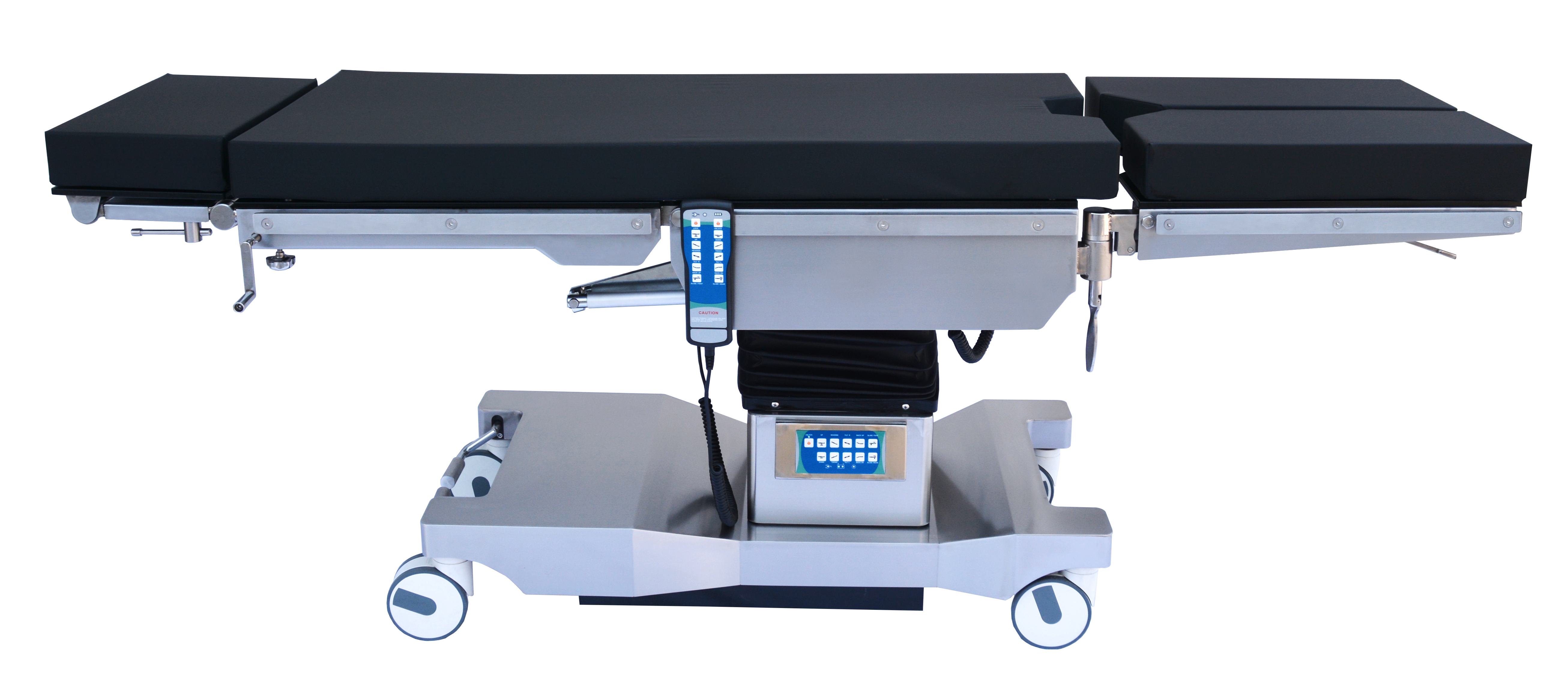

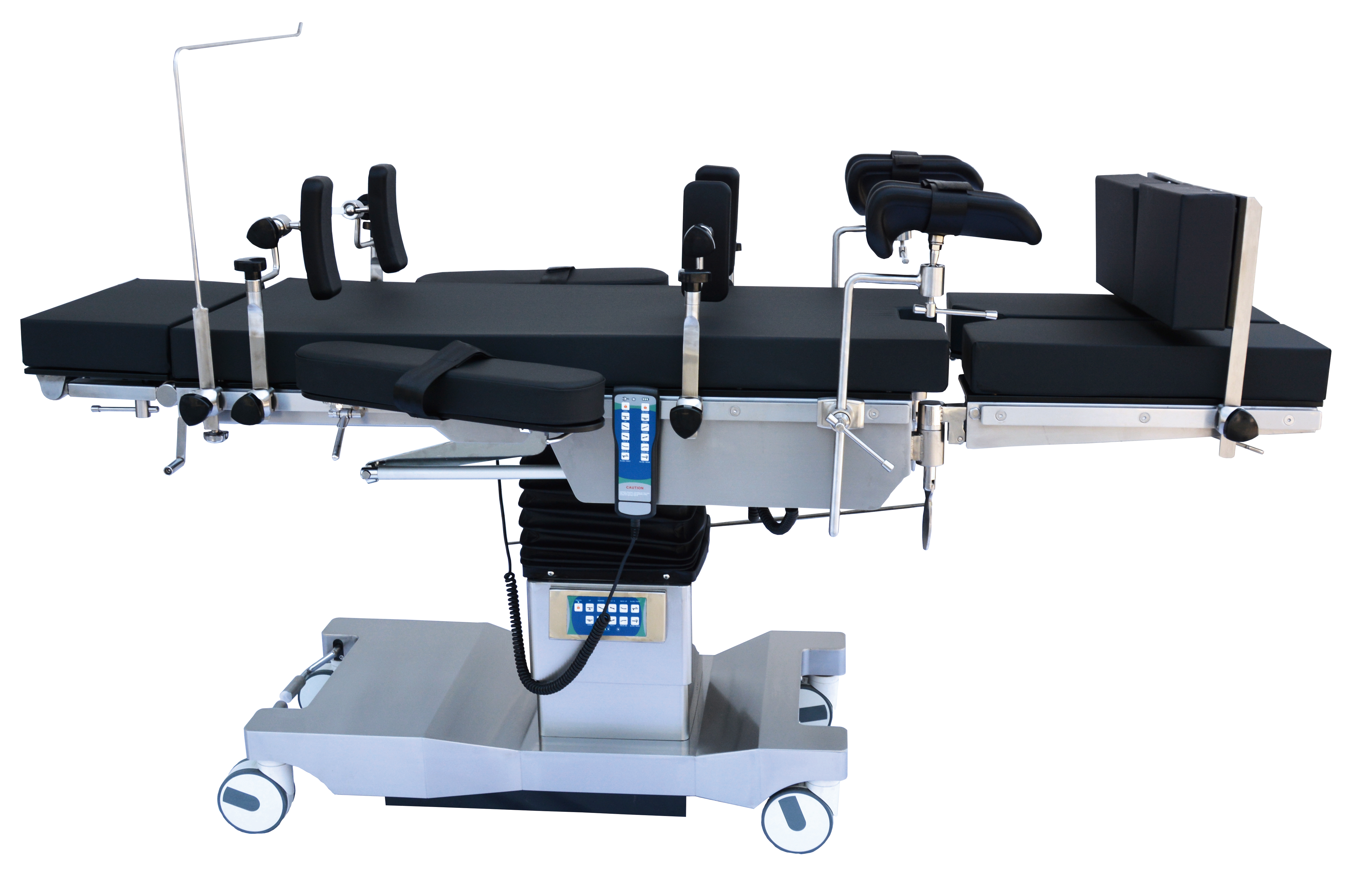

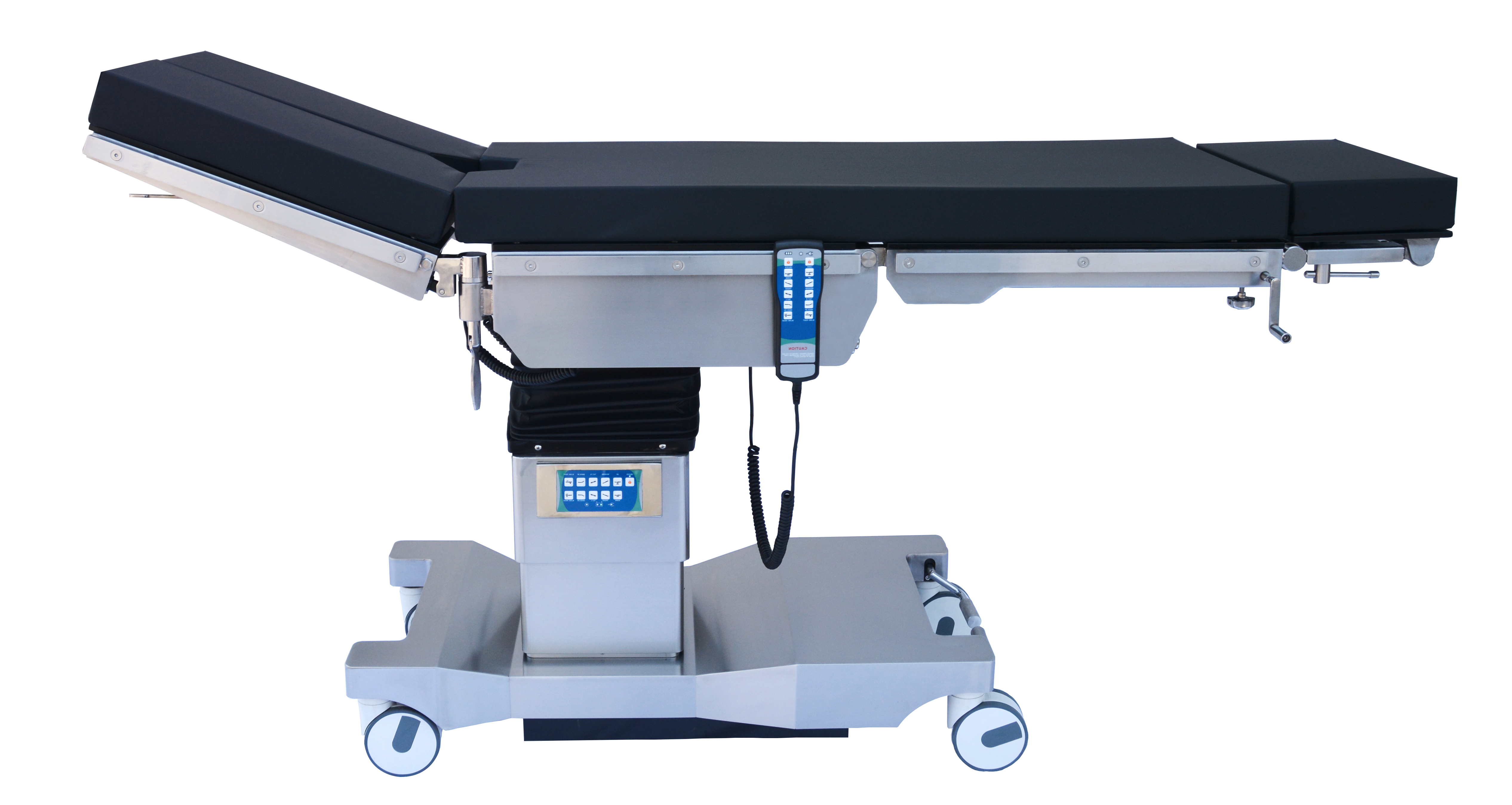

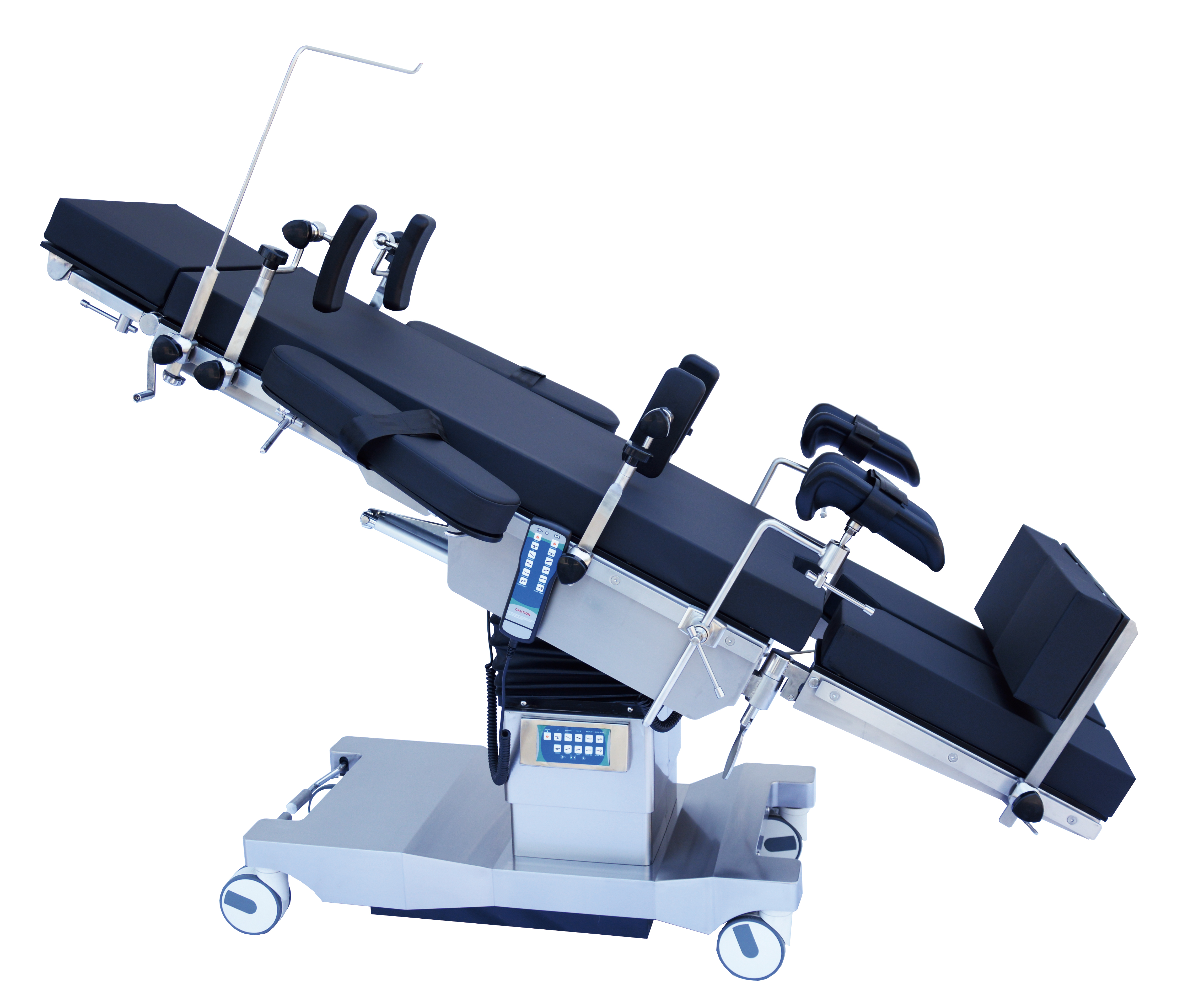

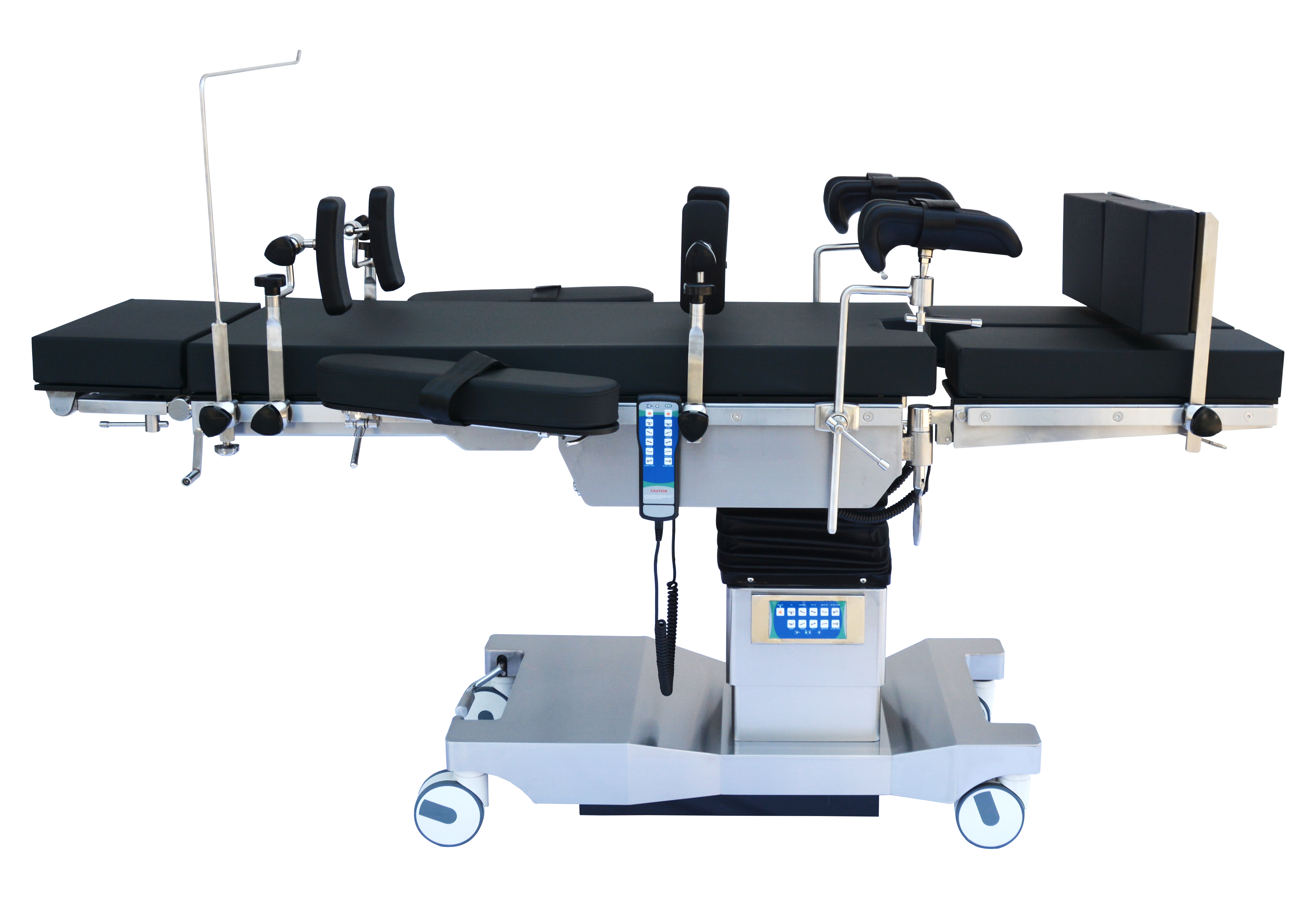

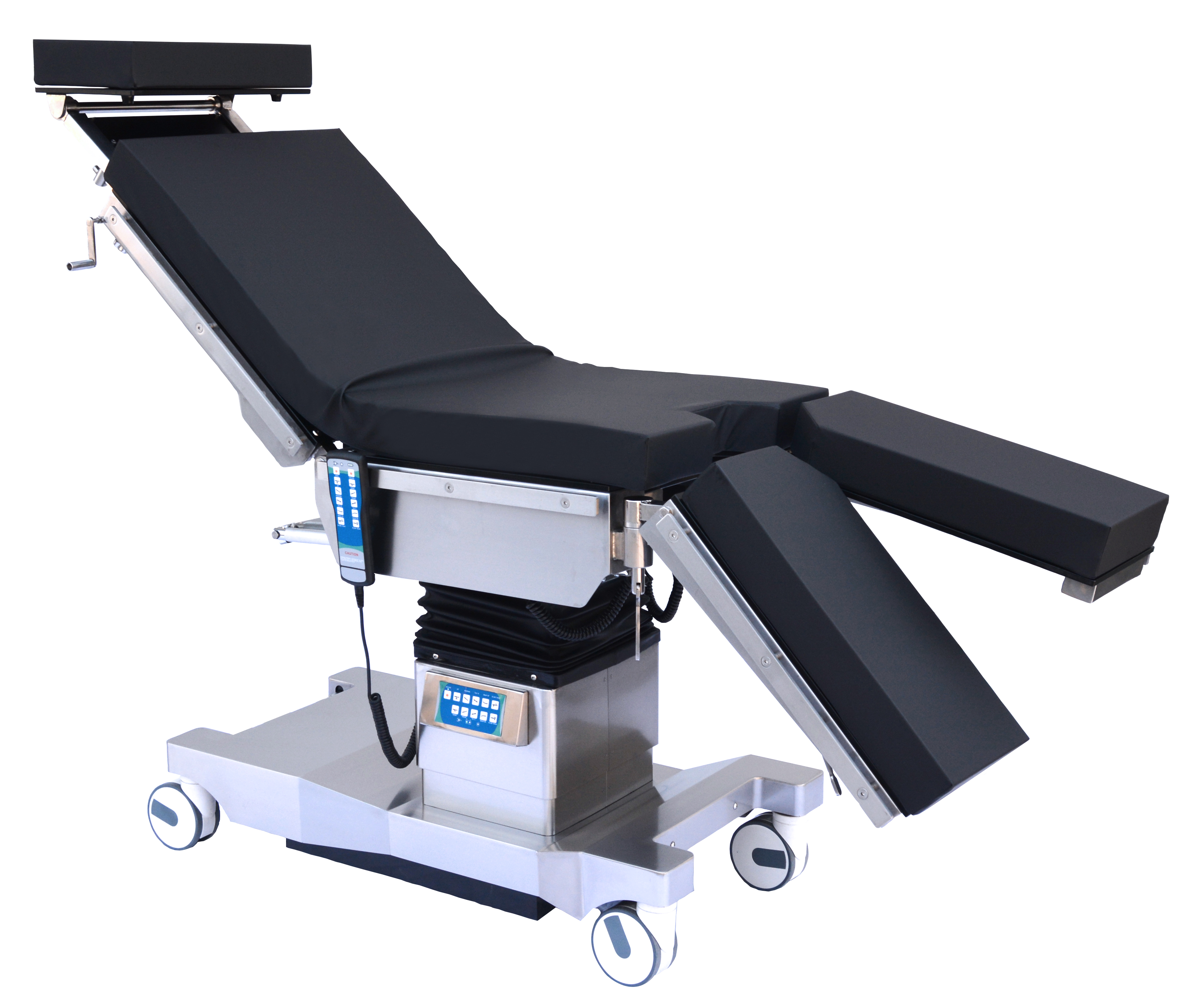

Electric Operating Table

Model YFD005

Length: ≥2100mm

Width: 550mm

Tabletop lowest height: ≤700mm

Elevation range: 300mm

Product Description

YFD005 can withstand even extreme loads in any position. The structure enables it to be adapted to match the size of the patient and in no time at all it can be equipped for any surgical discipline. A longitudinal shift of up 350mm makes the operating table even more versatile.

Engineered for increasingly complex surgical scenes, YFD005 comes with intelligent automatic control system satisfying various demands of general surgeries. Extra wide tabletop, extreme loading system, long horizontal sliding that can be suitable for both X-ray and C-arm. YFD005 is an ideal electric operating table.

• Longitudinal slide up to 350mm for free access to C arm

• Extreme weight load capacity of 250kgs with highest safety and stability

• Memory pad with antistatic,waterproof design

• Standard override panel control makes the control safer

• Battery power for 50-80 operations

Parameter

Reverse Trendelenburg: ≥ 25 °

Trendelenburg: ≥ 25 °

Lateral Tilt (Left And Right): ≥ 15 °

Head plate Up: ≥ 45 °

Head plate Down: ≥ 90 °

Head plate Flexible: ≥ 40 °

Back plate Up: ≥ 80 °

Back plate Down: ≥ 20 °

Leg plate Up: ≥ 15 °

Leg plate Down: ≥ 90 °

Leg plate Outward: ≥ 90 °

Kidney Bridge Elevation: ≥ 120mm

Horizontal Sliding Range: ≥ 350mm

Disposition

Anaesthesia screen: 1 piece

Shoulder support (cushion): 2 piece

Arm support (cushion): 2 piece

Body support (cushion): 2 piece

Leg support (cushion): 2 piece

Foot plate (cushion): 2 piece

Long Fixing Clamp: 2 piece

Fixing Clamp: 7 piece

Controller: 1 piece

Hand-held operator: 1 piece

Mattress: 1 piece

Power line: 1 piece

Packaging and delivery

Packaging: Wooden case

Size: 14074103cm

G./N.W.: 290/240kg
