C260313002 Dynamic DR

Core Overview

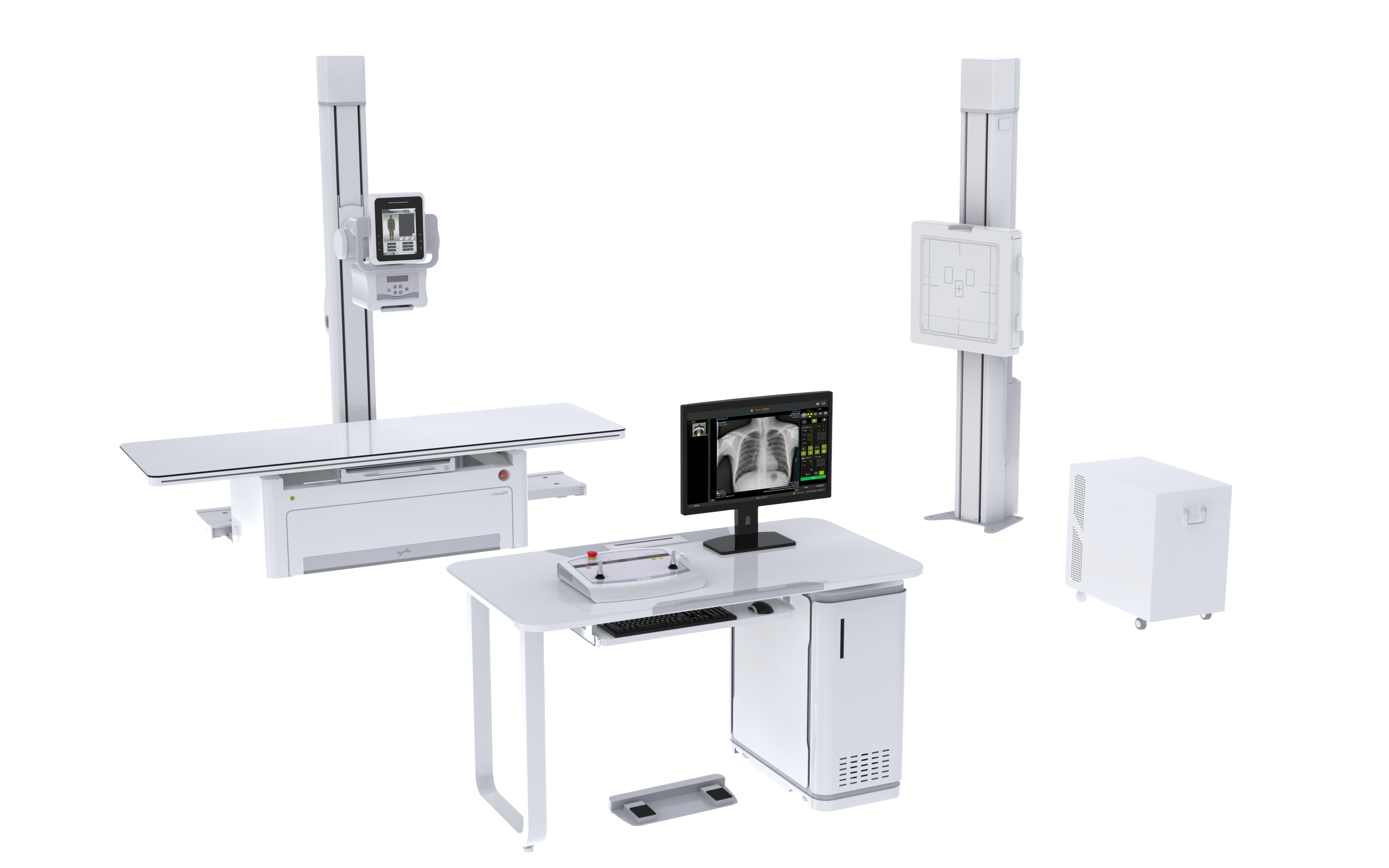

C260313002 Dynamic DR is a high-performance digital motion X-ray system from a professional general radiology equipment one-stop supplier with nearly 20 years of industry experience, domestic mobile product market share leadership for over 10 consecutive years and sales in more than 100 countries/regions. As a Medical X-ray National Standard Designated Unit, the brand has a nearly 40,000 square meter production and office area. This Dynamic DR integrates digital radiography, fluoroscopy and angiography functions, featuring high frame rate imaging, low radiation dose, flexible operation and intelligent interconnection, with multiple configurable components and customized examination solutions, widely applicable to various clinical radiology scenarios and certified by CE and ISO.

Core Product Advantages

1. Multifunctional Integrated Design: Realizes one-machine integration of digital radiography, digital fluoroscopy and digital angiography, with digital spot imaging (DSI) function that can complete high-definition spot imaging in milliseconds for accurate lesion targeting, replacing multiple single-function devices.
2. Superior Dynamic Imaging Performance: Adopts high frame rate dynamic flat-panel detector, supporting 30 fps dynamic image acquisition and 18 million pixel radiography; 17×17" large FOV avoids multiple exposures and reduces radiation dose, with optional FPD to further improve examination efficiency.
3. Flexible & Humanized Operation: Equipped with 10.4-inch touchscreen control panel for easy range selection; supports versatile table movement (fixed/motorized lifting table, minimum 50cm from ground to table surface) and large-angle rotatable X-ray tube for diverse radiography positions; tube can rotate 180° for wheelchair/stretcher patient examination to avoid secondary injury, and has automatic tracking function for quick centering.
4. Low Radiation & Green Environmental Protection: Pioneers intelligent radiation dose monitoring system with DAP dose visualization for assured safety; configured with ionization chamber AEC system that automatically controls mAs and adjusts brightness by body part, simplifying operation; pulse fluoroscopy technology obtains clear images at low doses, with multiple perspective modes, fast exposure, reduced noise and sharpness improvement, effectively protecting doctors and patients from radiation.
5. Rich Professional Measurement & Imaging Functions: Built-in cardiothoracic ratio measurement (for cardiac enlargement evaluation) and spine measurement (for scoliosis diagnosis and postoperative evaluation); optional automatic stitching function for panoramic imaging of full spine/full lower limbs, enabling accurate preoperative and postoperative measurement with one-step radiography for reliable clinical diagnostic basis.
6. Intelligent Cloud Image Interconnection: Adopts high-standard software system for fast image acquisition (3-5 seconds speed conversion, 1-2 seconds faster than similar DR), automatic image processing and output; supports multiple intelligent control modes and pre-view of various examine modes, adapting to outpatient, emergency and physical examination needs; compatible with RIS/PACS systems, realizing cloud image interconnection, telemedicine, network storage and remote diagnosis, with system fault self-diagnosis, fault code display and self-protection functions, and support for remote maintenance.
7. High Configuration & Stable Performance: Equipped with large heat capacity tube, motorized collimator, Bucky stand; each FPD is fitted with a removable anti-scatter grid (for bucky stand and table), with 1m and 1.8m standard SID; optional vertical radiography stand and low profile radiography (35cm minimal distance between X-ray tube and floor) for wider examination coverage.

Key Clinical Application Capabilities

Digital Radiography

General radiography, high kV radiography, oblique position radiography

Digital Fluoroscopy

Chest and abdominal fluoroscopy, foreign body localization and removal

Digital Angiography

Esophagogram, intravenous pyelography, T-tube cholangiogram, salpingography

Specialized Scenarios

Radiography Center, Health Examination Center, Orthopedics and Trauma, Pulmonary Imaging, Gynecology and other clinical departments

Additional Product Features

• Multiple configuration options, supporting customized examination solutions for different medical institutions
• Outstanding radiography and fluoroscopy dual performance, balancing static high-definition imaging and dynamic real-time observation
• Faster workflow continuity and higher overall inspection quality, accelerating clinical radiography speed and improving diagnostic accuracy
• CE and ISO certified, meeting international medical equipment quality and safety standards

Core Product Functions & Clinical Applications

Main Examination Capabilities

1. Digital Radiography: For head, chest, lumbar, abdomen, limbs and other parts, supporting precise radiography (lesion location point film), multi-dimensional oblique radiography, special radiography (standard chest/pneumoconiosis identification) and spine stitching radiography (full spine/lower extremities).
2. Digital Fluoroscopy: For chest, abdominal and other whole-body fluoroscopy, foreign body localization and removal.
3. Digital Angiography: Esophagography, pyelography, salpingography and other contrast examinations.
4. Interventional Operations: Fluoroscopy-guided puncture, bone restoration and other interventional procedures.

Applicable Scenarios

Radiology Department, Medical Center, Diagnostic Center, Health Examination Center, Orthopedics and Trauma Department, suitable for routine X-ray inspection, special part shooting and fluoroscopy-guided interventional operations.

Key Technical Specifications

Power & HF HV Generator System

• Power condition: 380V±38V, 50Hz±1Hz, capacity ≥85kVA, internal resistance ≤0.17Ω
• Generator power: 50KW, inverter frequency 500KHz±20%
• Tube voltage: 40kV-150kV (radiography), 40kV-125kV (fluoroscopy)
• Tube current: 10mA-630mA (radiography); 0.5mA~20mA continuous/5mA~40mA pulse (fluoroscopy)
• mAs range: 0.1mAs-630mAs

X-ray Tube

• Focus: 1.2mm (big)/0.6mm (small), input power 74kW/30kW
• Anode thermal capacity: 220kJ/300KHU, tube total heat capacity: 900kJ/1300KHU
• Rotary anode speed: 8400rpm

Dynamic Digital Flat Panel Detector (FPD)

• Active area: 427mm×427mm (17×17 inch), pixel matrix 3072×3072, pixel pitch 139μm
• Limiting resolution: Min.3.7 line pair/mm, A/D transition 16 bit, energy range 40-150kVp
• Acquisition speed: 30fp/s (real-time dynamic imaging)

Mechanical Structure & X-ray Table

• Table type: 4-way floating with light touch switch + electromagnetic brake, height 550mm, load capacity 200kg
• Mechanical movement range: X-ray tube up-down 1300mm/rotation -90°~90°; pillar longitudinal movement 1500mm/rotation -180°~180°; table longitudinal 1000mm/transverse 260mm
• Filter (Grid): Focusing distance 100cm, grid density 230L/INCH (removable anti-scatter grid)

Control & Workstation

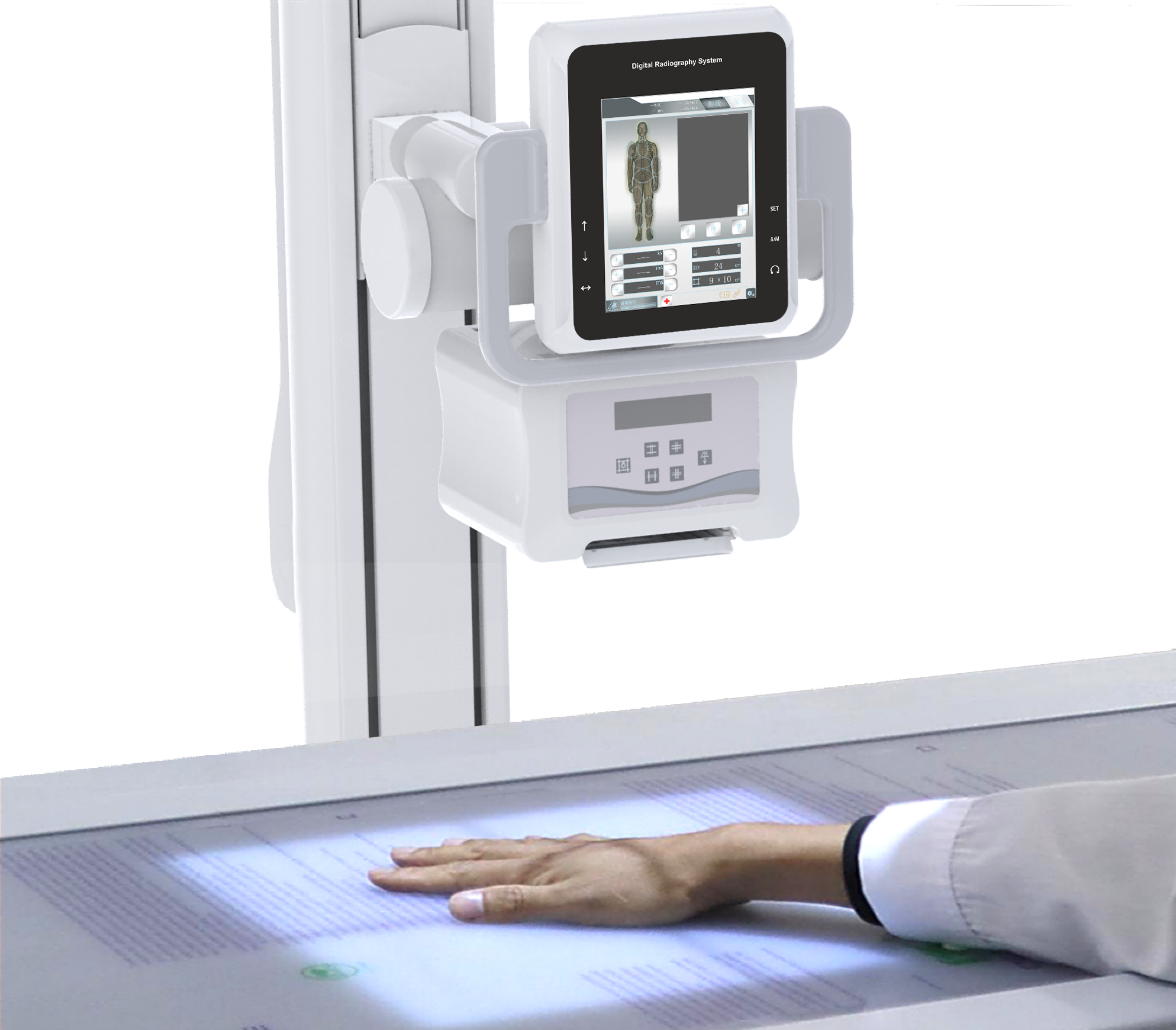

• Table-side control: 10.4 inch touch screen, real-time display of image, SID, exposure parameters, X-beam size, tube rotation angle, etc.
• Workstation: 19inch monitor + computer + joystick remote controller + foot brake control system, with professional image processing software
• Power configuration: Standard AEC (ionization chamber) & DAP (dose monitoring) system

Core Product Advantages

1. High Cost-Effectiveness: One machine replaces independent digital radiography and fluoroscopy equipment, enriches medical services and brings additional business value, suitable for institutions with limited space and budget.
2. Stable & Efficient Performance: 50KW high-power generator ensures high-quality low-dose X-ray source; high-heat-capacity X-ray tube with 8400rpm rotary anode supports long-time continuous work; full digital workflow realizes real-time image display and sharing.
3. Clinically-Oriented Design: Max SID 1.8m for standard chest radiography (suitable for COVID-19 diagnosis); 17×17 inch large FOV dynamic FPD reduces repeat exposure; tube stand can be lowered to 55cm from the ground, meeting diverse positioning needs; high-frequency generator ensures X-ray hardness and stability.
4. Flexible & Precise Operation: Multi-dimensional mechanical movement (tube/pillar/table) supports various shooting positions; motor-driven collimator improves fluoroscopy/angiography accuracy; 4-way floating table with 200kg load capacity adapts to different patients.
5. Intelligent Humanized Control: Table-side 10.4-inch touch screen is synchronized with workstation, supporting pre-view images, emergency inspection (shoot first then register), 3D model positioning demonstration and gravity sensor automatic rotation; tube-FPD synchronous tracking system automatically adjusts irradiation range, with manual backup mode for fault guarantee.
6. Standard High-Value Configuration: Comes with AEC, DAP, high-density filter grid and manual whole spine stitching function as standard; filter grid effectively filters scattered rays to ensure image quality; DAP realizes visualized radiation dose monitoring, ensuring examination safety.

Professional Image Processing Software Functions

1. Basic Operation & Acquisition: Patient registration (regular/emergency), work/exam list management, exposure/perspective parameter setting; rich browsing tools (zoom, rotate, ROI magnification, etc.) and measurement tools (cardiothoracic ratio, distance/angle/spine measurement).
2. Image Output & Management: Report editing/printing, image storage/burning/DICOM printer access; user authority management, hardware/network configuration, quality management and inspection protocol setting.
3. Practical Tools: Text/body part marking, image cropping/deletion, window width/level adjustment, point gray value measurement, advanced image processing, etc.

Additional Intelligent Features

1. Table-side Touch Control System: Supports human graphic body part selection, collimator effective area adjustment, digital display of tube movement parameters, and emergency inspection quick access.
2. Tube-FPD Sync Tracking: Automatic adjustment of X-ray irradiation range according to inspection site; synchronous movement of bucky stand detector and tube for upright examination, with manual synchronous operation backup to ensure work efficiency.
3. Comprehensive Connection Capability: Supports connection with hospital network, RIS/PACS system, realizing image interconnection, remote diagnosis and network storage; the system has fault self-diagnosis, fault code display and self-protection functions, and supports remote maintenance.
