Description

Auto Patternless Lens Edger

CE FDA

New Technologies And Powerful Functions

Simple operation interface provides with accurate operation experience.

Built in 3D Forced Sharp Edge program

Easy get Mini Sharp Edge

Unique 3D forced sharp edge function, with the ratio of the sharp edge adjustable as desired

Forced Sharp Edge Effect: Say Goodbye to the Hassle of Adjusting Machine Level. Multiple Sharp Edge Positions Available to Meet Your Different Lens Material Requirements.

Adapt lenses with more materials and degrees

Easy to operate

Sharp edge precise positioning

Efficient grinding

Optical path without parallax, original shape scanning, more accurate.

3D Forced Sharp Edge Function: Sharp Edge Ratio Can Be Adjusted Freely

Measure the front base curvature of the lens

Input obtained data

Easy implementation of perfect edge shapes

Scan settings interface, 1:1 graphic display

Digital template function, which can adjust and adjust the shape of the lens

Setting and grinding interface, which can achieve standardized and procedural grinding operations

Quick indexing function

Flip and install suction cups for easier operation

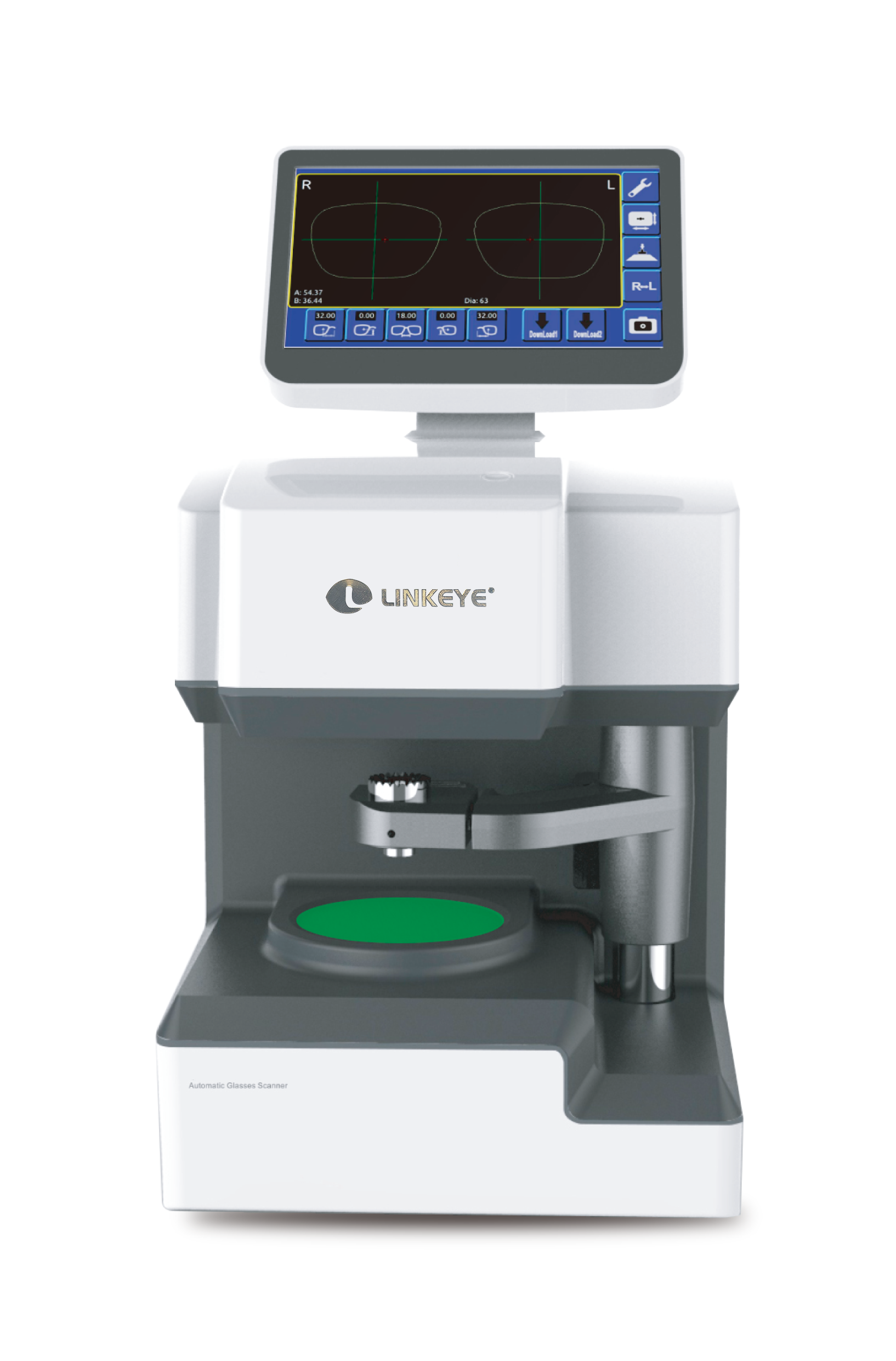

Scan center all-in-one machine

Technical Specifications ALE-1500(3D)

Host Size (LWH): 650550480mm

Packing Size (LWH): 798706673mm

Weight: 60Kg

Power Supply: AC220V/110V 50/60Hz

Electric Power: 500W

Machining Accuracy: Diameter Deviation 0.1mm

Machining Size Range: 22mm~70mm

Axis Adjustment Accuracy: 0.5°

Step Distance of Size Adjustment: 0.05mm

Clamping Pressure: 80~110Kg

Lens Materials: CR39、GL、POLY、H-1、HC

Edge Shape: Bevel, Flat, Bevel Polishing, Flat Polishing

Technical Specifications ST-1200

Host Size: 217232413mm

Packing Size (LWH): 568418365mm

Weight: 10Kg

Power Supply: AC100-240V 50/60Hz

Electric Power: 50W

Light Source Adjustable Range: The radius can be lowered by 6mm

Screen Rotary Angle: 0~130°

Storage: 500 Pairs

Touch Screen: 7 Inch capacitive screen

Quantity of connectable hosts: 2 Sets
