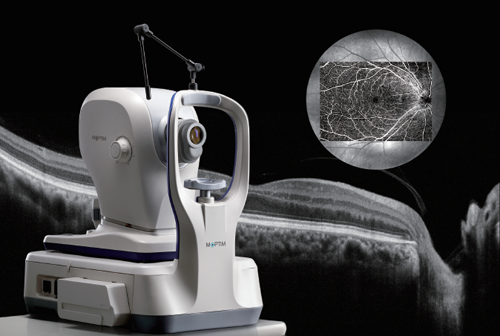

OCT Optical Coherence Tomography Posterior Segment

Item Code: CCE2000
Sold: 100
    Please select the information you wantX
  • choose configuration
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
  • Description
Methodology Spectral domain OCT
Optical source Super luminescent diode (SLD), 840 nm
Scan speed 80,000 A-scans/s
Axial resolution (optical) 5 microns (optical), 3.6 microns (digital)
Transverse resolution 15 microns (optical), 3 microns (digital)
A-scan depth 3 mm
Diopter range - 20 to + 20 diopters
Scan patterns Macular: HD line scan (6 / 12 mm), 3D scan (6 mm x 6 mm), 6-line radial scan, Multi (X-Y: 5 x 5) Disc: 3D scan (6 mm x 6 mm)
 Anterior: HD line scan (6 / 16mm), 6-line radial scan
FUNDUS IMAGING
Methodology Line scanning laser ophthalmoscopy (LSLO)
Minimum pupil diameter 3.0 mm
Field of view 45 degrees

Shipping Information:

G.W: 54kg
