Application

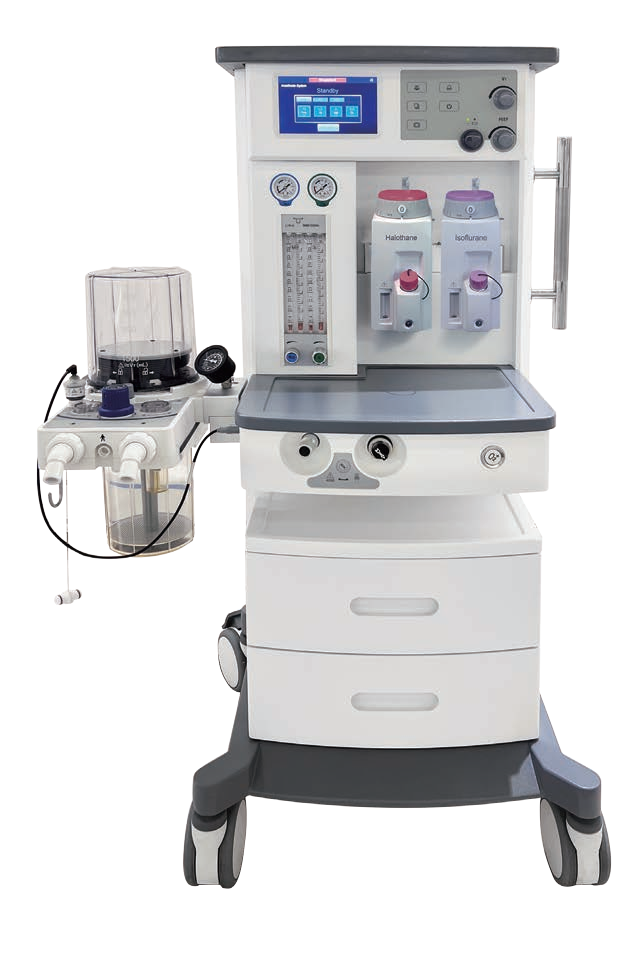

This anesthesia machine is suitable for Intensive Care Units (ICU), operating rooms, anesthesiology departments and other departments. It supports inhalation anesthesia and respiratory management for adults, children and infants. It adopts mature ventilation technology and ergonomic optimized console developed with experienced experts to simplify daily anesthesia workflow.

Feature

‑ 7‑inch TFT LCD screen for displaying ventilation parameters, alarm information and oscillogram.
‑ High‑precision flowmeter to view patient fresh gas flow in real‑time.
‑ Integrated breathing‑circuit design for simple and neat operation.
‑ Volume control and pressure‑limit working modes to fit a wide range of patients.
‑ Vaporizer equipped with temperature, pressure, flow compensation and self‑lock function for continuous safety guarantee.
‑ Multi‑parameter monitoring interface; real‑time pressure‑time and flow‑time oscillogram; high‑precision oxygen concentration detection.
‑ Vital sign monitor and anesthetic gas monitor are optional accessories.
‑ Built‑in ACGO and rapid oxygen supply function for emergency treatment and post‑operation revival.

Safety & Trust Point

‑ Three‑level visual‑audio alarm system with multiple alarm, reminder and protection functions.
‑ Advanced power management, low O₂ pressure alarm and N₂O cut‑off protection.
‑ Cost‑effective product with flexible configuration options, developed by a professional team with over 20‑years industry experience.

TECHNICAL SPECIFICATION

Ventilation mode

IPPV, A/C, SIMV, SIGH, MANUAL

Ventilator parameter range

‑ Flowmeter: O₂ (0 ~ 10 L/min); N₂O (0 ~ 10 L/min)
‑ Rapid oxygen supply: 25 L/min ~ 75 L/min
‑ Tidal volume(Vt): 0, 20 mL ~ 1500 mL
‑ MV: ≥18 L/min
‑ Frequence (Freq): 1 /min ~ 100 /min
‑ I:E: 2:1 (1:0.5) ~ 1:6
‑ PEEP: 0 cmH₂O ~ 30 cmH₂O
‑ Pressure triggering sensitivity (PTr): -20 cmH₂O ~ 20 cmH₂O (Based on PEEP:‑20 cmH₂O ~ 0 cmH₂O)
‑ Flow trigger sensitivity (FTr): 0.5 L/min ~ 30 L/min
‑ SIGH: 0 (off) 1/100 ~ 5/100
‑ Apnea ventilation: OFF, 5 s ~ 60 s
‑ Pressure limit: 20 cmH₂O ~ 100 cmH₂O

Oscillogram

P‑T (pressure‑time), F‑T (flow‑time), P‑V loop (pressure‑volume loop)

Monitoring parameter

‑ Frequence (Freq): 0 /min ~ 100 /min
‑ Tidal volume (Vt): 0 mL ~ 2000 mL
‑ MV: 0 L/min ~ 100 L/min
‑ Oxygen concentration: 15 % ~ 100 %

Alarm and protection

‑ The AC power failure alarm
‑ Internal battery backup low voltage alarm
‑ No tidal volume alarm
‑ High oxygen concentration alarm
‑ Low oxygen concentration alarm
‑ High airway pressure alarm
‑ Low airway pressure alarm
‑ High tidal volume alarm
‑ Low tidal volume alarm
‑ Continuous pressure alarm
‑ Suffocation warning alarm
‑ Oxygen deficit alarm
‑ Fan error alarm
‑ Pressure limit alarm
‑ The maximum limited pressure ≤12.5 kPa

Working condition

‑ Gas source: O₂ N₂O / O₂ AIR
‑ Pressure: 280 kPa ~ 600 kPa
‑ Voltage: 100 ~ 240 V
‑ Power frequency: 50/60 Hz

Wooden case packing size

‑ Wooden case packing size: L 790 * W 740 * H 1460 mm
‑ G.W.: 118 KG; N.W.: 66 KG

Manufacturer: China Care Medical Equipment Co., Ltd. Address: Room B101, Zhongbang Business Building, No. 87 Puxing Road, Tianhe, Guangzhou, China Web: www.chinacaremedical.com
