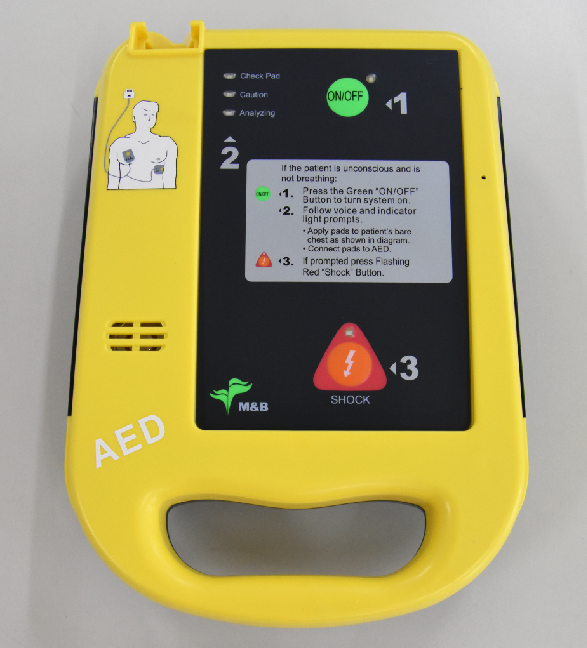

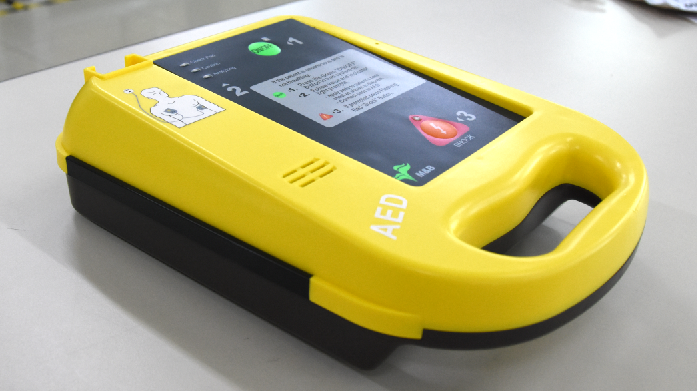

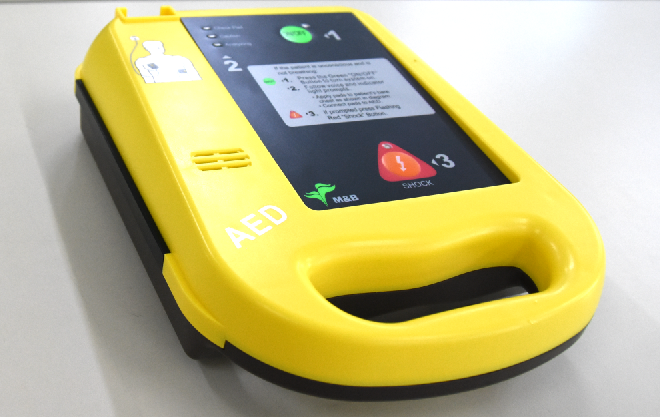

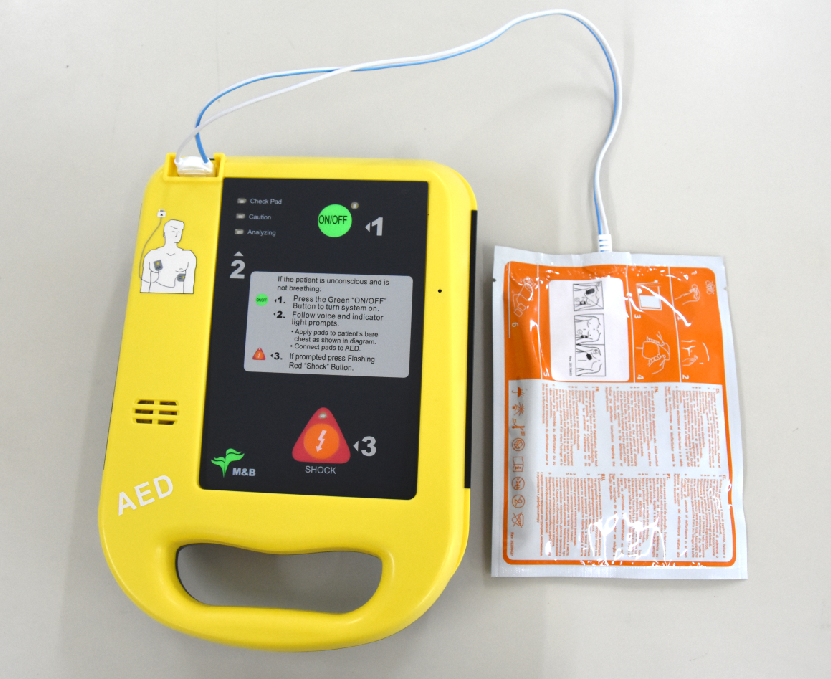

- Product name:Portable Biphasic AED Defibrillator
- Product code:CCD-AED7000
Out of stock. Request a quote.
Request a Quote
Packaging Specifications
Core Parameters
Description
Specifications: 1.three-step defibrillation process2.two-button operation3.extensive voice and visual prompts for the operator4.biphasic energy output5.lock-out protection to prevent inadvertent defibrillationBattery:
| Category | Specification |
| Part No | CR123A-4x2 |
| Non-rechargeable | 12V d.c. 2.8Ah |
| Capacity | 100 discharges at 200 Joules or 120 discharges at 150 Joules |
| Shelf Life (25℃±15℃) | 5 years Physical: |
| Category | Specification |
| Dimensions | 303 x 216 x 89 mm |
| Weight | 2.0 kg |
| Operating Temperature | 0℃ to 40℃ |
| Operating Humidity | Relative humidity between 30% and 95% (non-condensing) |
| Storage Temperature(without battery) | -20℃ to 55℃ |
| Storage Humidity(without battery) | Up to 93% (non-condensing) Electrical Isolation: |
| Category | Specification |
| Power | Unit operates on internal battery only |
| External Electrical | No external devices are attached to the unit |
| Risk Current Category | Internally powered equipment with defibrillator-proof BF type patient applied part (as per definition of IEC 60601-1 standard) |
