Product info

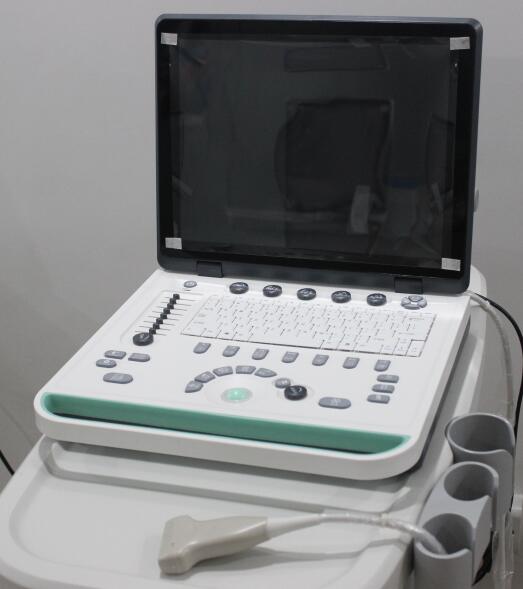

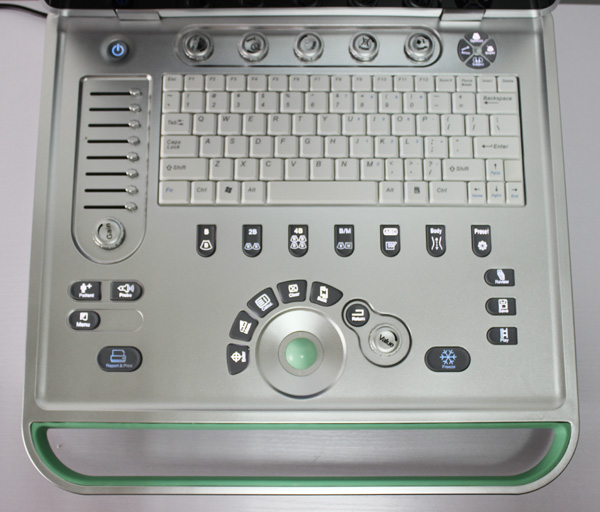

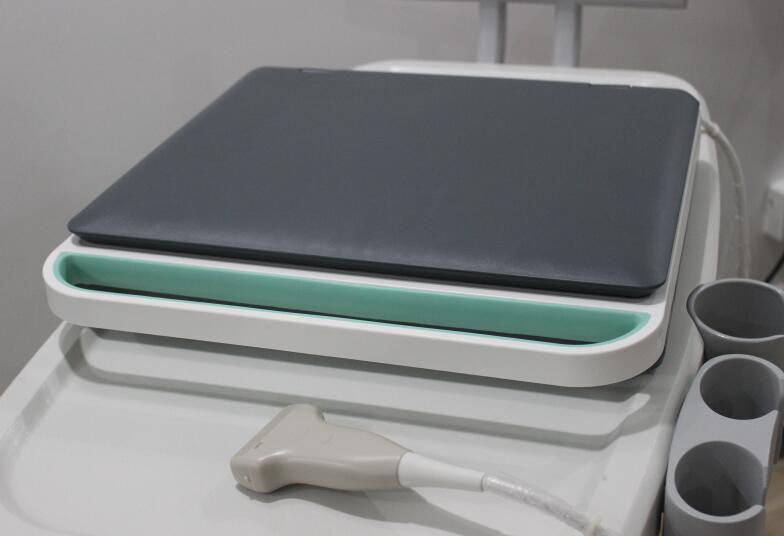

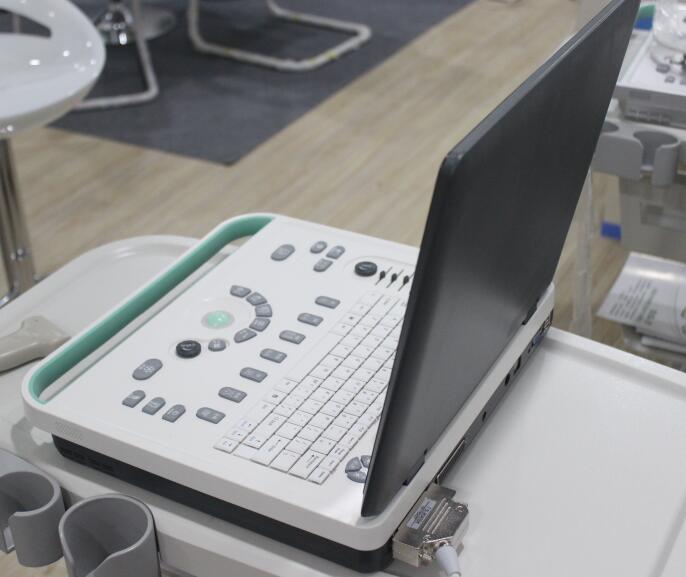

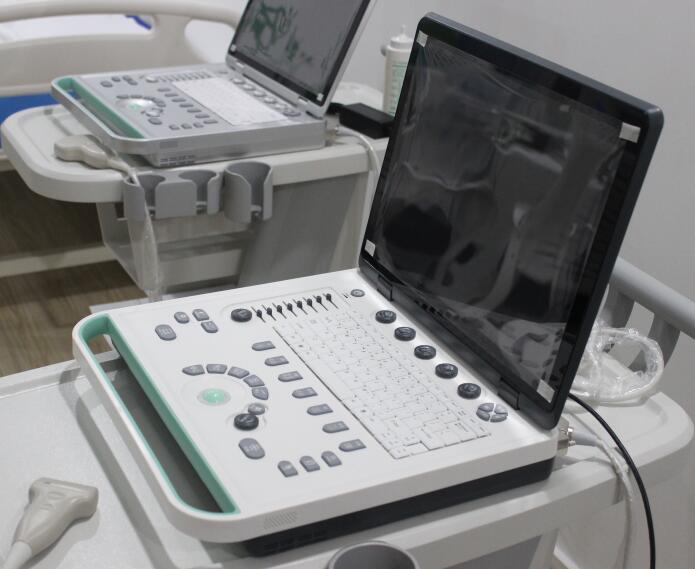

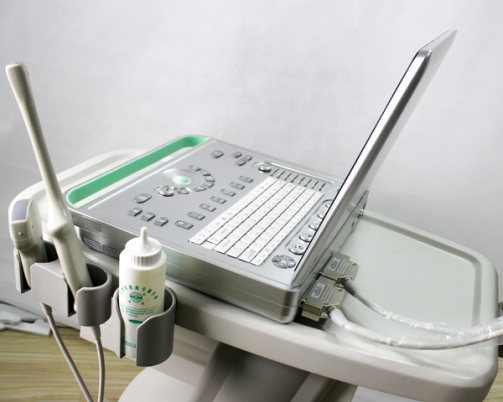

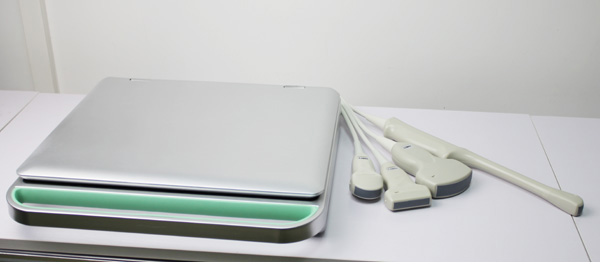

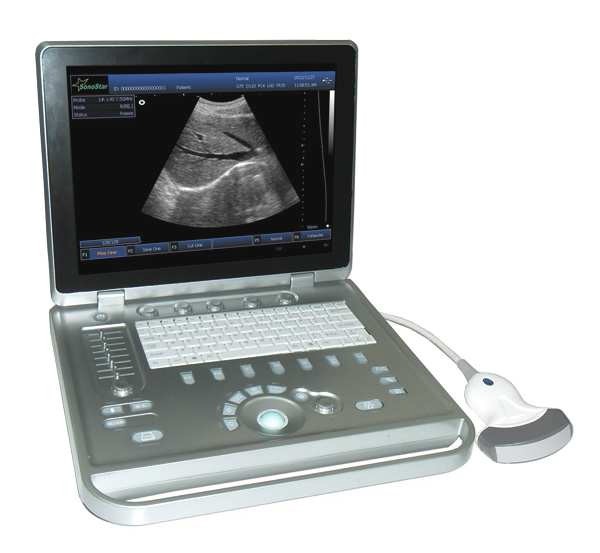

- Product name:PC based Multi Language Laptop Portable B Ultrasound Scanner
- Product code:CCB-SS9
Out of stock. Request a quote.
Request a Quote
Packaging Specifications
Core Parameters
Description
Portable Ultrasound Scanner Specification
Standard Configuration
- 1 main host
- 1 power adapter
- 1 aluminum trunk
- Convex Probe (included)
Core Features
- 15-inch LED screen
- Slim, lightweight design
- Dual probe connectors
- Full digital imaging technology for crystal-clear images
- Built-in 3D image function
- PC-based platform with abundant functions
- Detailed report editing capability
- Powerful image management system
- Large storage capacity for images and cine loops
- Saves both images and videos
- Supports DICOM display and transfer
- Compatible with laser/inkjet printers
- Abundant calculation functions with selectable formulas
- Preset inspection parameters to save setup time
- Built-in rechargeable battery (up to 5 hours runtime)
- Multi-language support (English, French, German, Spanish, Russian, Italian, Portuguese, etc.)
- Durable aluminum trunk packaging
Technical Specifications
表格
| Item | Details |
|---|---|
| Max Scanning Depth | 250mm |
| Multi-frequency | 5-segment adjustable |
| Cine Loop | Up to 1024 frames |
| Scanning Modes | B, 2B, B/M, M, 4B, 9B, ZOOM |
| Zoom | 10-level (1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0) |
| Gray Scale | 256 levels |
| Image Processing | Pre/post-processing, dynamic range, frame rate, line average, edge enhancement, B/W inversion, gray scale/contrast/brightness/γ adjustment |
| Gain | 0-100dB adjustable; 8-segment TGC with separate B/M control |
| Display | 15-inch color LED screen |
| Storage | Hard disk or USB disk (supports image/video saving in AVI/SWF format) |
| Output | USB, VGA, video port; supports laser/inkjet/video printers |
| Battery Life | Up to 5 hours |
| Dimensions | 362mm × 340mm × 60mm |
| Weight | ~4.8kg |
Measurement & Calculation
- B Mode: Distance, circumference, area, volume, angle, ratio, stenosis, profile, histogram
- M Mode: Heart rate, time, slope, stenosis
- Gynecology: Uterus, cervix, endometrium, L/R ovary
- Obstetrics: Gestational age, fetal weight, AFI
- Cardiology: LV, LV function, LVPW, RVAWT
- Urology: Transition zone volume, bladder volume, RUV, prostate, kidney
- Small Parts: Optic, thyroid, jaw and face
- Veterinary:
Optional Accessories
- Probes:
- 3D function upgrade
- Mobile trolley
- Printer options:
