Summary of CCM‑I9 Patient Monitor

Product Overview

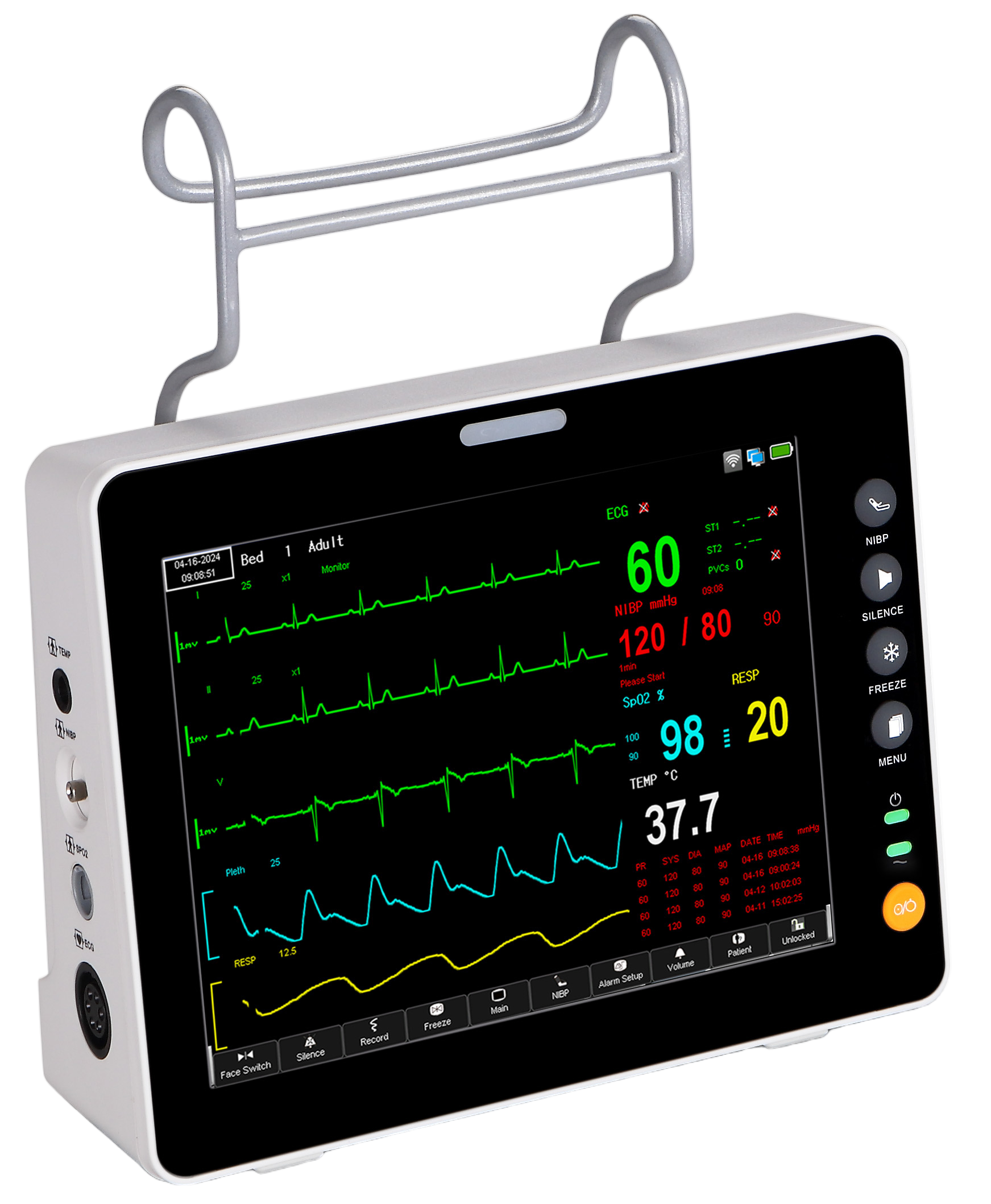

CCM‑I9 is a compact multi‑parameter patient monitor with an 8‑inch touch‑screen color TFT‑LCD. It supports AC‑DC uninterrupted monitoring, anti‑defibrillation and anti‑electrosurgical‑interference performance for adult, pediatric and neonatal patient monitoring in various clinical settings.

Main Features

1. Display & Analysis Functions
   8‑inch high‑resolution touch screen; multiple display modes: standard, large‑font, OxyCRG, dynamic trend and multi‑lead ECG.
   Provides 13‑types arrhythmia analysis, real‑time ST‑segment analysis, pacemaker detection and 15‑sets drug‑dose calculation. Anti‑ESU and anti‑defibrillator interference. SpO₂ supports weak‑signal measurement. Respiration measurement by RA‑LL / RA‑LA impedance method.
   Supports ten languages: Chinese, English, Russian, Spanish, Turkish, Portuguese, Korean, French, German, Italian. Equipped with heartbeat pitch tone.
2. Measuring Parameters
   ‑ Standard：ECG, NIBP, SpO₂, TEMP, PR, RESP
   ‑ Optional：EtCO₂, WIFI, HDMI interface, mobile trolley
3. Data Storage & Networking
   ‑ Trend review: short‑term 2‑hour, long‑term 360‑hour; waveform storage for 6 hours; stores 1000 NIBP records and 120 alarm events.
   ‑ Standard wired network for central monitoring system connection; optional WIFI to realize data transmission and printing.
4. Power & Physical
   ‑ AC adapter:100‑240V AC; built‑in 14.8V 2200mAh lithium‑ion battery. Runtime＞4 hours (25℃, NIBP every 15 min); charging time:4 hours.
   ‑ Dimension: 212×173×75 mm; net weight:655 g.
   ‑ Operating environment: 5‑40℃; storage & transport:‑40‑70℃.

Core Technical Specifications

‑ ECG: 3‑lead /5‑lead optional; heart‑rate: adult 15‑300 bpm, pediatric/neonate 15‑350 bpm
‑ RESP: 7‑120 BrPM, asphyxia alarm 10‑40 s
‑ NIBP: Oscillometric principle; Manual / Auto / STAT mode; dedicated pressure range & over‑pressure protection for adult / pediatric / neonate
‑ SpO₂: 0‑100 %, accuracy ±2 % (70‑100 %)
‑ TEMP: Single‑channel, measuring range 0‑50℃

Accessories

Standard parameter cables are included; optional accessories: EtCO₂ module, WIFI, HDMI, mobile trolley.
