Summary of CCM‑I7 Handheld Patient Monitor

Product Overview

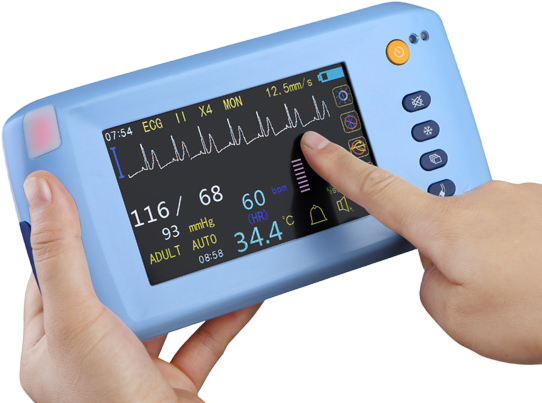

CCM‑I7 is a compact palm‑sized non‑invasive patient monitor powered by AC adapter or built‑in rechargeable lithium‑ion battery. It supports adult, pediatric and neonate monitoring, suitable for operating room, ICU, clinic, emergency, ambulance transport and home‑care scenarios.

Main Features

1. Display & Operation: 5‑inch color TFT‑LCD touch screen; big‑font display mode; adjustable backlight; visual‑audible alarms including sensor‑disconnection alert. Equipped with support bracket for fixation.
2. Parameters Configuration
   ‑ Standard：ECG, NIBP, SpO₂, TEMP, PR, RESP, Bluetooth
   ‑ Optional：EtCO₂, USB data export to PC for review, save and print
3. Data management: Stores and reviews up to 3888 sets of trend‑graph / trend‑list data; Bluetooth upload data to Android mobile devices; supports long‑term monitoring and sleep‑monitoring mode.
4. Power supply: Built‑in 3.7V 7200 mAh lithium‑ion battery; continuous runtime up to 15 hours (25 ℃, NIBP every 15 minutes); charging time 10 hours; compatible with 100‑240V AC power supply.
5. Physical & environment: Dimension 209×104×47.5 mm; net weight 655 g. Operating temperature:0‑45 ℃; storage‑transport temperature:‑25‑85 ℃.

Core Technical Specifications

‑ ECG: 5‑lead; heart‑rate range 20‑300 bpm
‑ RESP: RA‑LL / RA‑LA impedance measurement, range 7‑120 BrPM, asphyxia alarm 10‑40 s
‑ NIBP: Oscillometric principle; Manual/Auto/STAT mode; separate measuring range and over‑pressure protection for adults and pediatrics
‑ SpO₂: 0‑100 %；accuracy ±2 % (90‑99 %), ±3 % (70‑89 %)
‑ TEMP: 0‑50 ℃, accuracy ±0.1 ℃
‑ Optional EtCO₂: measuring range 0‑150 mmHg

Accessories

Standard measuring cables are included; optional items: EtCO₂ module, USB communication function.
