Summary of CCM‑I8 (JR2000B) Patient Monitor

Product Overview

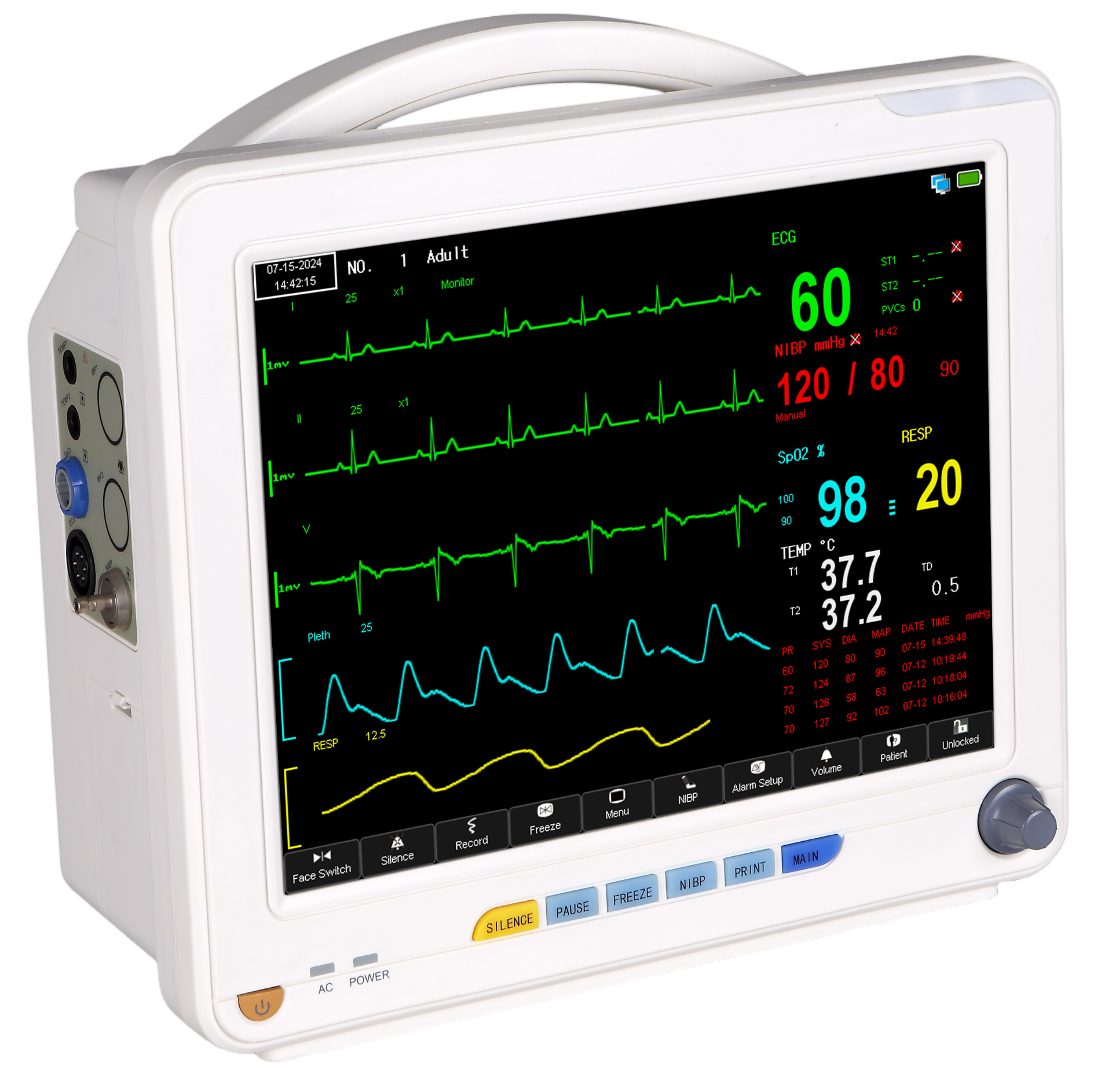

JR2000B is a multi‑parameter patient monitor equipped with a 12.1‑inch touch‑screen color TFT‑LCD. It supports AC‑DC uninterrupted monitoring, multi‑language operation, anti‑defibrillation and anti‑electrosurgical interference, suitable for comprehensive patient vital‑sign surveillance in hospital departments.

Main Features

1. Display & software functions
   12.1‑inch high‑resolution touch‑screen; multiple display modes: standard, large‑font, OxyCRG, dynamic trend, multi‑lead ECG.
   Supports 13‑type arrhythmia analysis, real‑time ST‑segment analysis, pacemaker detection, 15‑sets drug‑dose calculation. Built‑in anti‑ESU and anti‑defibrillator interference capability.
   Multi‑language: Chinese, English, Russian, Spanish, Turkish, Portuguese, Korean, French, German, Italian. Heart‑beat pitch tone available.
2. Measurement parameters
   ‑ Standard：ECG, NIBP, SpO₂, TEMP, PR, RESP
   ‑ Optional：2‑channel IBP, EtCO₂, built‑in printer, WIFI
   ‑ Respiration adopts RA‑LL / RA‑LA impedance method; SpO₂ supports weak‑signal measurement.
3. Data storage & networking
   ‑ Trend review: short‑term 2‑hour, long‑term 360‑hour; waveform storage up to 6 hours; 1000 groups NIBP records; 120 groups alarm events.
   ‑ Wired network (standard) / optional WIFI for connecting to central monitoring system; supports data & waveform transmission and printing.
4. Power supply
   ‑ AC adapter: 100‑240V AC; built‑in 14.8V /2200mAh lithium‑ion battery.
   ‑ Battery runtime＞4 hours (25℃, NIBP every 15 min); charging time 4 hours.
5. Physical & environmental
   ‑ Dimension:305×290×150 mm, net weight:3 kg
   ‑ Working temperature:5‑40℃; storage‑transport:‑40‑70℃

Key Technical Specifications

• ECG: 3‑lead /5‑lead selectable; heart‑rate range: adult 15‑300 bpm, pediatric/neonate 15‑350 bpm
• RESP: 7‑120 BrPM, asphyxia alarm 10‑40 s
• NIBP: Oscillometric mode; manual / auto / STAT measurement modes; separate adult / pediatric / neonate pressure ranges with over‑pressure protection
• SpO₂: 0‑100 %, accuracy ±2 % within 70‑100 %
• TEMP: Dual‑channel, 0‑50 ℃ resolution 0.1 ℃

Accessories

Standard accessories include patient cables for standard parameters; optional items: IBP module, EtCO₂ module, printer, WIFI module.
