Summary of Ophthalmic A/B Scanner

Product Overview

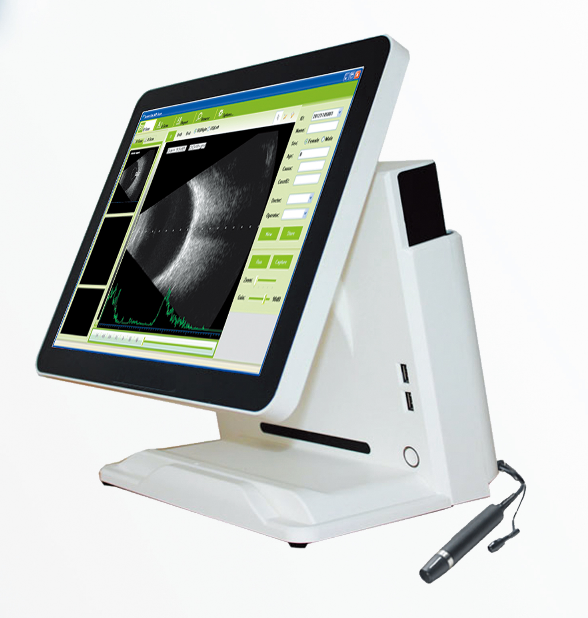

This all‑in‑one portable ophthalmic A/B ultrasound scanner is equipped with a 15‑inch LED touch screen and supports battery‑powered operation. It integrates image capture, patient database and report‑editing functions. It is used for intraocular disease diagnosis and ophthalmic biometry for intraocular lens (IOL) calculation.

Clinical Functions

‑ B‑Scan: Supports normal, vitreous‑enhancement and retina‑observation modes. It visualizes the position, shape and scope of ocular lesions as well as relationships with surrounding tissues. It diagnoses vitreous opacity, retinal detachment, ocular fundus tumours and other eye disorders. B+B dual‑scan mode is available.
‑ A‑Scan: Performs biometric measurements: axial length (AXL), anterior‑chamber depth (ACD), lens thickness and vitreous measurements. It computes IOL dioptre power. Multiple eye‑condition modes: contact / immersion measurement; Normal, Dense Cataract, Aphakic, Pseudophakic (PMMA, Acrylic, Silicone). Supports SRK‑II, SRK‑T IOL calculation formulas.

Main Technical Specifications

‑ Display: 15‑inch LED touch screen, all‑in‑one portable unit, battery‑operable.
‑ A‑Scan: electrical accuracy 0.0375 mm; calculates average value and standard deviation for measured segments; handheld probe, compatible with immersion setup or slit‑lamp mounting.
‑ B‑Scan: 12.5 MHz sector probe; clinical resolution 0.1 mm; adjustable zoom and gain; 256‑level grayscale; variable‑gain control; B+B scan mode.
‑ Built‑in modules: image capture, patient database, report editor.

Manufacturer: China Care Medical Equipment Co., Ltd. Address: Room B101, Zhongbang Business Building, No. 87 Puxing Road, Tianhe, Guangzhou, China Website: www.chinacaremedical.com
