- Product name:Neonatal Jaundice Treatment Lamp
- Product code:CCI-XHZ
Out of stock. Request a quote.
Request a Quote
Packaging Specifications
Core Parameters
Description

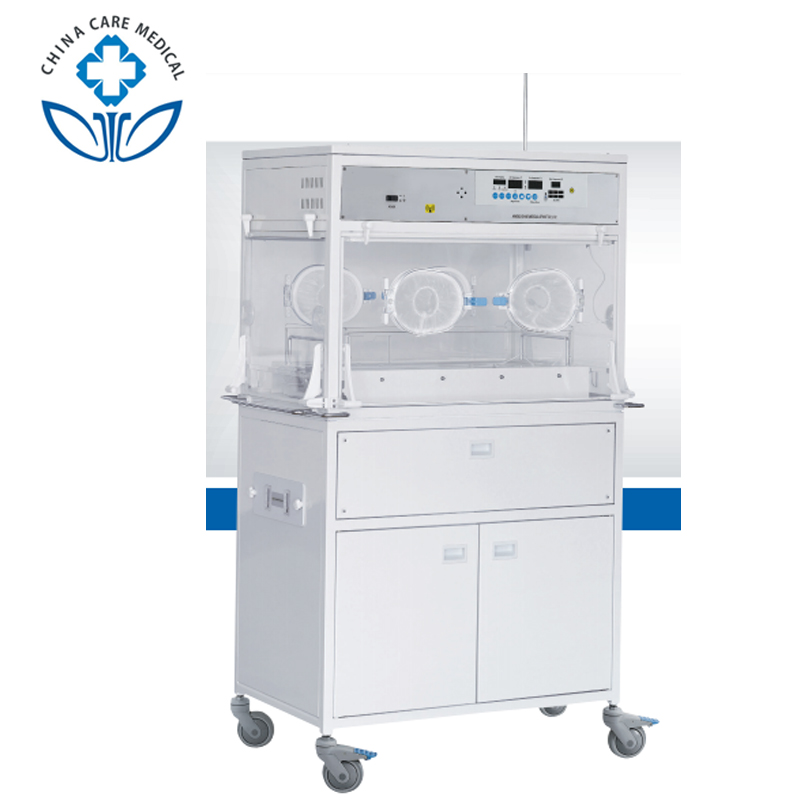

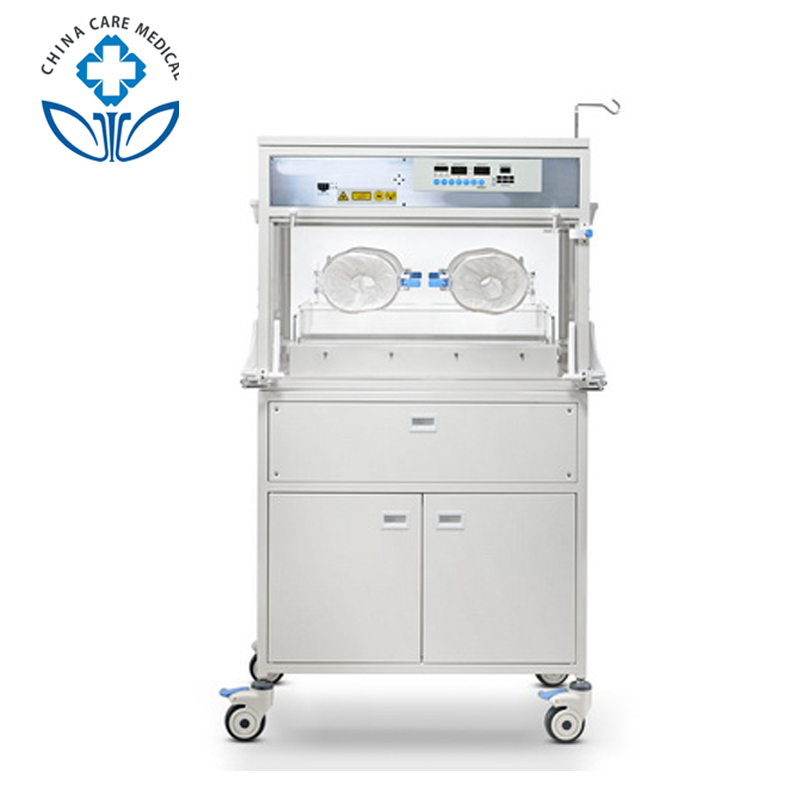

Neonate Bilirubin Phototherapy Equipment
This integrated neonate bilirubin phototherapy equipment combines an incubator with dual phototherapy systems (upper and nether cases), providing a controlled environment for effective hyperbilirubinemia treatment. It features microcomputer control, dual light source options, and a range of safety and monitoring functions.
Brief Introduction
- Control Mode: Baby mode control by micro-computer for precise operation.
- Alarm System: Failure alarm indication for over-temperature, sensor failure, fan failure, and check alarms.
- Dual Phototherapy:
- Timer Function: Built-in timer for phototherapy duration.

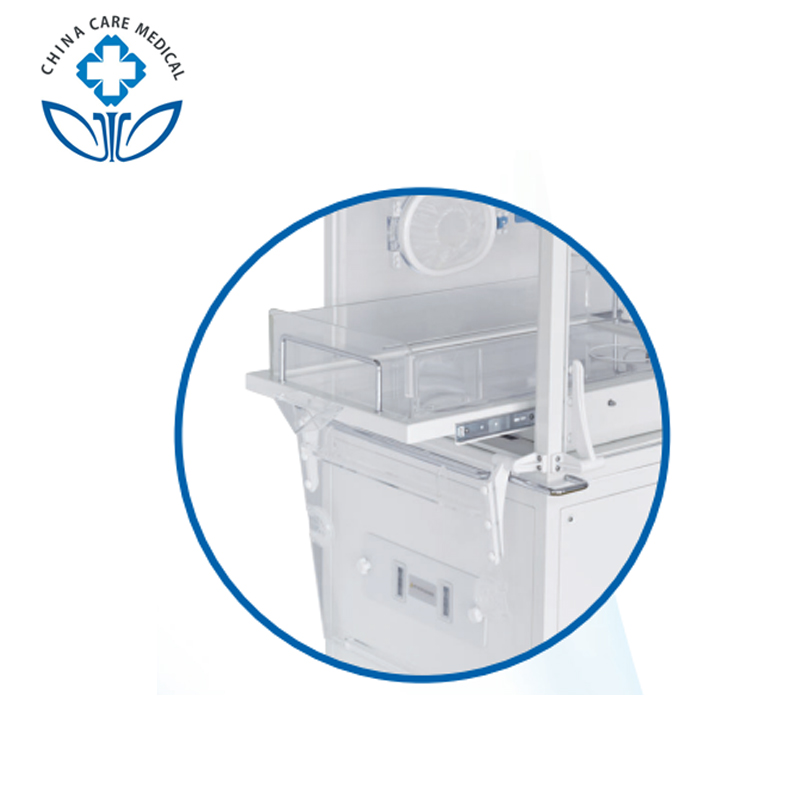

- Bassinet: Can be pulled out from the side door for easy access.
- Low Noise: Equipped with a low-noise DC motor.
- Optional Sensor: Disposable skin temperature sensor available as an option.
Standard Configuration
- Above Case: Includes above lamp, controller, and infant bed.

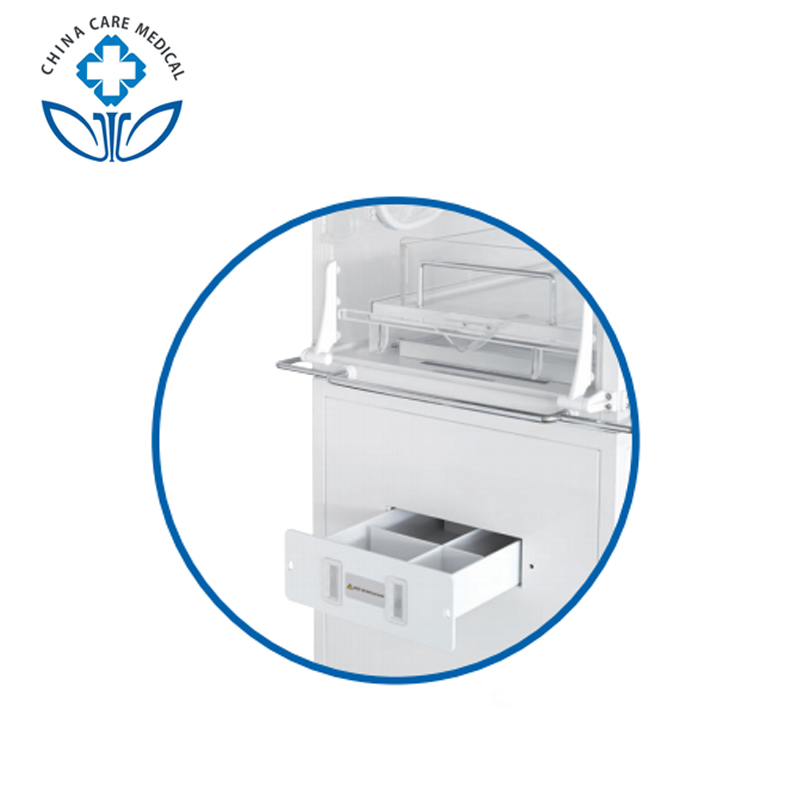

- Nether Case: Includes nether lamp and cabinet.
- Standard Accessories: Skin temperature sensor, I.V. Pole.
Optional Configuration

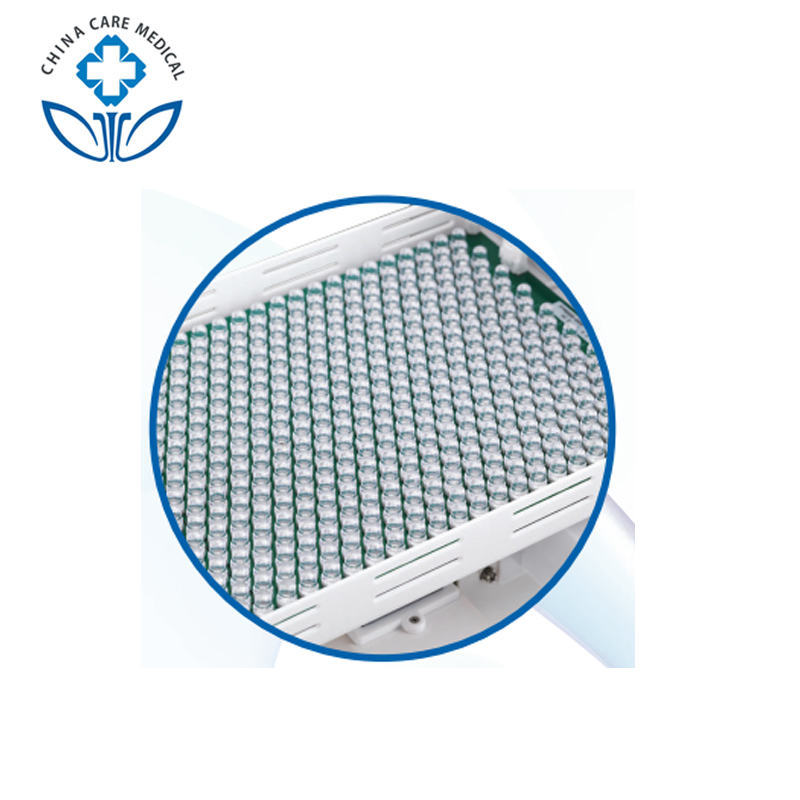

- Blue LED as upper case light source.
- Disposable skin temperature sensor.
| Item | Details |
|---|---|
| Power Requirement | AC220V–230V/50Hz or AC110–120V/50–60Hz, 600VA |
| Control Mode | Air mode and baby mode controlled by micro-computer |
| Temperature Control Range | 25°C–34°C |
| Skin Temp Sensor Display Range | 5°C–65°C |
| Displayed vs Actual Value Correlation | ≤0.8°C (stable temperature) |
| Skin Temp Sensor Accuracy | ≤0.2°C |
| Bed Temp Uniformity | ≤2.0°C |
| Noise Level (Above Bed) | ≤55dB(A) |
| Failure Alarms | Over-temperature, Deviation, Sensor failure, Fan failure, Check alarm |
| Total Irradiance (Above Case) | ≥1.5mW/cm² (blue fluorescent lamp); ≥2.0mW/cm² (Blue LED) |
| Total Irradiance (Nether Case) | ≥3.0mW/cm² (Blue LED) |
| Average Bilirubin Radiation (Above Case) | ≥1.4mW/cm² (blue fluorescent lamp); ≥1.5mW/cm² (Blue LED) |
| Average Bilirubin Radiation (Nether Case) | ≥2.5mW/cm² (Blue LED) |
| Irradiance Uniformity | >0.4 |
| Dominant Blue Light Wavelength | 400nm–550nm |
Environmental Requirement
- Operating Range: 18°C–28°C
- Ambient Air Movement Rate: <0.3m/s
Product Packaging
- Package: Main body case and cabinet are packed into separate cartons.
- Dimensions:
- Gross Weight:
