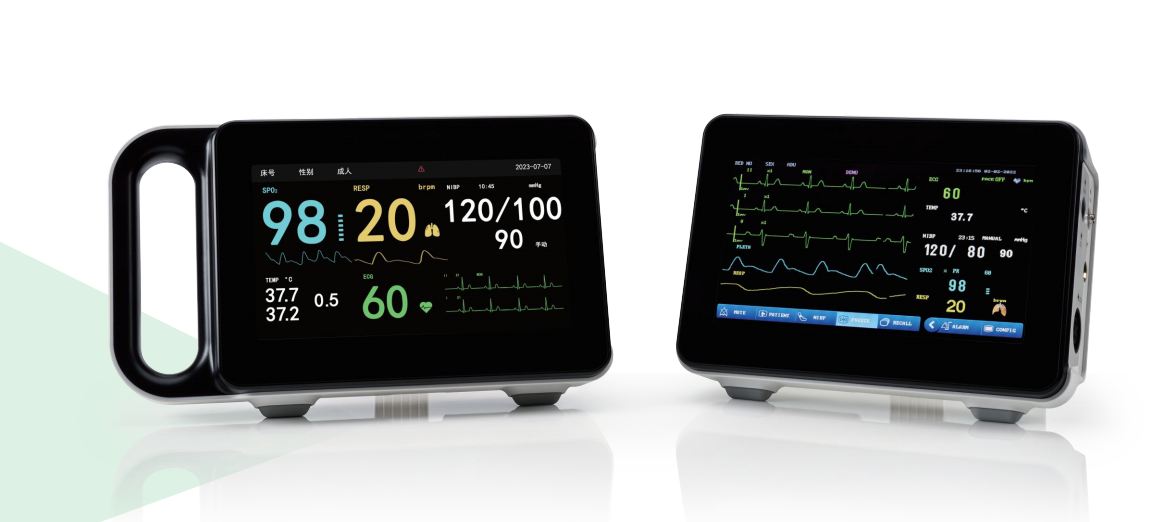

Multi-parameter patient monitor

Quality Standards and Classification

• Anti-electroshock degree: Class II equipment (internal power supply)
• Protection degree of fluid intake: IPX1

Application Range

It is suitable for adult, children and newborn patients. It can be used during the operation, post-anesthetic recovery after the operation and so on.

Display

• 7-inch color LCD display

Environment

Working environment conditions

• Ambient temperature range: +5℃~40℃
• Relative humidity range: 15%~80%, no condensation
• Atmospheric pressure range: 60~107kPa

Shipping and storage conditions

• Ambient temperature: -20℃~+55℃
• Atmospheric pressure: 16Pa~107kPa
• Humidity range:10%~95%

Electrical Specifications

• Input: AC 100-240V AC
• Power frequency: 50/60Hz
• Maximum input power:70VA
• Fuse specification:2AL 16V
• Working mode: continuous work
• Internal lithium battery: dc7.4V, not less than 2000 mAh

Dimension and Weight

• Product Size:246.5146.450.7mm
• Product weight:950g

ECG

• Gain: X0.25, X0.5, X1, X2, Auto
• Time baseline selection:12.5mm/s,25mm/s,50mm/s
• Sensitivity>200uV (peak-to-peak)
• Bandwidth:

• Common Mode Rejection Ratio:


NIBP

• Adult systolic blood pressure:40~270mmHg
• Diastolic blood pressure:10~210mmHg
• Average pressure:20~230mmHg
• Children systolic blood pressure 40~200mmHg
• Diastolic blood pressure:10~150mmHg
• Average pressure:20~165mmHg
• Neonatal systolic blood pressure:40~135mmHg
• Diastolic blood pressure:10~95mmHg
• Average pressure:20~110mmHg
• Static pressure range 0~300mmHg
• Static pressure accuracy:3mmHg
• maximum average error 5mmHg; maximum standard deviation 8mmHg
• Overvoltage Protection:


SpO2

• Measuring range 0~100%
• Resolution 1%
• The accuracy is within the range of 70% to 100%, and the measurement error should be ±3%; In the range of 0% to 69%, the measurement error is undefined

Pulse Rate

• Measuring range 25~250bpm
• Resolution 1bpm
• Accuracy ±3bpm
• Refresh time 1s

Heart rate

• 15 to 300bpm for adults (beat/min)
• Newborn/child 15-350 bpm (beat/min)
• Accuracy: ±1% or ±1 bpm, take the large one

Temperature

• Range 0~50℃
• Resolution 0.1℃
• Accuracy:±0.1℃ (without probe error)

RESP

• Adjustment range for RESP alarm upper limit and lower limit:

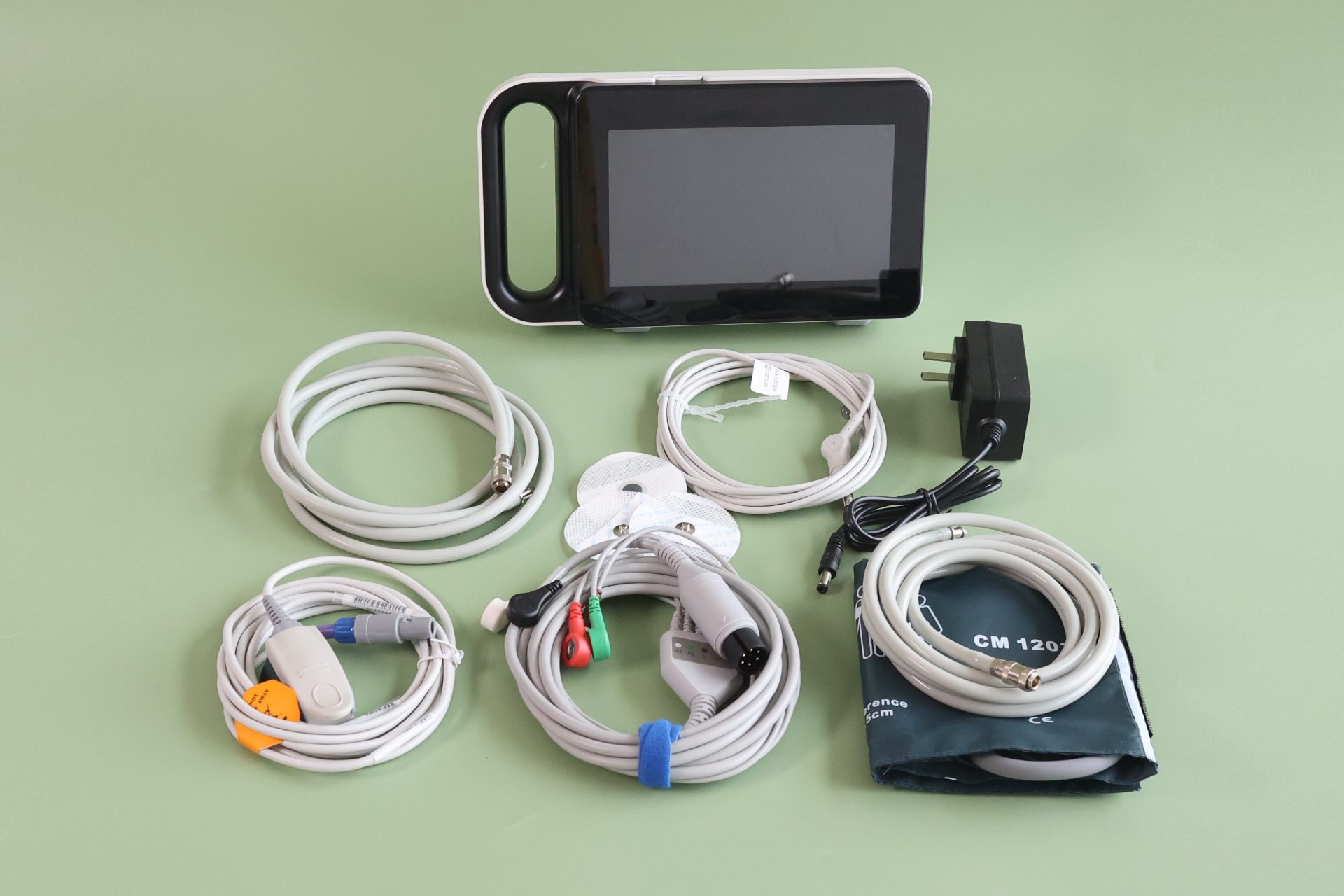

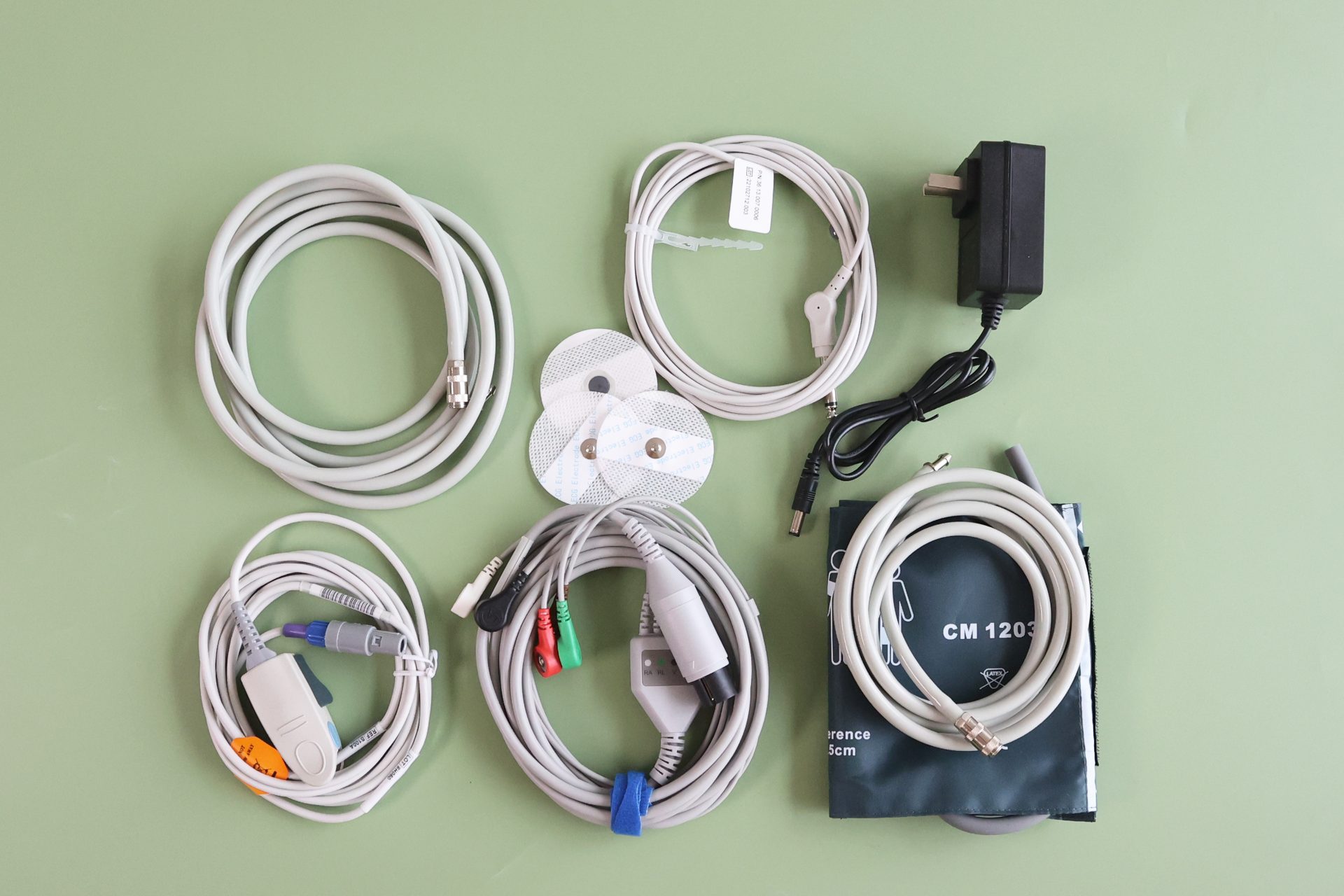

Standard accessories

• ECG lead line
• Cuff
• SpO2 sensor
• TEMP probe
• Lithium-ion battery
• Power cable
• Operator's manual

Optional accessories

• Etco2 (optional)
