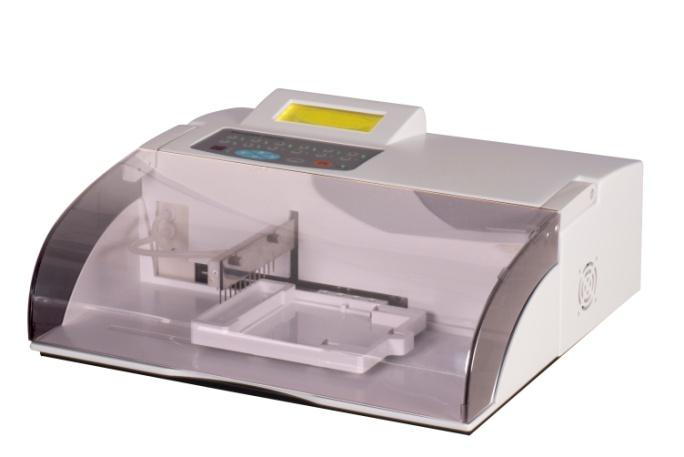

Summary of Microplate Washer

Product Overview

This microplate washer is specially designed for ELISA plate washing. It integrates incubation function and provides accurate liquid dispensing and residue removal for 48-well and 96-well microplates.

Main Features

• Interchangeable manifolds for 8- and 12-well strips.
• Supports direct keyboard selection for washing one or more ELISA plate strips.
• Minimal residual volume: less than 1μL per well.
• Dispensing precision CV＜2%.
• Detachable ELISA plate pallet, easy for cleaning and sterilization.
• 5 adjustable positions for cleaning head.
• Programmable shaking or soaking time.
• Automatic liquid level warning for waste, lotion and distilled water.
• Patented built-in cyclic temperature microplate pallet incubator.
• Temperature precision: 37±0.3℃.

Specifications

• Micro-plate Types: 48 / 96-well U-/V-/Flat-bottom plates or strips
• Residual Volume: ≤1μL / well typical
• Dispense volume: 50μl-950μl, adjustable
• Washing Cycles: 1-99, optional
• Soaking Time: 1-12, rows and ranks selectable
• Shaking Time: 0-999s, adjustable
• Display: Large LCD
• Channel: 2 channels for washing liquid, 1 channel for waste liquid
• Memory: Up to 100 programs can be stored
• Interface: RS232
• Power Supply: 220\110VAC ±10%, 50\60Hz
• Working Environment: 5℃-30℃, humidity ≤90%
• Dimension: 430mm (L) × 380mm (W) × 120mm (H)
• Net Weight: 12Kg

Manufacturer: China Care Medical Equipment Co.,Ltd Address: Room B101, ZhongBang Business Building, PuXing Road No. 87, Tianhe, Guangzhou, China Website: www.chinacaremedical.com
