Product info

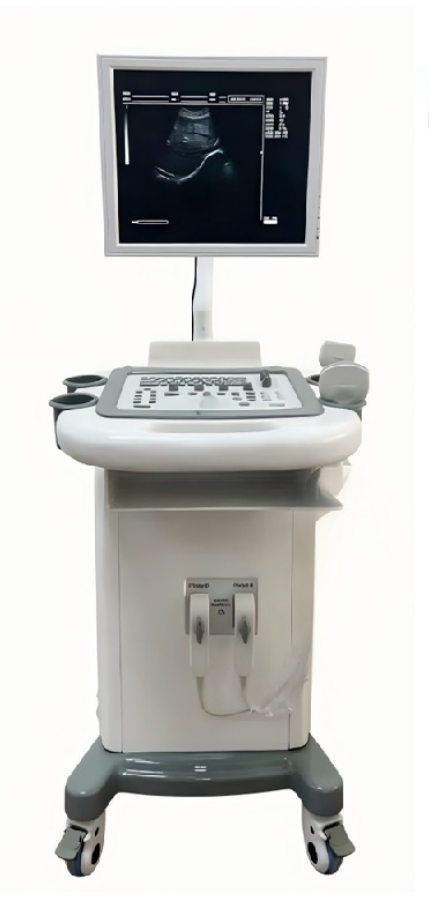

- Product name:Main unit + convex array + linear array
- Product code:C26091703
Out of stock. Request a quote.
Request a Quote
Packaging Specifications
Core Parameters
Description
Features
- The system uses micro computer technology, Digital Scanning Converter (DSC), variable aperture, multi-section dynamic focusing, high dynamic, low noise, wide band pre-amplifier, log compression, TGC control, dynamic filtering, edge enhancement and frame correlation.
- Those embedded components allow a clear, stable and high resolution image.
- Power Supply: 100V–130V/220V–240V, 50/60Hz
Standard configurations
- Main unit
- 3.5Mhz convex probe
- All accessories
Optional
- 6.5Mhz trans-vaginal probe
- 7.5Mhz linear probe
- Thermal video printer
Specifications
| Item | Parameter |
|---|---|
| Probe | Standard: C3-16/60R 3.5Mhz convex probeOptional: L3-17.5Mhz linear probe; EC1-11/3R 6.5Mhz trans-vaginal probe |
| Probe frequency | Convex probe:2.5Mhz,3.5Mhz,5.0MhzLinear probe:6.5Mhz,7.5Mhz,8.5MhzTrans-vaginal probe:5.5Mhz,6.5Mhz,7.5Mhz |
| Display depth (mm) | 240 (max),16 levels adjustable |
| Max detect depth (mm) | Convex probe: ≥160Linear probe: ≥80Trans-vaginal probe:≥60 |
| Resolution (mm) Lateral | Convex probe: ≤2 (depths≤80); ≤3 (80＜depths≤130)Linear probe: ≤1(depths≤60)Trans-vaginal probe: ≤1(depths≤40) |
| Resolution (mm) Axial | Convex probe: ≤2 (depths≤80); ≤3 (80＜depths≤130)Linear probe: ≤1(depths≤60)Trans-vaginal probe: ≤1(depths≤40) |
| Blind zone(mm) | Convex probe: ≤5Linear probe: ≤3Trans-vaginal probe: ≤7 |
| Geometric position precision Horizontal | Convex probe: ≤15Linear probe: ≤5Trans-vaginal probe: ≤10 |
| Geometric position precision Vertical | Convex probe: ≤10Linear probe: ≤5Trans-vaginal probe: ≤5 |
| Monitor size | 15 inch |
| Display mode | B, B+B, B+M, M, 4B |
| Image gray scale | 256 level |
| Cine loop | 809 frame (Max) |
| Image storage | 32 frames |
| Scan angle | Adjustable |
| Scan depth | 40mm–240mm |
| Acoustic power | 2 stops |
| Dynamic range | 100dB,130dB |
| Image flip | Up/down, left/right, black/white |
| Focus position | Adjustable |
| Focal space | 5 level |
| Measurement | Distance, circumference, area, volume, heart rate, GA, FW, EDD and etc. |
| Notation | Date, time, name, sex, age, doctor, hospital name. Full screen words edit. |
| Output report | 2 types |
| Posture mark | 240 |
| Video output | PAL-D, VGA |
