Product info
- Product name:17KW17mA125KV 17x17inch, Xray Machine Flat Panel Detector
- Product code:CCL20221020
Out of stock. Request a quote.
Request a Quote
Packaging Specifications
Core Parameters
Description
flat-panel detector Parameters:
TECHNOLOGY: a-Si
Scintillator: CsI
Effective Imaging Area (mm): 43cm x43cm
Active Matrix: 3072x3072
Effective Pixel Pitch(μm): 139μm
A/D Conversion(bits): 16
Spatial Resolution: 3.6 LP/mm
Image Acquicition Time(WIRED): 1s
X-ray working Range: 40-150 KV
Data interface: GigE
Power: 20 W
Adapter input: AC 100-240V.50-60HZ
Adapter output: DC 24V.60W
Dimensions: 46x46x1.5 cm
Weight: 3.5kg
Storage environment： -20-55°C,10-75% RH
Working environment： 5-35°C,10-75% RH
Waterproofing grade： IP54

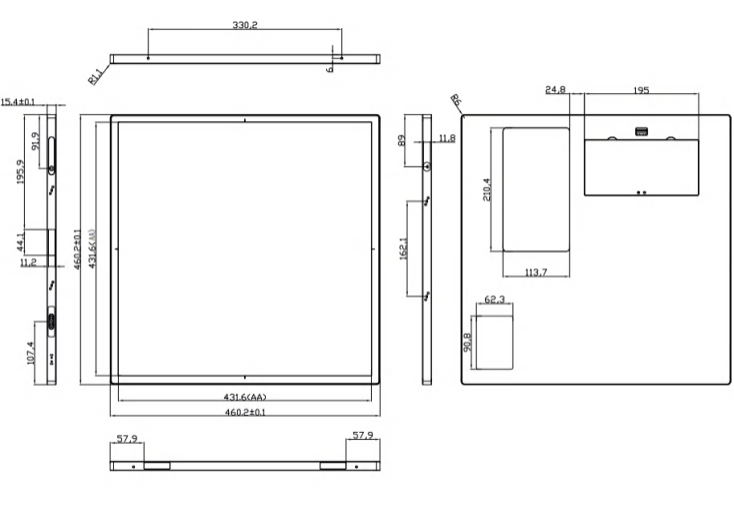

Schematic Drawing
