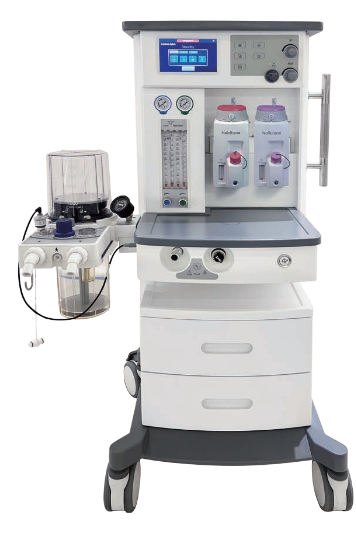

Dual‑Vaporizer Anesthesia Machine‑Basic Version

Application

Applied in Intensive Care Units (ICU), Operation room, Anesthesiology Department and other departments. Designed for inhalation anesthesia and respiratory management for adults, children and infants. Adopts proven ventilation technology and ergonomic optimization to simplify clinical anesthesia workflow.

Feature

‑ 7‑inch TFT LCD screen, displays ventilation parameters, alarm information and oscillogram.
‑ High‑precision flowmeter for real‑time fresh‑gas flow monitoring; integrated breathing‑circuit design for simple, tidy operation.
‑ Supports volume‑control and pressure‑limit working modes, suitable for wide‑range patient groups.
‑ Dual vaporizer with temperature, pressure, flow compensation and self‑lock function to guarantee safety.
‑ Multi‑parameter monitoring interface; real‑time pressure‑time and flow‑time oscillogram; high‑precision oxygen‑concentration detection.
‑ Vital‑sign monitor and anesthetic‑gas monitor are optional. Equipped with ACGO and fast‑oxygen‑supply function for emergency and post‑operation revival.

Safety & Trust Point

‑ Three‑level audio‑visual alarm system with multiple alarm, reminder and protection functions.
‑ Advanced power‑management control; low O₂ pressure alarm and N₂O cut‑off protection.
‑ Flexible configuration options; cost‑effective solution, developed by a professional team with over 20‑year industry experience.

TECHNICAL SPECIFICATION

Ventilation mode

IPPV, A/C, SIMV, SIGH, MANUAL

Ventilator parameter range

‑ Flowmeter: O₂ (0 ~ 10 L/min); N₂O (0 ~ 10 L/min)
‑ Rapid oxygen supply: 25 L/min ~ 75 L/min
‑ Tidal volume(Vt): 0, 20 mL ~ 1500 mL
‑ MV: ≥18 L/min
‑ Frequence (Freq): 1 /min ~ 100 /min
‑ I:E: 2:1 (1:0.5) ~ 1:6
‑ PEEP: 0 cmH₂O ~ 30 cmH₂O
‑ Pressure triggering sensitivity (PTr): -20 cmH₂O ~ 20 cmH₂O (Based on PEEP:‑20 cmH₂O ~ 0 cmH₂O)
‑ Flow trigger sensitivity (FTr): 0.5 L/min ~ 30 L/min
‑ SIGH: 0 (off) 1/100 ~ 5/100
‑ Apnea ventilation: OFF, 5 s ~ 60 s
‑ Pressure limit: 20 cmH₂O ~ 100 cmH₂O

Oscillogram

P‑T (pressure‑time), F‑T (flow‑time), P‑V loop (pressure‑volume loop)

Monitoring parameter

‑ Frequence (Freq): 0 /min ~ 100 /min
‑ Tidal volume (Vt): 0 mL ~ 2000 mL
‑ MV: 0 L/min ~ 100 L/min
‑ Oxygen concentration: 15 % ~ 100 %

Alarm and protection

‑ The AC power failure alarm
‑ Internal battery backup low voltage alarm
‑ No tidal volume alarm
‑ High oxygen concentration alarm
‑ Low oxygen concentration alarm
‑ High airway pressure alarm
‑ Low airway pressure alarm
‑ High tidal volume alarm
‑ Low tidal volume alarm
‑ Continuous pressure alarm
‑ Suffocation warning alarm
‑ Oxygen deficit alarm
‑ Fan error alarm
‑ Pressure limit alarm
‑ The maximum limited pressure ≤12.5 kPa

Working condition

‑ Gas source: O₂ N₂O / O₂ AIR
‑ Pressure: 280 kPa ~ 600 kPa
‑ Voltage: 100 ~ 240 V
‑ Power frequency: 50/60 Hz

Wooden case packing size

‑ Wooden case packing size: L 790 * W 740 * H 1460 mm
‑ G.W.: 118 KG; N.W.: 66 KG

Manufacturer: China Care Medical Equipment Co., Ltd. Address: Room B101, Zhongbang Business Building, No. 87 Puxing Road, Tianhe, Guangzhou, China Web: www.chinacaremedical.com
