Product info
- Product name:Dual-channel coagulation analyzer
- Product code:C2609201
Out of stock. Request a quote.
Request a Quote
Packaging Specifications
Core Parameters
Description
Summary of 2-Channel Semi-auto Coagulation Analyzer
Product Overview

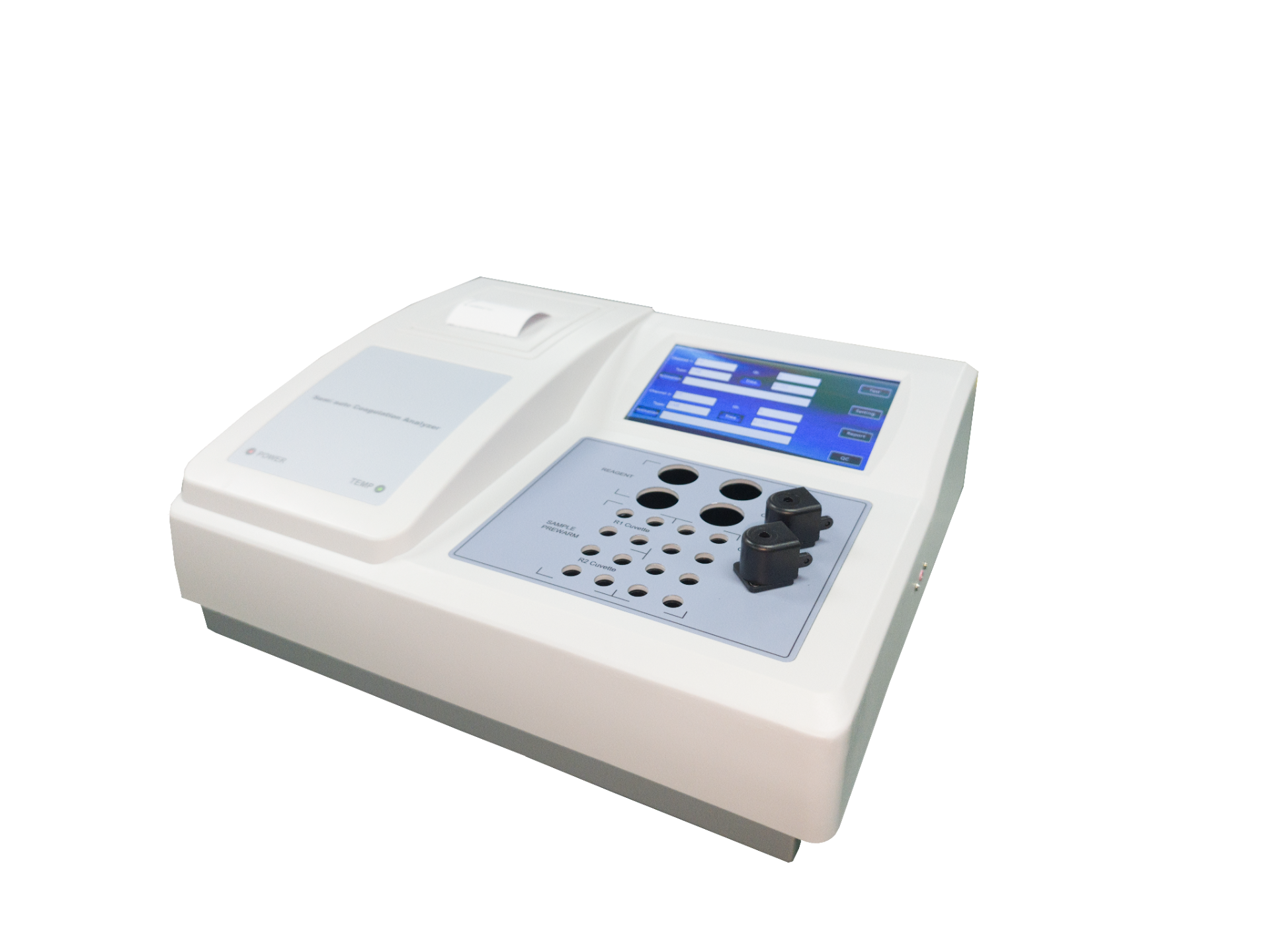

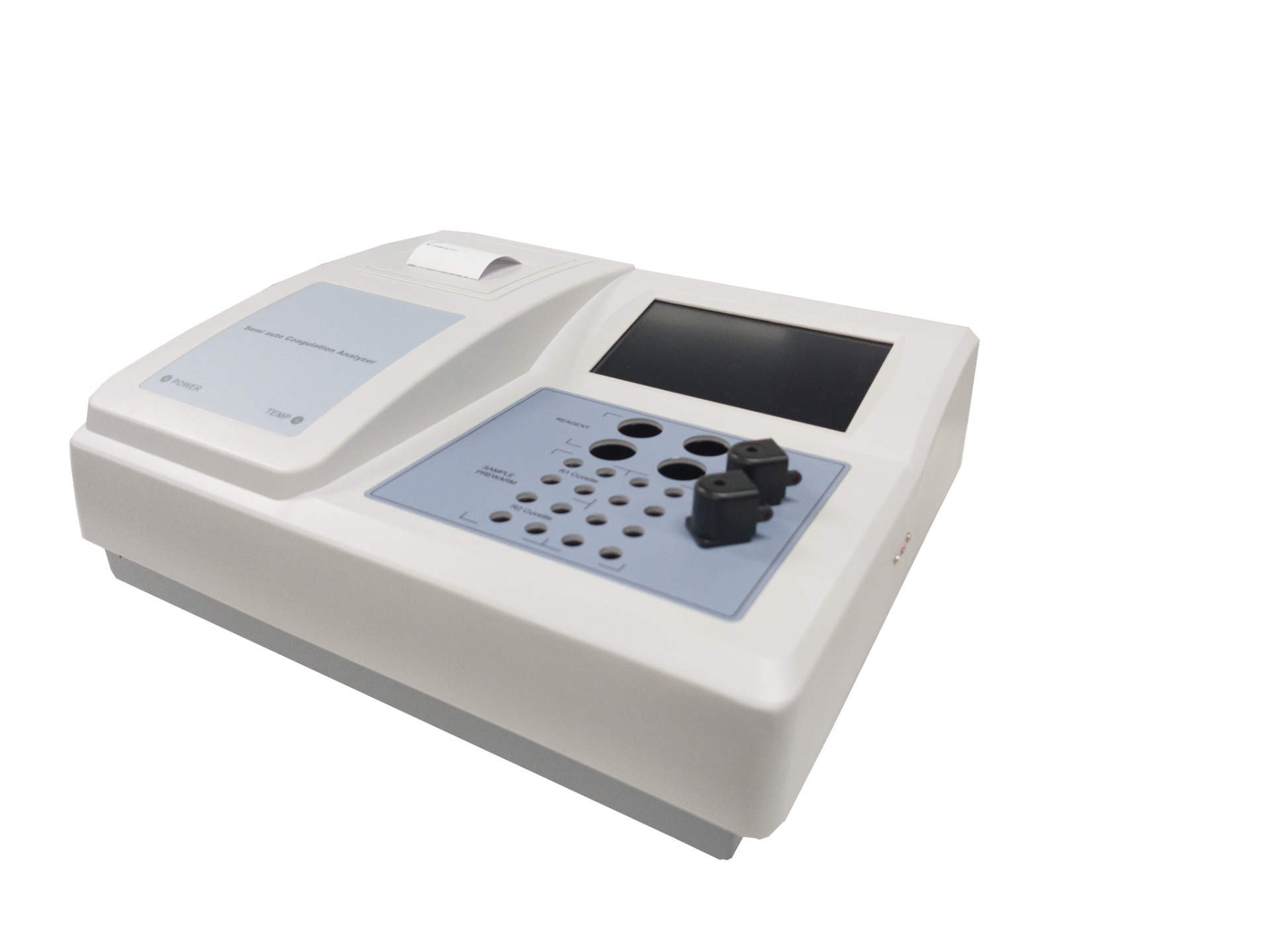

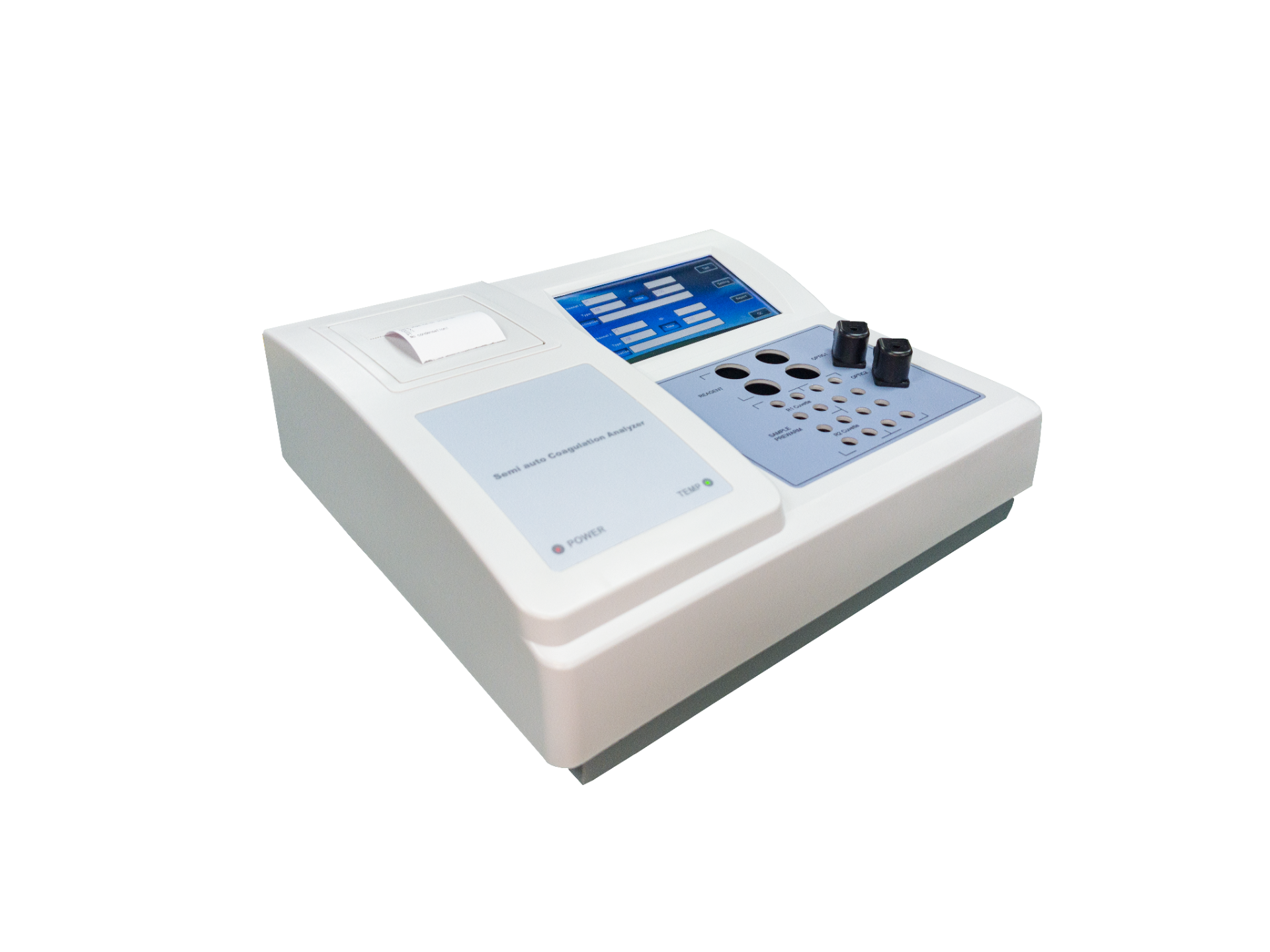

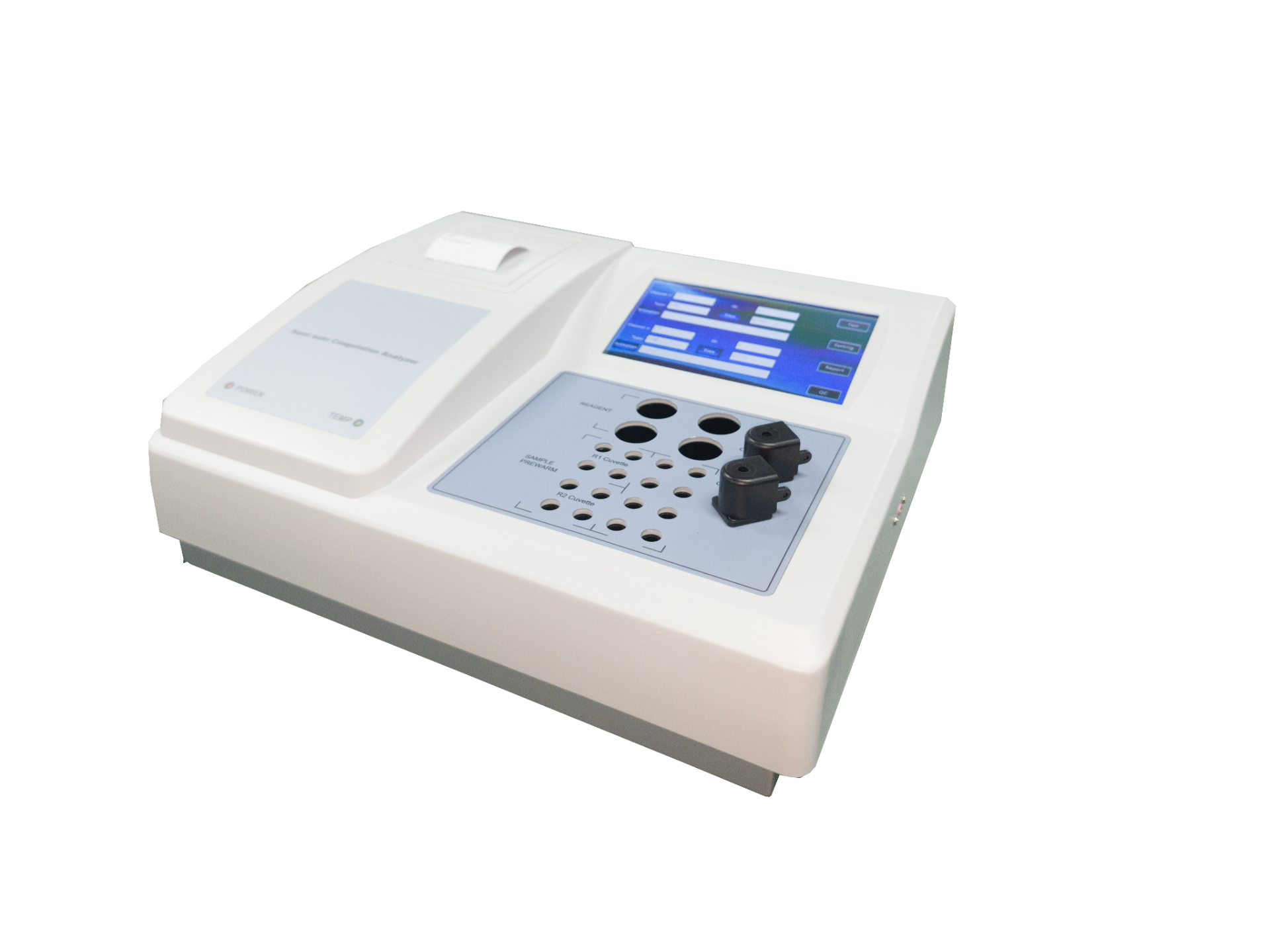

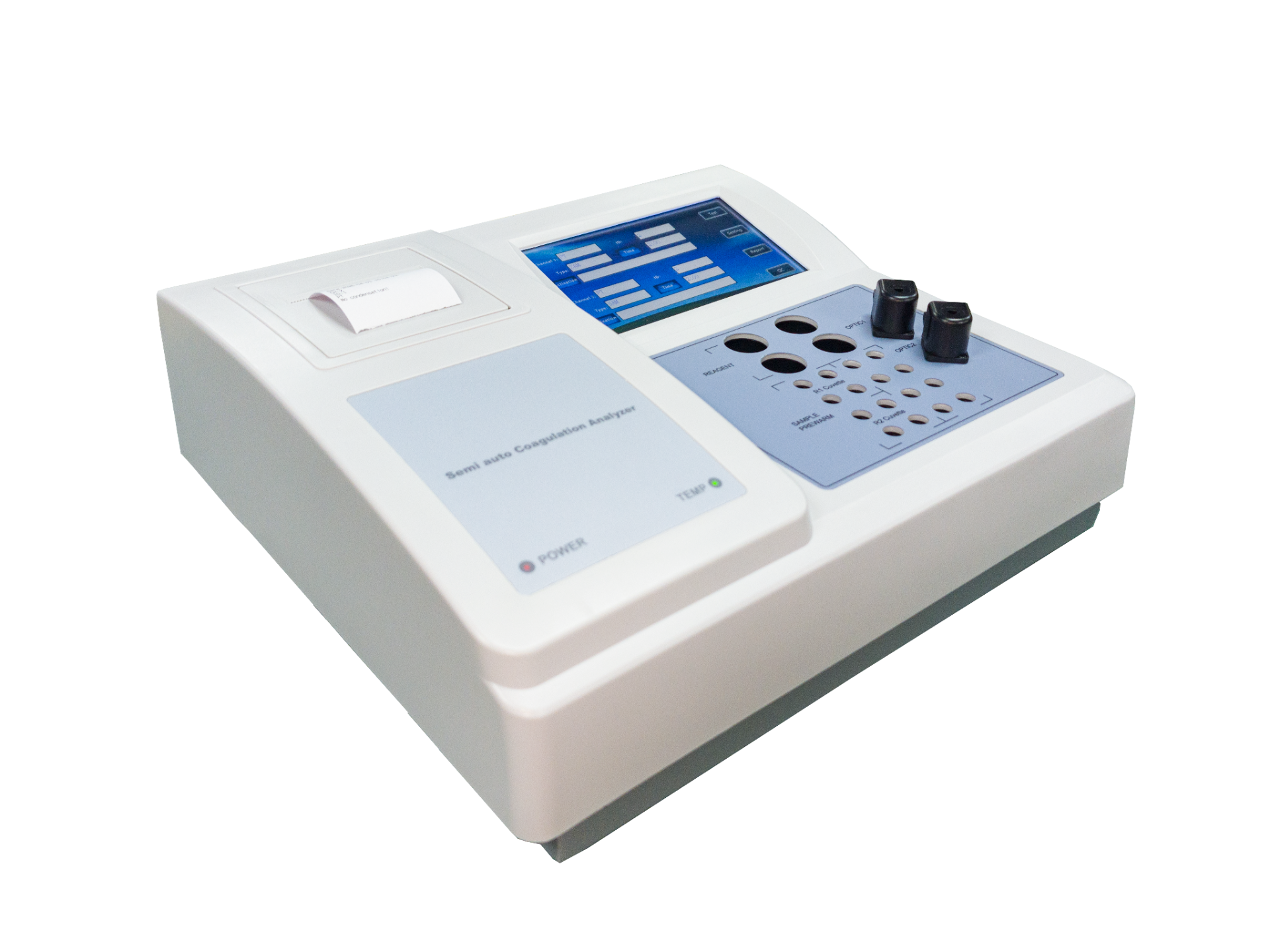

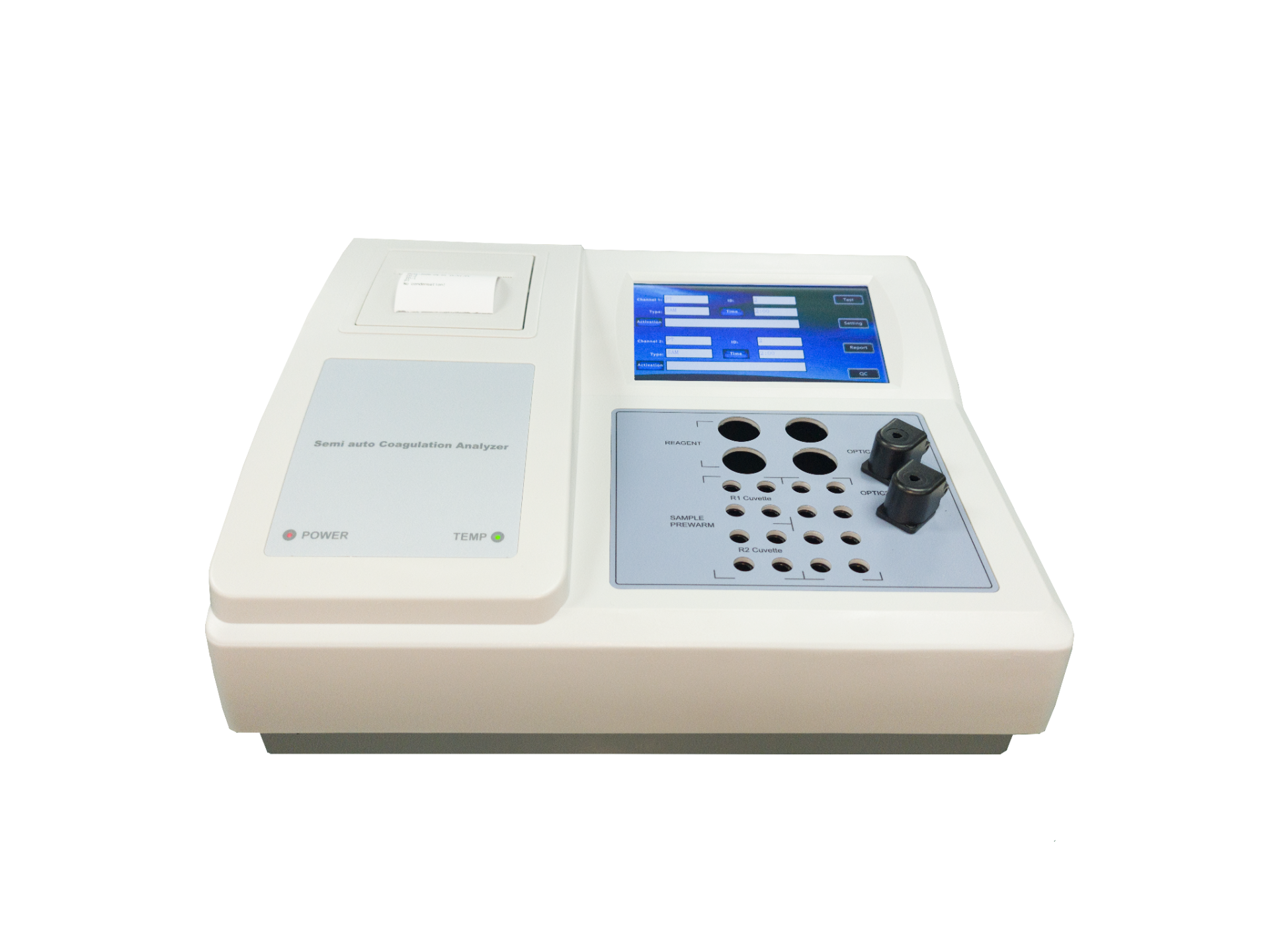

It is a 2-channel semi-automatic coagulation analyzer adopting scattered-light detection principle, used for blood coagulation related laboratory testing. It supports two different tests running simultaneously.
Main Features
- 7 inches color touch LCD screen.
- Thermostatic block at 37°C with two stirring systems.
- Adopts advanced scattered light principle and percentage analysis algorithm to deliver accurate test results.
- Special testing cup positioning system, with sample adding bracket.
- Built-in QC function, supports quality control curve and QC report. Calibration curve and real-time test curve can be saved and reviewed.
- Internal thermal-sensitive printer. Storage capacity for up to 10,000 test results.
- Optional PT derived method for fibrinogen test to reduce reagent consumption.
- Test items: PT, APTT, TT, FIB and clotting factors.
- Open reagent system; closed reagent system available as option.
- RS232 and dual USB ports for PC connection; barcode scanner is optional.
- Multi-language support: English, French, Spanish, Portuguese, Russian, Indonesian.
Technical Specifications
| Item | Parameter |
|---|---|
| Testing Channels | 2 channels, run 2 different tests concurrently |
| Sample hot position | 16 |
| Reagent hot position | 4 |
| Stirring systems | 2 |
| Test Wavelength | 405nm, 660nm |
| Sample consumption | 50,75,100 uL |
| Reagent consumption | 50,75,100 uL |
| Temp precision | 37±0.3℃ |
| Repeatability CV | ≤2% |
| Channel difference CV | ≤2% |
| Memory | 10000 test results |
| Result Format | S, %, PTR, INR, g/L,mg/dL |
| Interface | USB×2, RS232×1 |
| Barcode scanner | Optional |
| Power supply | 100-240V~50/60Hz |
| Altitude | ≤4500m |
| Dimension | 395mm(L)×320mm(W)×135mm(H) |
| Working Temperature | 15℃~30℃, wet ≤90% |
| Net Weight | 5 KG |
