Product info

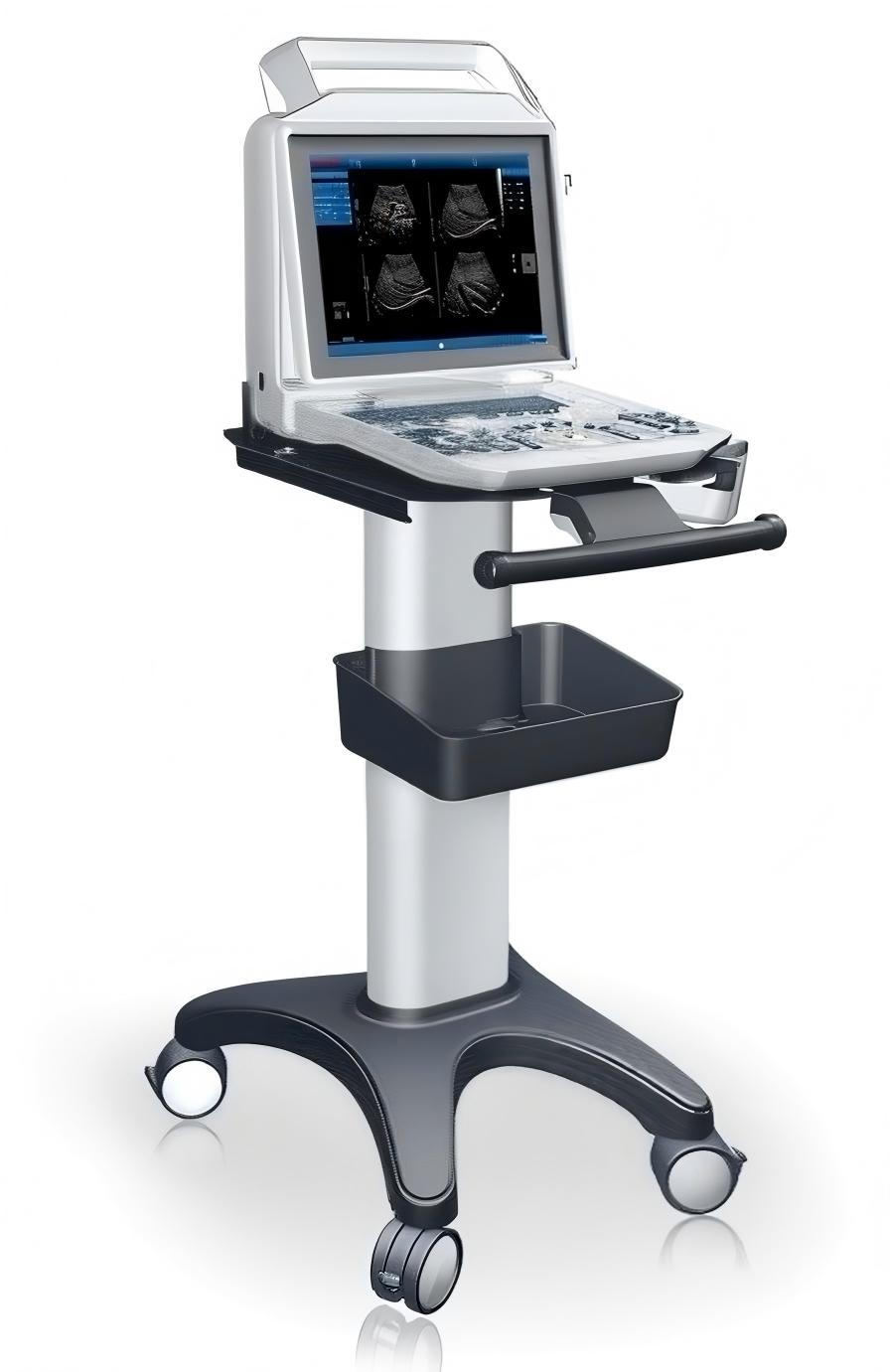

- Product name:Black and White Ultrasound Scanner (with PW)
- Product code:CCI50
Out of stock. Request a quote.
Request a Quote
Packaging Specifications
Core Parameters
Description
Laptop Ultrasound Scanner Specification
Standard Configuration
- Main Unit × 1
- Convex Probe × 1
- Battery × 1
Physical Specifications
- Width: approx. 370mm
- Height: approx. 360mm
- Thickness: approx. 155mm
- Weight:
Monitor
- 12-inch high-resolution color display screen
- Resolution: 1024 × 768
- Tilt angle range: 0–90°
Transducer Ports
- 2 transducer ports
- 2 removable transducer holders
Electrical Specifications
AC Adapter:
- Input Voltage: 100–240V~
- Frequency: 50/60Hz
- Power Consumption: 110VA
- Built-in Battery:
- Type: Lithium-ion rechargeable
- Spec: 10.89V / 5200mAh
Environmental Specifications
Operation Environment:
- Ambient temperature: 5°C ~ +40°C
- Relative humidity: 25% ~ 85%
- Atmospheric pressure: 700hPa ~ 1060hPa
- Storage & Transport Environment:
- Ambient temperature: -20°C ~ +55°C
- Relative humidity: 10% ~ 95%
- Atmospheric pressure: 500hPa ~ 1060hPa
Main Unit
- Storage: 32MB SSD + 8GB HDD
- Operating System: Linux
