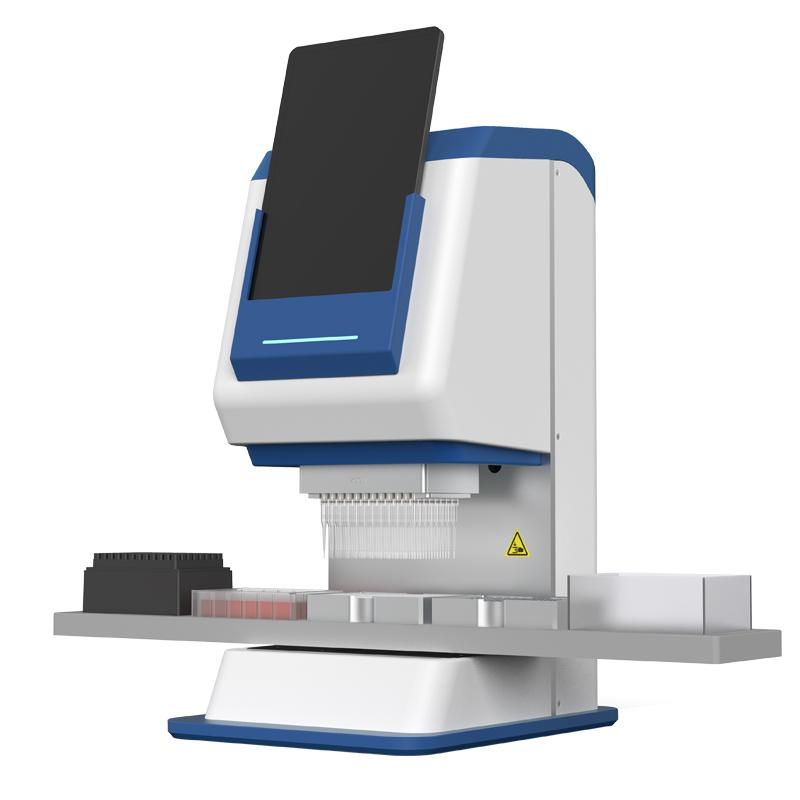

Instrument Introduction

This equipment is a laboratory automated liquid‑handling instrument that automatically completes operations such as pipetting, dispensing, dilution and mixing. It is applied in molecular biology, genomics, proteomics, drug research and development, clinical diagnosis and chemical analysis to improve experimental efficiency, reduce human errors, and ensure experimental consistency and accuracy.

Working Principle

The complete machine consists of four major parts: X‑YZ axis motion system, high‑precision pipetting module, base tray and Android tablet. The X‑YZ axis motion system realizes precise manipulation of consumables and reagents. The high‑precision pipetting module adopts air‑displacement technology to complete accurate liquid transfer. The base tray supports 3‑6 workstation configurations. The Android tablet serves as the human‑computer interaction and control system to realize equipment operation and status monitoring.

Execution Standard

Pipetting performance complies with GB/T 41812‑2022 General rules for performance test of automated liquid handling workstations.

Application Scope

Reagent adding, compound sample loading, single‑column serial dilution, plate format conversion, PCR/qPCR, DNA sequencing, RNA transcription, cell culture and other experiments.

Main Features

1. Controlled by Android tablet software, supporting Bluetooth and USB Type‑C connection for simultaneous charging and data communication.
2. Fully automatic liquid transfer from 96‑well to 384‑well plates without manual intervention.
3. Adjustable moving speed to adapt to physical and chemical properties of different liquids.
4. Modular structure compatible with multiple specifications of pipetting modules.
5. Fully automatic execution of serial dilution.
6. Compact body, can be placed inside fume hood and biosafety cabinet.
7. Compatible with standard tips to reduce consumable costs.
8. Intuitive UI interface with flexible and easy‑to‑use programming logic.

Technical Parameters

• Pipetting principle: Air‑displacement
• Number of channels: 96 channels
• Number of plate positions: 6
• Plate type: Standard SBS microplate
• Pipetting volume: 5‑200 μL
• Pipetting accuracy: 20 μL ≤1.5%; 100 μL ≤1%; 200 μL ≤0.8%
• Pipetting precision: 20 μL ≤1%; 100 μL ≤0.8%; 200 μL ≤0.5%
• Power supply: 180‑264 VAC, 47‑63 Hz, 220 W
• Communication mode: Bluetooth, USB Type‑C (PD protocol supported)
• Host dimension: 855 mm × 350 mm × 580 mm
• Host net weight: 28 kg
