Summary of CCVB1 Portable Ventilator
Product Overview

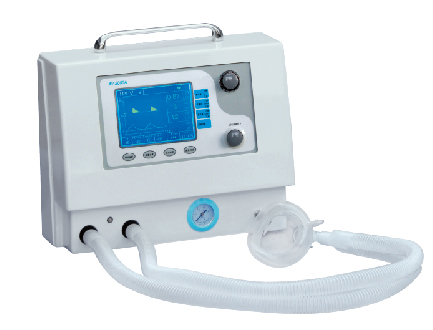

CCVB1 is a portable medical ventilator (simply respirator) equipped with multiple ventilation modes, complete parameter‑monitoring and multi‑level safety alarm functions for clinical respiratory support.
Main Features
- Display
5.7‑inch high‑definition LCD screen. - Ventilation Modes & Functions
‑ Working modes: IPPV, SIPPV, SIMV, MANUAL.
‑ Supported functions: PEEP, SIGH, IRV.
3.Core Ventilation Parameters
| Item | Range |
|---|---|
| Tidal volume | 50‑1500 ml |
| Breath rate | 2‑99 bpm |
| SIMV rate | 2‑20 bpm |
| I:E ratio | 2:1 ~ 1:8 |
| Inspiratory trigger pressure | -1.0‑2.0 kPa |
| PEEP | 0‑2.0 kPa |
| Pressure range | 1.0‑6.0 kPa |
| SIGH | 1.5 × inspiratory time |
- Monitoring Items
Tidal volume, minute ventilation volume, IPPV rate, SIMV rate, respiratory rate, I:E ratio, peak airway pressure, pressure‑time waveform, flow‑rate‑time waveform, PEEP, inspiratory trigger pressure. - Safety Alarm System
‑ Airway pressure high/low limit alarm
‑ Minute‑ventilation‑volume high/low limit alarm
‑ Sustained high‑pressure alarm (triggers when pressure keeps above 2.5 kPa)
‑ Suffocation alarm
‑ Power failure alarm - Power Supply
‑ Main power: AC 220V±10%, 50Hz±1Hz
‑ Built‑in UPS / storage battery for backup power.
