Product info

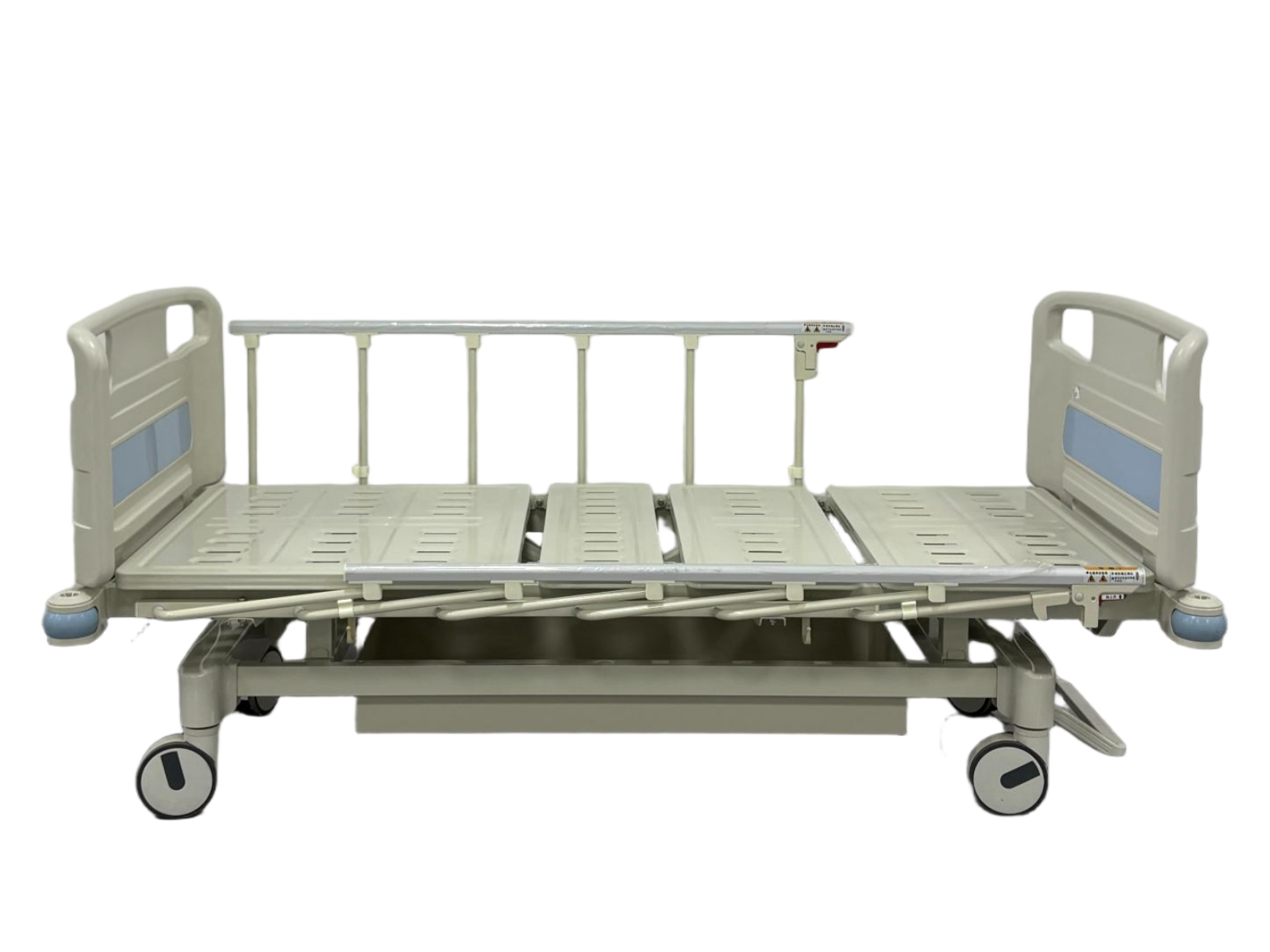

- Product name:Three-Crank Nursing Bed (with Central Control)
- Product code:C260806003
Out of stock. Request a quote.
Request a Quote
Packaging Specifications
Core Parameters
Description
Hospital Bed Specifications
- Product Dimension: 21601070450/750MM
- Optional locking switches for headboard and footboard; anti-collision wheels installed on both head and foot ends for safer application
- Sprayed plastic bed board with concave air vent design, excellent air permeability to effectively prevent bedsores
- Adjustment Range: Backrest lifting angle up to 80°, foot section lifting angle up to 45°, overall height adjustable from 450MM to 750MM
- Load Capacity: Total bed load 600kg, maximum dynamic load of backboard 150KG
- Curved guardrail: Tube specification ∮19*1.2mm; equipped with bidirectional limitless protection device to extend service life and improve safety
- Anti-collision wheels: Central wheel made of imported ABS engineering plastic; wheel size Ø100MM, thickness 50MM, inner hole Ø50MM; plastic pin part length 81MM, width Ø81MM, matched with 60601.5MM cross beam
- Casters: 6-inch central control wheels with TPU polyurethane surface, silent and wear-resistant; central braking system matched with aluminum alloy foot pedal
- IV pole: Manual two-stage telescopic structure, adjustable height from 1000mm to 1600mm
