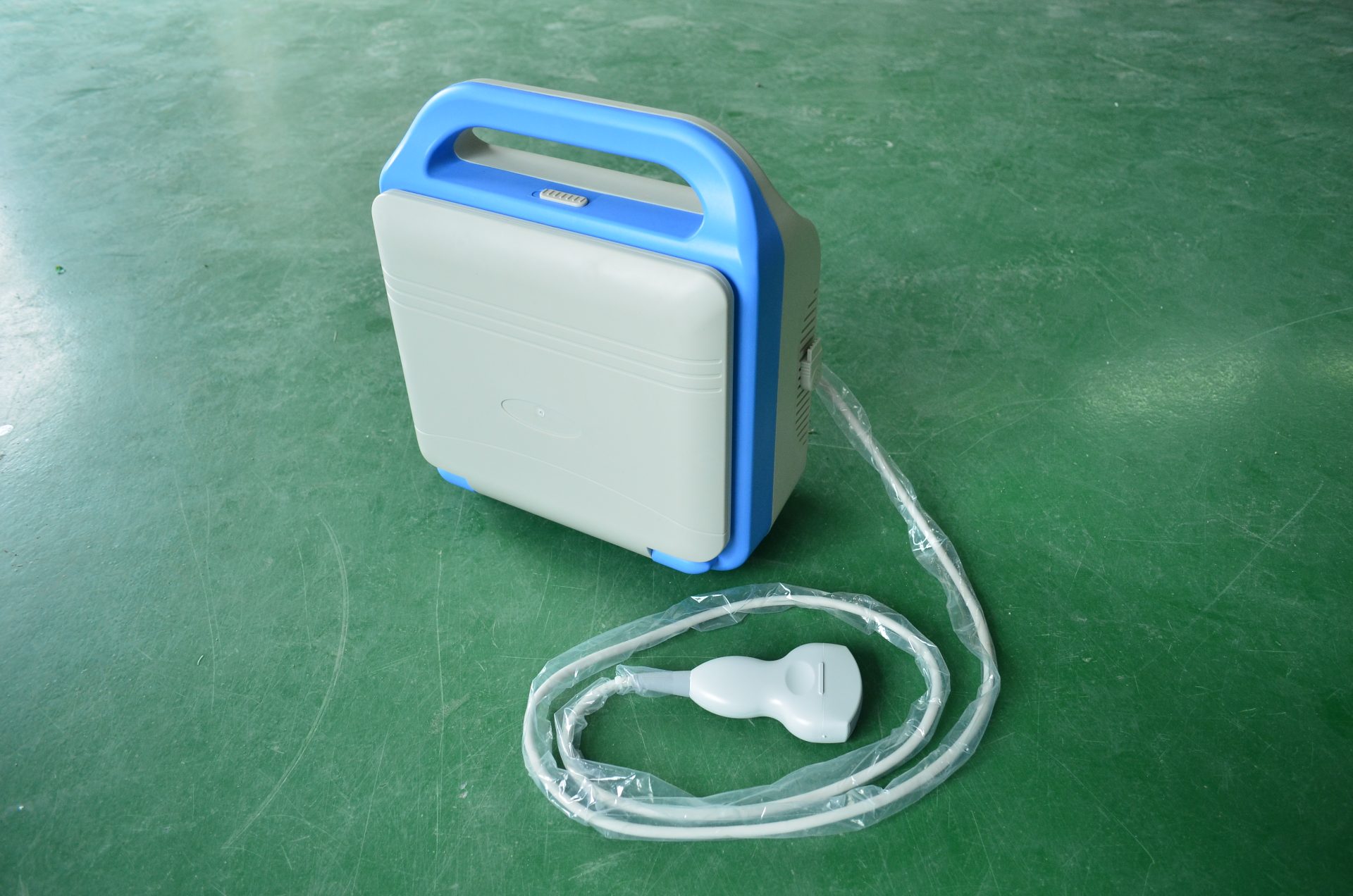

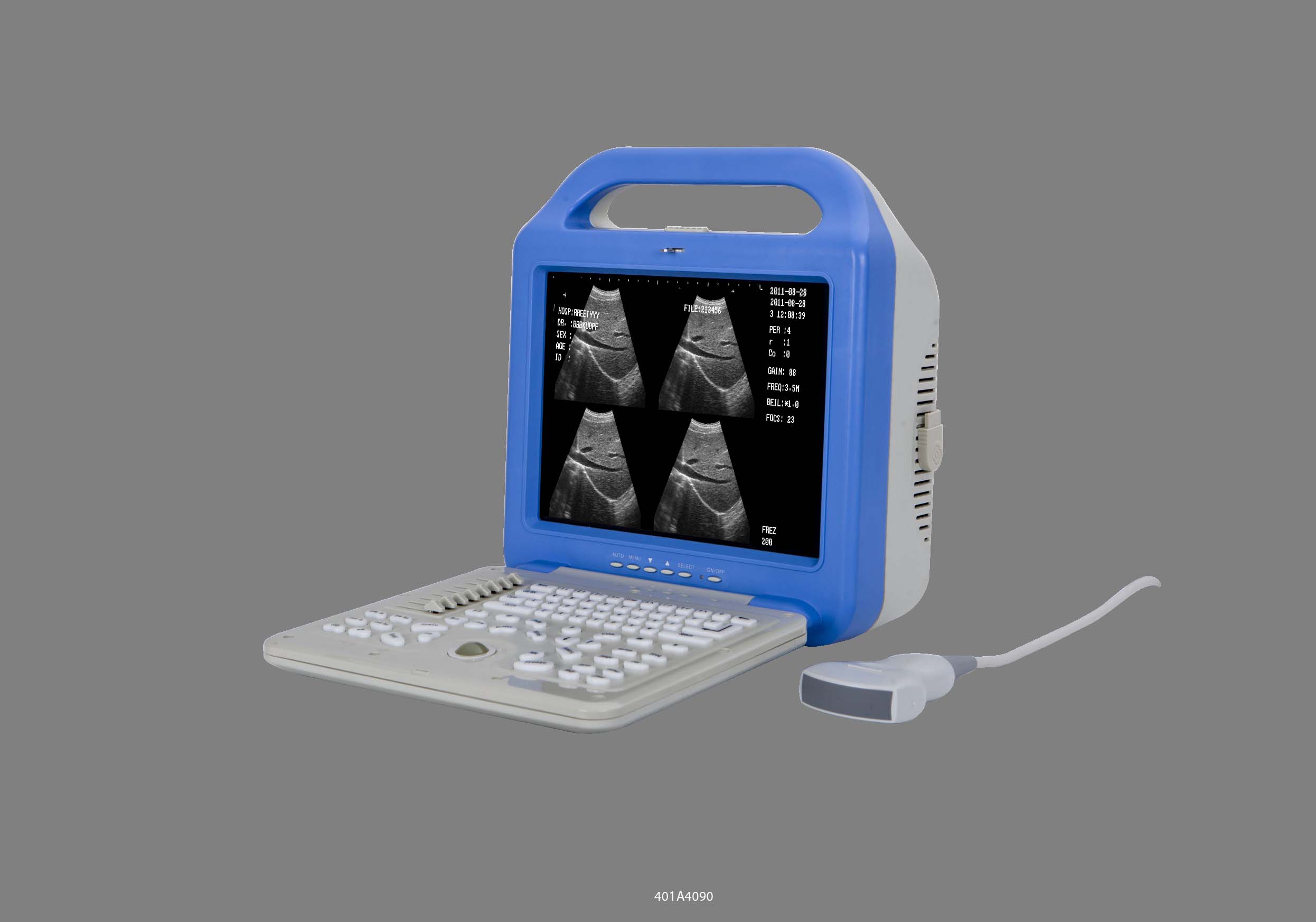

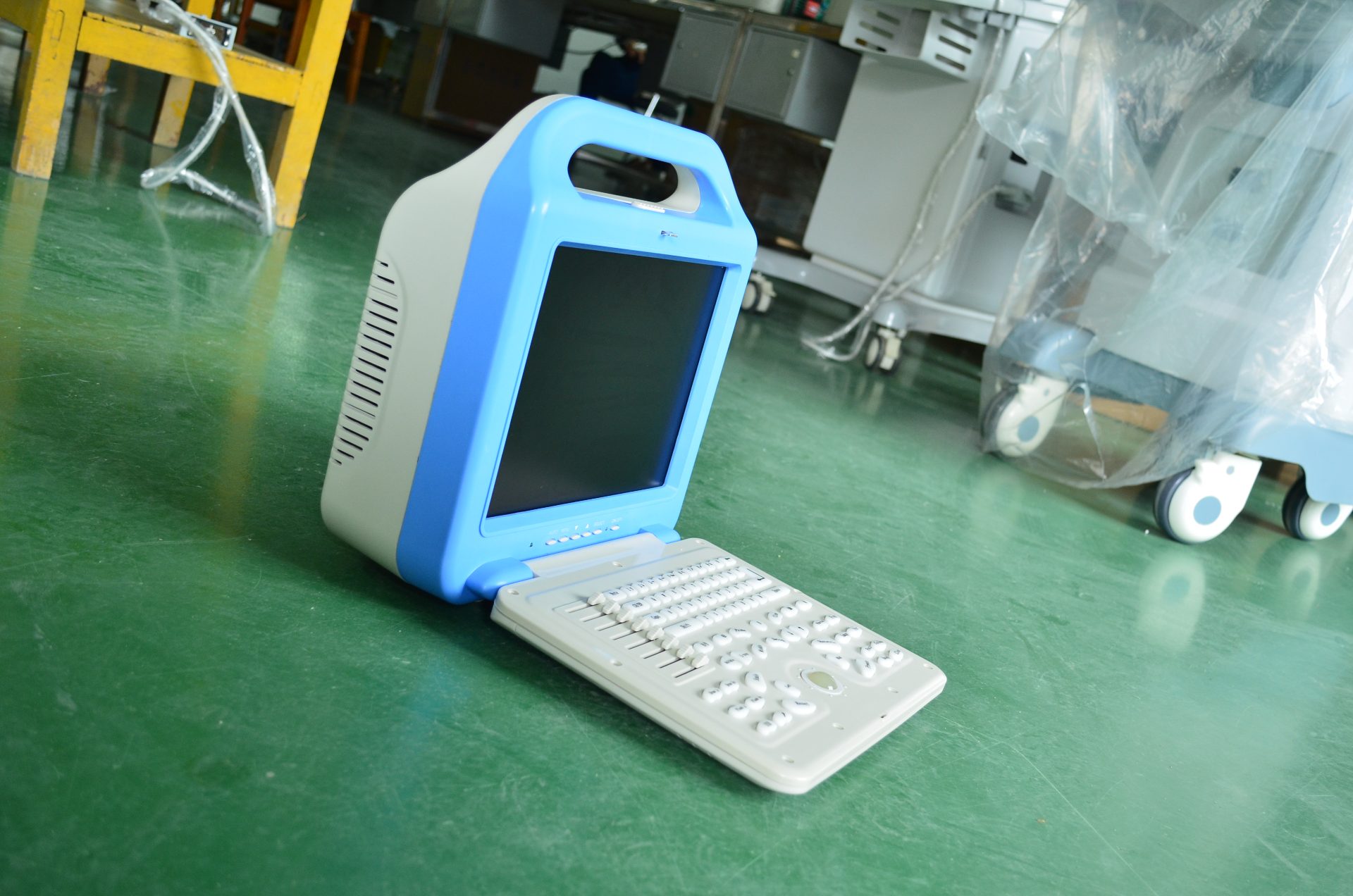

10" CRT B/W Ultrasound Scanner Product Specification

Standard Configuration:

• 10 inches CRT main unit: 1 set
• Power line: 1 pc
• Ground line: 1 pc
• Fuse: 4 pcs
• English user's manual: 1 pc
• Warranty card: 1 pc
• Convex Probe

Main Features:

• Powerful measurement & calculation software packages
• 8-Segment TGC & ABD Trackball adjustment
• 10-inch VGA monitor
• OB measurements: BPD, GS, CRL, FL, AC, HC, etc.
• Permanent image storage: 32 images
• Back-lit keyboard
• 2 probe connectors with automatic probe identification

Main Technical Specifications:

• Scanning mode: Convex / Linear / Trans-vaginal / Trans-rectal

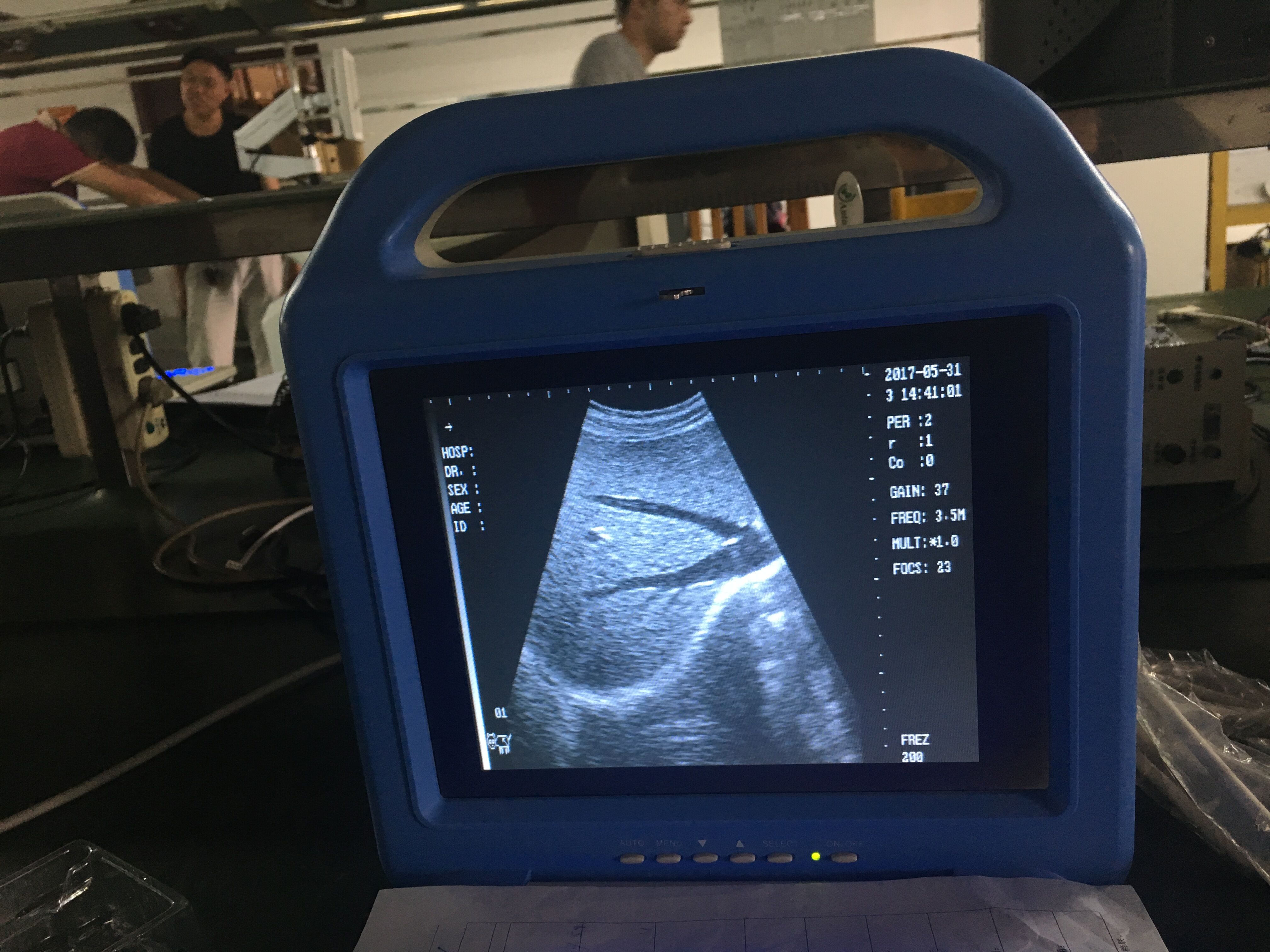

• Display modes: B, B+B, B+M, M, 4B
• Scanning depth: 240mm
• Gray scales: 256
• Body marks: 33
• Magnification:
• Image flip: up/down, left/right, black/white
• Puncture guide function
• Max dynamic range: ≥100dB
• Detecting depth: ≥190mm; Scanning depth ≥240mm
• Geometric accuracy:
• Resolution:

Additional Features:

• Multi-focus combination
• Built-in pseudo color processor
• Pal-D and VGA video output for external monitors, printers, etc.
• Fixed characters and real-time clock/calendar display
• Software reset function
• Printer interface (supports laser and video printers)
• User-definable presets (auto-saved at boot)
• Comment fields: Date, Name, Sex, Age, Hospital, Annotation
• Zoom: *1.0, *1.2, *1.5, *2.0

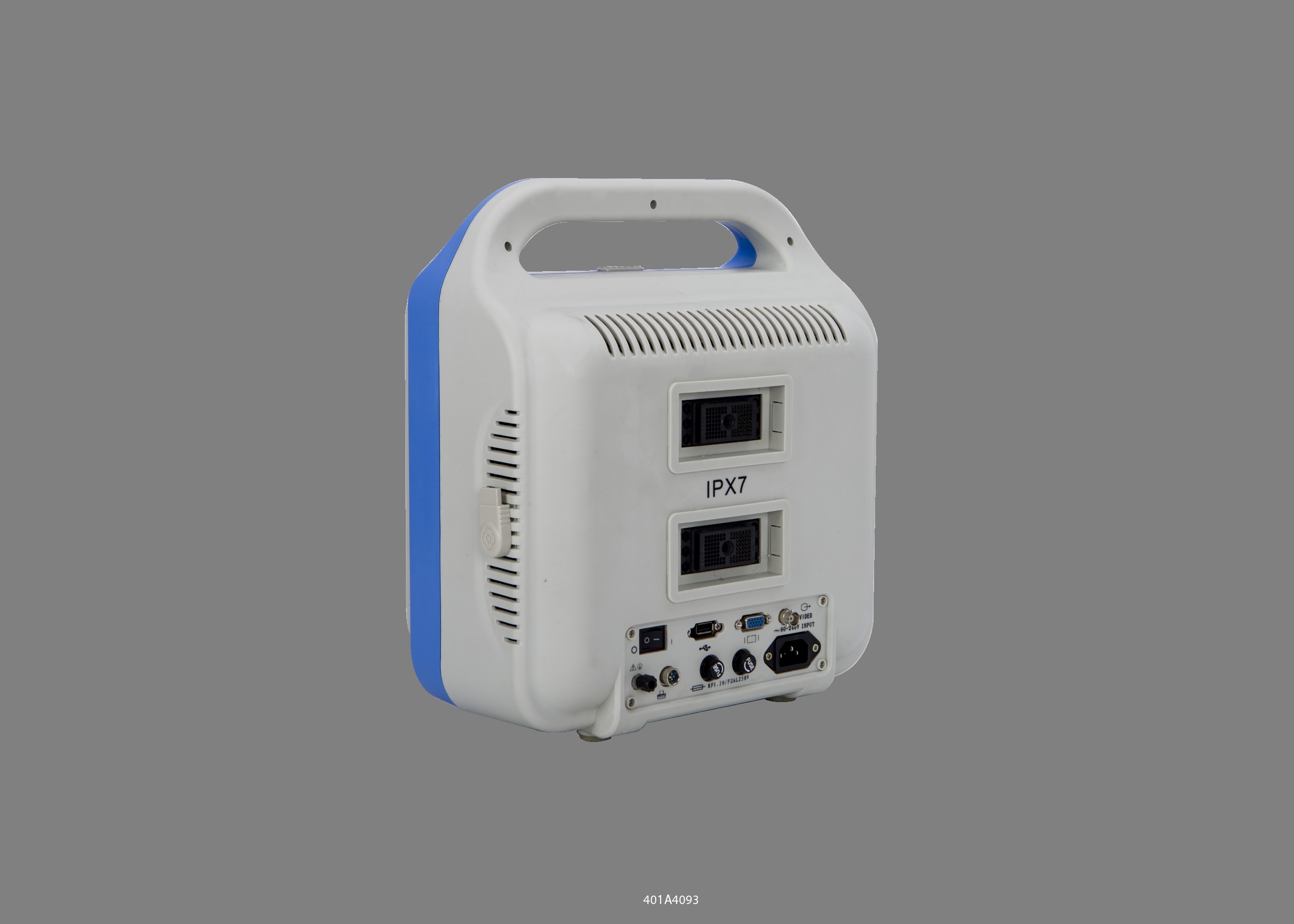

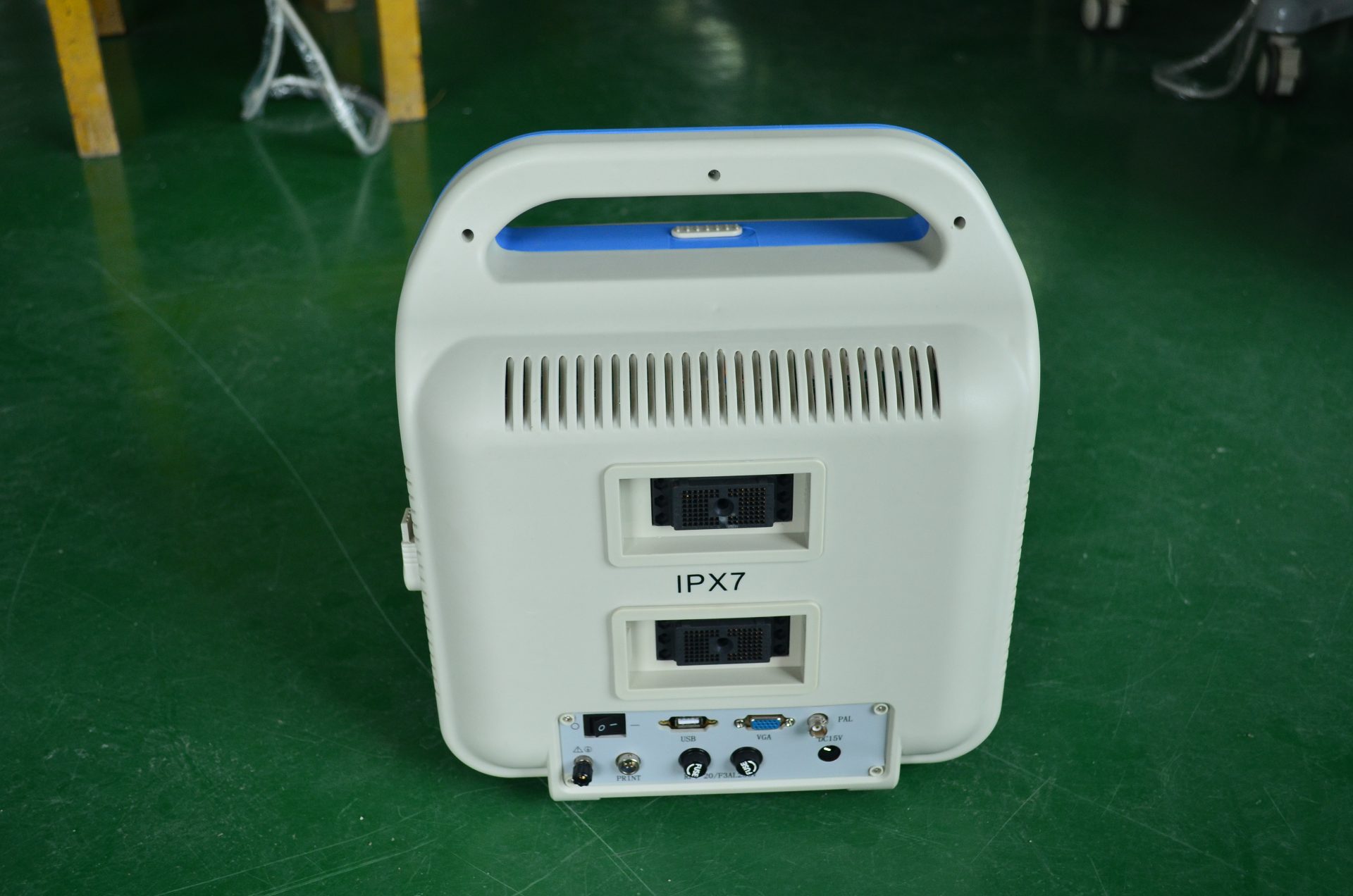

• Interfaces: USB 2.0, VGA, Video connector
• Applications: Abdomen, OB/GYN, urology, cardiology, small parts, etc.
• USB storage capacity: >16,000 images
• Power supply: AC 110V-240V, 50/60Hz
• 2 probe connectors

Measurement Packages:

• General: Distance, Area, Volume, Angle, Ellipse
• Obstetrics: GS, CRL, BPD, HC, AC, FL, Fetus Weight
• Heart: Distance, Time, Slope

Optional Accessories:

• 2.5-7.5MHz Convex array probe
• 5.0-10.0MHz Linear array probe
• 4.0-5.5MHz Micro-Convex array probe
• 5.0-7.5MHz Trans-vaginal array probe
• 5.0-10.0MHz Trans-rectal probe
• Mitsubishi Video Printer P93
