Summary of CCM‑I1 Lithium‑battery Handheld Pulse Oximeter

Product Overview

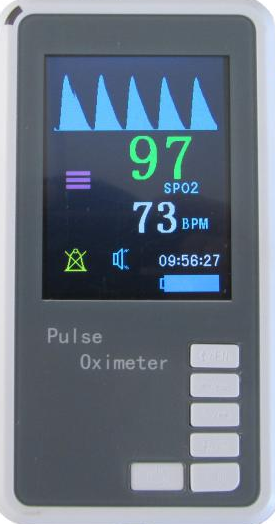

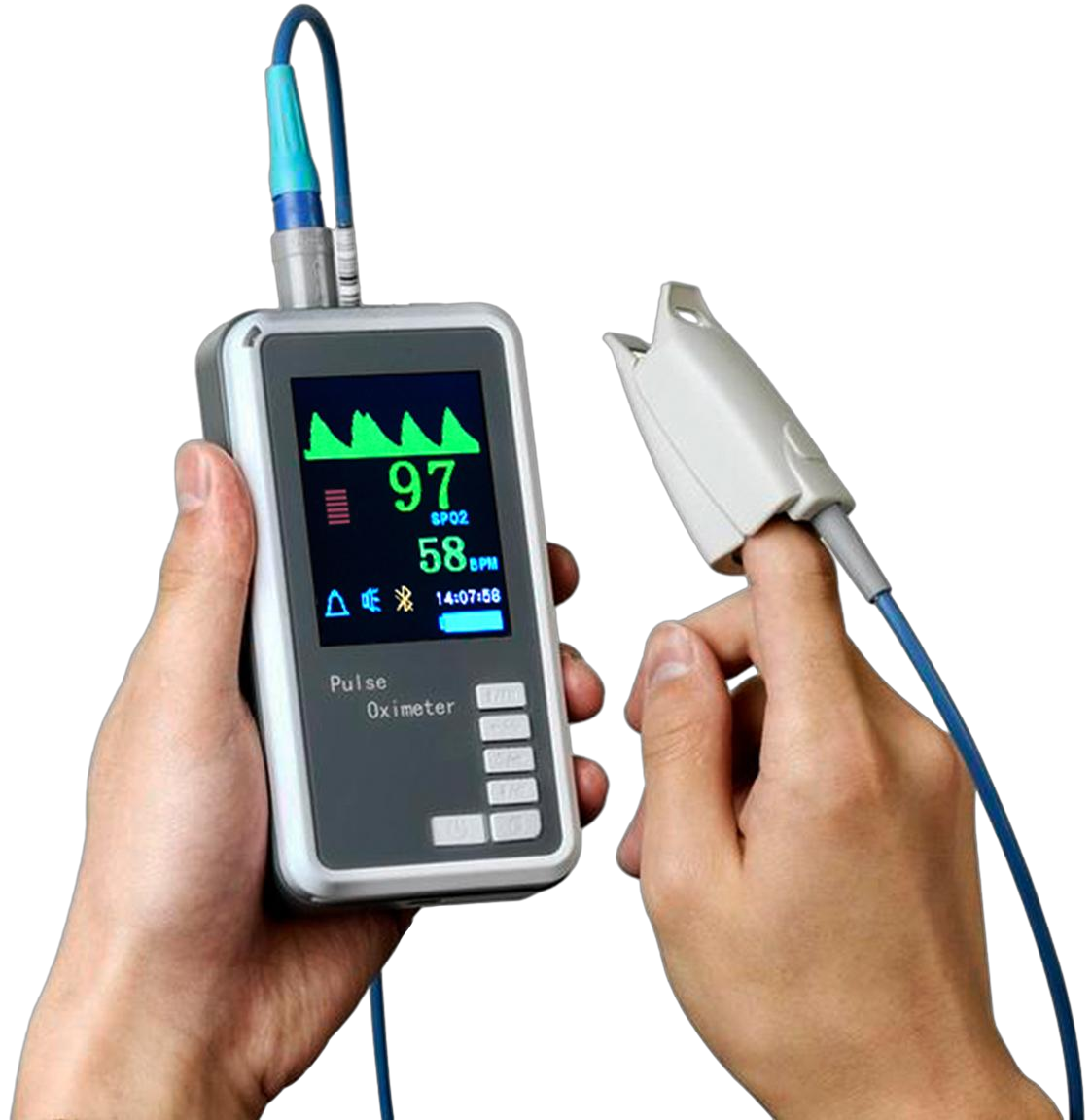

CCM‑I1 is a non‑invasive lithium‑battery‑powered handheld pulse oximeter, supporting AC adapter power supply. It is suitable for adult, pediatric and neonate monitoring, for operating rooms, ICU, clinics, emergency departments, patient transfer and home‑care applications.

Main Features

1. Display & operation: 2.8‑inch 240×320 color TFT‑LCD real‑time display. Supports Chinese, English, Polish. Equipped with heartbeat pitch tone; audio‑visual alarms for out‑of‑range parameters and sensor disconnection. SpO₂ and PR average values configurable from 1‑16 points; battery‑level indicator and auto power‑off for energy saving.
2. Measurement parameters
   ‑ Standard：SpO₂, PR
   ‑ Optional：PI, RR, RESP, PVI
3. Power supply: Built‑in 3.7V 3000 mAh lithium‑ion battery. Continuous working time: 9‑22 hours (depends on power‑saving mode). Charging time 8 hours, ≥300 charge‑discharge cycles. Compatible with 100‑240V AC adapter.
4. Physical & environment: Dimension 130×70×32 mm; weight 160 g (without accessories). Operating temperature: 0‑45 ℃; storage & transport temperature: ‑20‑60 ℃.

Measurement Specifications

‑ SpO₂：0‑100 %；accuracy ±2 % (90‑99 %), ±3 % (70‑89 %)
‑ PR：30‑250 bpm，accuracy ±1 bpm
‑ Optional PI：0.3‑25 %；Optional PVI：0‑49.8 %；Optional RESP：3‑30 bpm

Accessories

‑ Standard：Adult SpO₂ sensor
‑ Optional：Child sensor, newborn sensor
