Product info
- Product name:Entry-level trolley-style B/W ultrasound system
- Product code:CCB-850
Out of stock. Request a quote.
Request a Quote
Packaging Specifications
Core Parameters
Description
Summary of CCB‑850 Entry‑level Trolley‑style Full‑Digital Black‑and‑White Ultrasound Diagnostic System
Manufacturer: China Care Medical Equipment Co., Ltd.
Product Overview

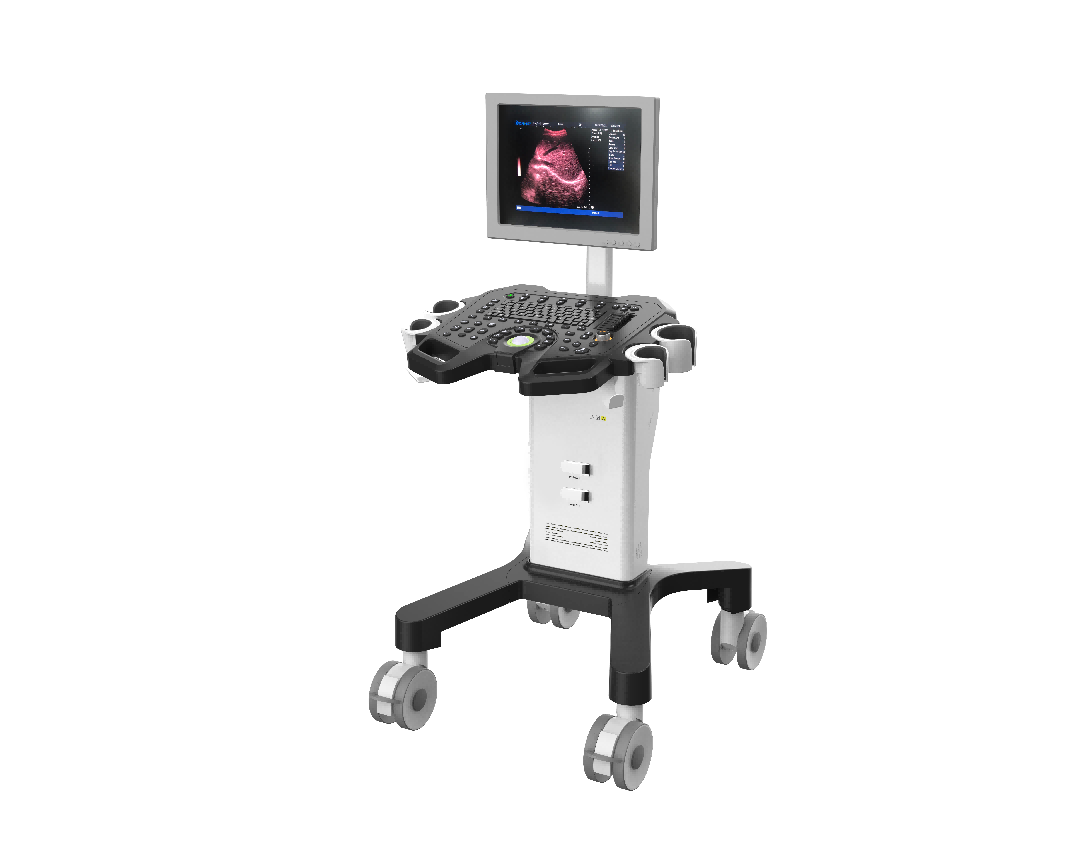

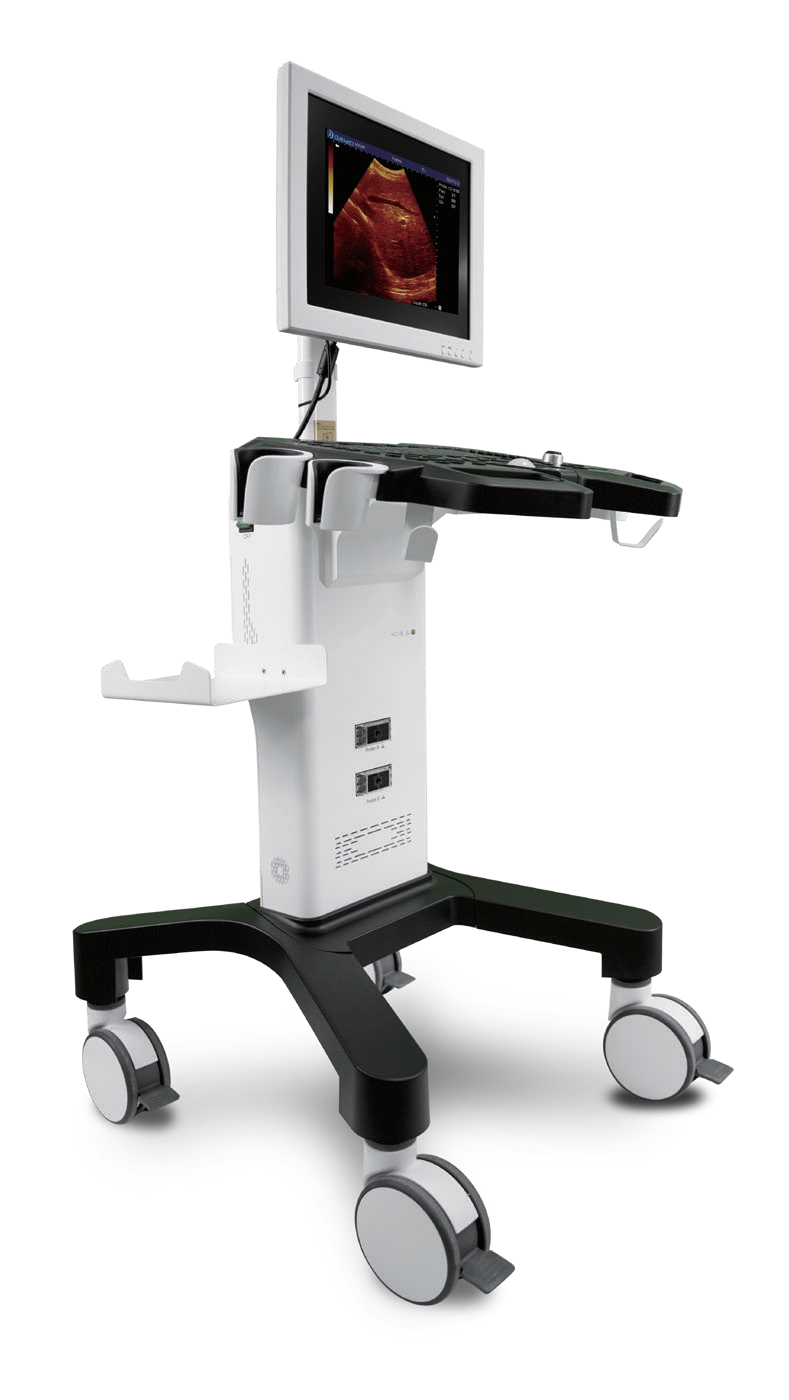

CCB‑850 is a trolley‑mounted entry‑level full‑digital B‑mode ultrasound system. Powered by ARM‑architecture chip, it delivers reliable imaging performance. It is applicable for abdomen, small‑parts, urology, obstetrics and pediatric examinations, with abundant measurement and auxiliary clinical functions.
Main Features
- Display & mechanical design: 15‑inch high‑definition LED screen with 180‑° adjustable opening‑closing angle; lightweight trolley‑type compact structure for good mobility.
- Hardware interfaces: 2 probe ports, classic operating keyboard; equipped with VGA, video and dual‑USB interfaces.
- Imaging modes: Supports B‑Mode, B/B‑Mode, 4B‑Mode, M‑Mode, B/M‑Mode. Provides pseudo‑color display (7‑color options).
- Clinical auxiliary functions: Puncture guidance function, gravel positioning with midline display and one‑click depth measurement; comprehensive obstetric measurement package with preset function.
- Multi‑language: Supports Chinese, English, Spanish, French, Russian, Portuguese.
- Optional probes: Convex probe (abdomen, obstetrics & gynecology); linear probe (vessel, musculoskeletal); trans‑vaginal probe (obstetrics, gynecology, urology).
| Item | Specification |
|---|---|
| Model | CCB‑850 trolley‑style full‑digital B/W ultrasound |
| Chip Architecture | ARM architecture upgraded chip |
| Display | 15‑inch high‑definition LED screen, 180° angle adjustment |
| Imaging Modes | B, B/B, 4B, M, B/M mode; 7‑color pseudo‑color |
| Interfaces | 2 probe ports; VGA, video, 2×USB; standard keyboard |
| Key Clinical Functions | Puncture guidance; gravel positioning & one‑click depth measurement; full obstetrics measurement package |
| System Languages | Chinese, English, Spanish, French, Russian, Portuguese |
| Applicable Departments | Abdomen, small‑parts, urology, obstetrics, pediatrics |
| Optional Transducers | Convex probe, linear probe, trans‑vaginal probe |
