Summary of Fully‑Automatic Dry Biochemical Analyzer

Product Overview

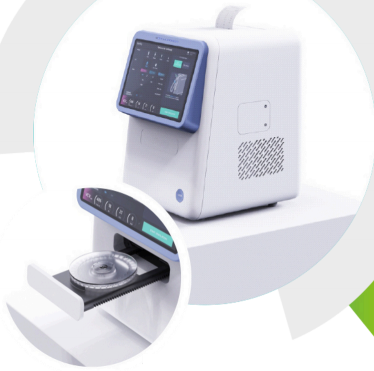

This portable fully‑automatic dry biochemical analyzer adopts microfluidic technology. It features one‑button start and completes testing within only 14 minutes. It is applicable for emergency rooms, general‑level medical institutions, pet hospitals and stroke early‑screening scenarios. Accepts serum and plasma samples.

Main Technical Specifications

‑ Detection methods: colorimetric method, transmission turbidimetry; analysis modes: end‑point method, rate method.
‑ Reaction temperature: 37 °C ±0.3 °C.
‑ Available wavelengths: 340, 405, 450, 505, 546, 600, 660, 750 nm.
‑ 8‑inch capacitive touch‑screen display; Windows operating‑system.
‑ Storage: 64 G; Interfaces: USB, network port; supports external barcode scanning and LIS connection.
‑ Printing: built‑in printer plus network‑printing function.
‑ Power supply: 110‑240 V, 50/60 Hz.
‑ Dimension: 210 × 230 × 300 mm; weight: 4.5 kg.
‑ Working‑environment temperature: 10‑30 ℃.

Test Panels

1. Routine biochemistry 23‑item panel: includes albumin, total protein, glucose, total cholesterol, triglycerides, liver‑function, myocardial‑enzyme, renal‑function and electrolyte indexes.
2. Apoplexy / Stroke 9‑item panel: Lpa, FIB, LDL‑C, HCY, FFA, D‑Dimer, FDP, APOE, ACE.
3. Emergency 7‑item panel: GLU, Urea, Crea, AMY, LPS, CRP, Ca.
   ‑ More test panels are under development.

Manufacturer: China Care Medical Equipment Co.,Ltd Address: Room B101, ZhongBang Business Building, PuXing Road No. 87, Tianhe, Guangzhou, China Contact: +86 189 9883 2732; Email: info@chinacaremedical.com Website: www.chinacaremedical.com
