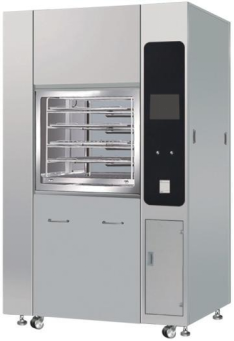

Fully‑Automatic Cleaning and Disinfection Equipment Model 360

Scope of Application

Suitable for hospital surgical knives, hemostatic forceps, forceps, dressing bowls, various plates, and drums; By using different cleaning racks or programs, various medical products such as respiratory tubes, anesthesia tubes, minimally invasive instruments, and plastic products can also be cleaned. Can provide standardized and automated cleaning for the vast majority of reusable medical devices, effectively avoiding cross‑infection.

Product Features

• The imported high‑flow circulation pump ensures cleaning spray pressure, strong cleaning water jet force, and good cleaning effect.
• Patented rotating spray arm with all‑direction dead‑angle‑free coverage, easy for cleaning and maintenance.
• Patented quick‑connect, leak‑proof interface between cleaning chamber and cleaning rack.
• High‑flow fan together with air heater delivers clean dry air at 120 ℃ via HEPA‑13 high‑efficiency air filter (filtration accuracy ≤0.3 μm) for fast instrument drying inside the chamber.
• Zero‑wait operation; automatically completes enzyme washing, two rinses, disinfection (oiling) and drying sequentially to prolong device service life.
• Temperature sensors fitted for each cleaning, disinfection and drying phase; touch‑screen displays real‑time temperature and A0 value.
• Built‑in safety self‑check and intelligent fault‑diagnosis alerts for reliable equipment and instrument processing.
• Main parameters are adjustable within certain ranges to meet customer requirements.
• Built‑in printer outputs full records: running time, program name, operator ID, phase‑by‑phase time‑temperature data, A0 value and cycle count.
• Patented lift‑and‑translate door structure extends service life of door motor and rubber gasket.
• Comprehensive safety protections: leakage protection, phase‑sequence protection, fan protection, circulation pump protection, door motor protection, door safety interlock, dual anti‑dry‑burn protection for heating tube.
• Sanitary‑grade piping system with pneumatic valves for high reliability; top‑tier imported high‑flow circulation pump.
• Expandable for intelligent remote interconnection supporting remote fault diagnosis, remote maintenance and remote training.

Series Features

• Program waiting time halved; standard cycle 38‑50 min for time‑, water‑ and energy‑saving operation.
• Guaranteed cleaning performance; super capacity 1.5× of conventional units; overall efficiency tripled.
• Intelligent operating system; extra‑large transparent glass window for full‑process visual monitoring.
• 6 built‑in programs, up to 32 configurable programs total.
• Intuitive touch‑screen operation; large display shows real‑time cleaning progress.

Technical Parameters (Model 360)
