Product info

Packaging Specifications

Main Component Technical Spe.

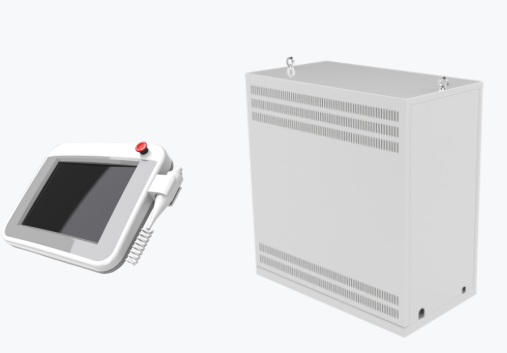

X-ray generator(include console)	Output Power	20KW
	Power Voltage	380V±38V/220V±22V
	kV range	40~125kV
	mA range	10~320mA
	mAs range	0.5 ~320mAs
	Exposure time	0.002~6.3S

X-ray tube	Anode Heat Storage Capacity	140kHU
	Small focus	1.0
	Large focus	2.0
	Anode speed	2700r/min

Collimator	Inherent filtration	1.0mm Al /75kV
Collimator	Light Source	LED

Radiographic Table	Top Table Size	2100X800X650mm
	Bucky Size	18X18inch
	Table longitudinal movement	≥900mm
	Cassette Movement Distance	≥500mm

Vertical Chest stand	Vertical moving range	≥1200mm
Vertical Chest stand	Bucky Size	18X18inch

Double Grid	Size	18X18inch
	Ratio	1:1
	F.D.	100cm
	Density	40 L/cm

Automatic calibration of tube current

X-ray tube has the function of filament dormancy

AEC function, different ionization chamber as optional

Analog - digital double - loop control, simple operation, high intelligence

High kV, high current, high power,strong penetration,able to handle obese patients

Applicable to orthopedics, emergency room, operating room, etc.,

As human head, limbs, chest, spine, lumbar spine for medical diagnosis
