Description

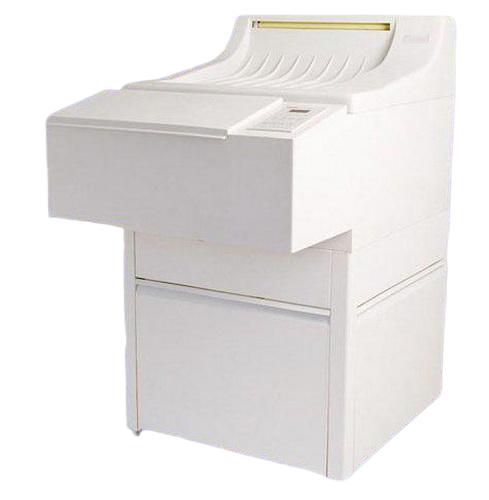

X-ray Film Processor Specifications

A) Operation Conditions

1. Voltage: 220V ±10%, 50/60Hz, 8.8A single-phase
2. Ambient temperature: 5~25℃
3. Ambient humidity: Less than 60%
4. Total machine power: Less than 2.5kW

B) Technical Specifications

• Type: Desktop / Console model

1. Rinse width: 3"×6" – 14"×17"
2. Process time: 90–300s
3. Develop time: 25–70s (adjustable in 5s intervals)
4. Film feed mode: U-slot
5. Film sensing mode: Micro switch
6. Develop temperature: Adjustable 20–40℃ (±0.3℃)
7. Developing capacity: 220 films/h (14"×17"); 280 films/h (10"×12")
8. Dryer temperature: 20–70℃ (adjustable in 5℃ intervals)
9. Channel volume: Develop / Fixation / Rinse each 12.5 litres
10. Washing control: Water flow 2–8L/min during rinsing
11. Replenishment: Auto / manual, 50–500ml
12. Water developing control mode: Solenoid valve control
13. Anti-oxidation function: 30-minute interval
14. Anti-crystallization function: 30-minute interval

C) Packing Details

1. Case: Wooden case
2. Outer dimensions (L×W×H/mm): 1205 × 875 × 850
3. Gross weight: 130kg
