Product info

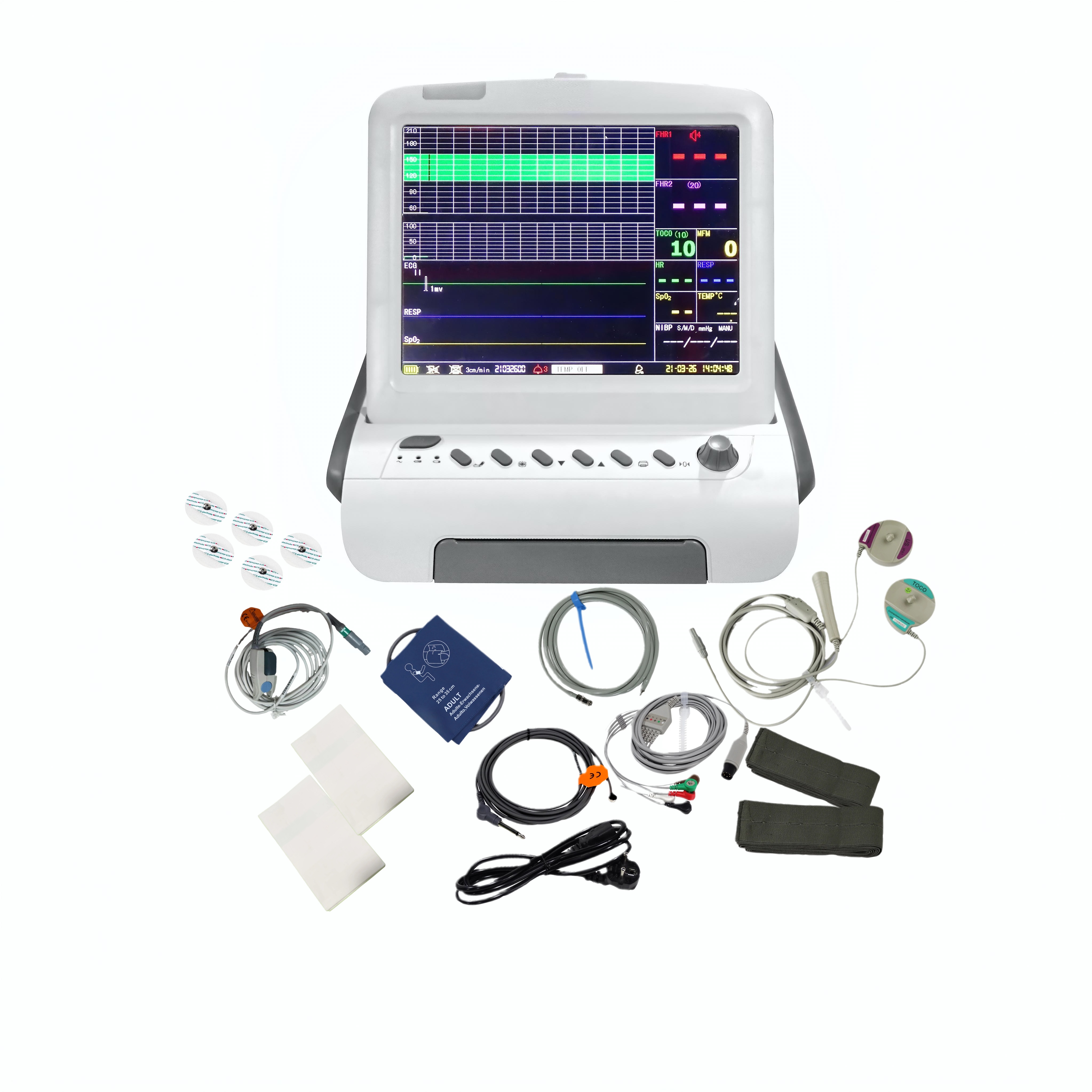

- Product name:12.1" Maternal & Fetal Monitor
- Product code:CCM900B
Out of stock. Request a quote.
Request a Quote
Packaging Specifications
Core Parameters
Description
Summary of CCM900B 12.1‑inch Maternal & Fetal Monitor
Manufacturer: China Care Medical Equipment Co., Ltd.
Address: Room B101, Zhongbang Business Building, No. 87 Puxing Road, Tianhe, Guangzhou, China
Website: www.chinacaremedical.com
Product Overview
The CCM900B is a 12.1‑inch TFT color screen maternal‑fetal monitor with 90‑degree foldable display. It adopts advanced DSP digital signal processing technology and low‑power ultrasound transducer for high‑accuracy, safe monitoring for mother and fetus. It supports AC‑DC dual‑power supply, built‑in thermal printer, long‑term data storage and playback, and can connect to central monitoring system via wired or wireless network. Expected service life of the device is over 20 years.
Main Features
- Hardware & Operation: 12.1‑inch foldable TFT color screen; shuttle knob for convenient operation; 1W speaker, max audio output 1.5 W.
- Ultrasound transducer: Multi‑crystal wide‑beam high‑sensitivity probe, low ultrasonic power for fetal safety, strong anti‑interference performance.
- Monitoring capability: Automatic & manual fetal movement counting; fetal scoring function for clinical reference; patient & clinical event marking buttons.
- Printing: 152 mm imported thermal array printer, prints FHR, TOCO curves and parameters.
- Data management: Over 39‑hours curve data storage, support playback and reprint.
- Alarm system: Multiple alarms including fetal heart rate alarm, low‑power alarm, printer paper‑out alarm.
- Expandable options: Twin‑fetus monitoring, FAS (Fetal Acoustic Simulator), central monitoring system CMS, trolley, wired / wireless network connection.
Core Monitoring Parameters
| Item | Specification |
|---|---|
| Fetal Heart Rate(FHR) | Range:50‑210 bpm /30‑240 bpmAlarm:High:160‑190 bpm; Low:90‑120 bpmTransducer frequency:1.0 MHz, ultrasound intensity＜5 mW/cm² |
| TOCO(Uterine contraction) | Measurement range:0‑100 units |
| Fetal Movement(FM) | Automatic / manual monitoring; adjustable counting threshold & intensity curve |
| MHR(Maternal Heart Rate) | 40‑240 bpm, accuracy: ±2 bpm or 5% reading (whichever greater) |
| SpO₂ | Measuring range:70%‑100% |
| NIBP | Manual single measurement; Auto‑mode with adjustable interval:3‑240 min |
| ECG | Waveform sweep speed:12.5 / 25 / 50 mm/s |
| RESP | Measured via thoracic impedance from electrodes |
| Temperature | 0‑50 ℃, accuracy:0.1 ℃ |
Power & Environment
- Power supply: AC 100‑240 V 50/60 Hz; 14.8 V lithium‑battery, power consumption＜20 W; battery lasts 2 hours without printer working.
- Working environment: Temperature 5‑40 ℃, humidity＜93%, atmospheric pressure 86‑106 kPa.
- Ultrasound safety complies with IEC 1157‑1992 standard.
Standard & Optional Configuration
- Standard: SpO₂, MHR, NIBP, TEMP, ECG, RESP, TOCO, FHR, FM
- Optional: Twin Monitoring, FAS, CMS central monitoring system, trolley, wired/wireless network.
Note: Excerpt does not include full dimension and weight data.
