Product info

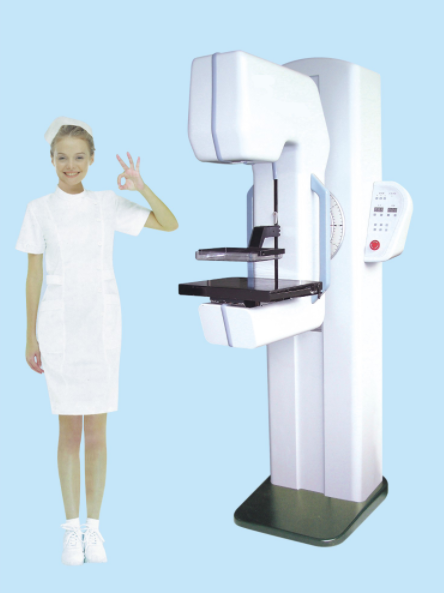

- Product name：5kw breast machine (simulator)
- Product code：CC22090303
Packaging Specifications
- Outer Packaging Size：1.5 × 1.5 × 1.5 m
- Gross Weight：280 kg
- Net Weight：0 kg
- Volume：3.38
Core Parameters
- Max. Output power： 5KW
- High-frequency： 50kHz
- Voltage range： 25~49KV,1KV/step
- Max Current： 100mA
- Compression force/method： Max.10Kg/Auto
- C-arm Rotating angle： +180~-180
- Cassette size： 18*24cm
- POWER： 220VAC, 30A
- Gantry Dimensions： 1810mm * 880mm * 580mm
- Overall weight： 200Kg
Description

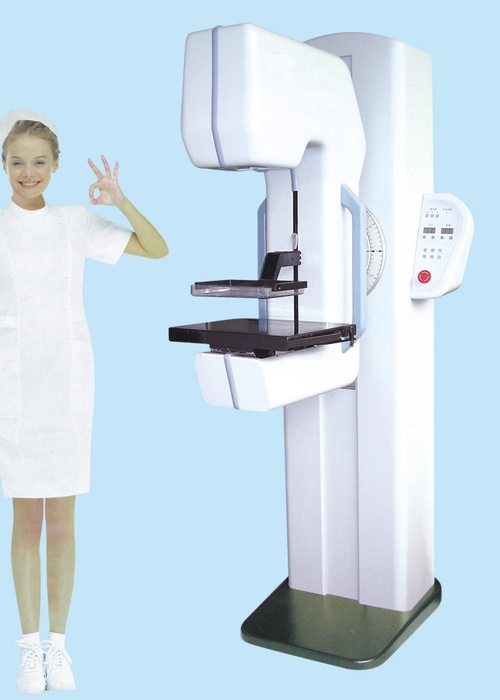

Explore the CC22090303 analog mammography system designed for accurate breast cancer screening. This film mammography machine delivers high-quality imaging, ideal for clinics seeking durable and cost-effective breast imaging equipment.
Advanced Features of the CC22090303 Mammography System
The CC22090303 is engineered for precision, safety, and ease of use, providing a comprehensive solution for breast cancer screening. Below are the key features that set this analog mammography system apart.
Feature Highlight

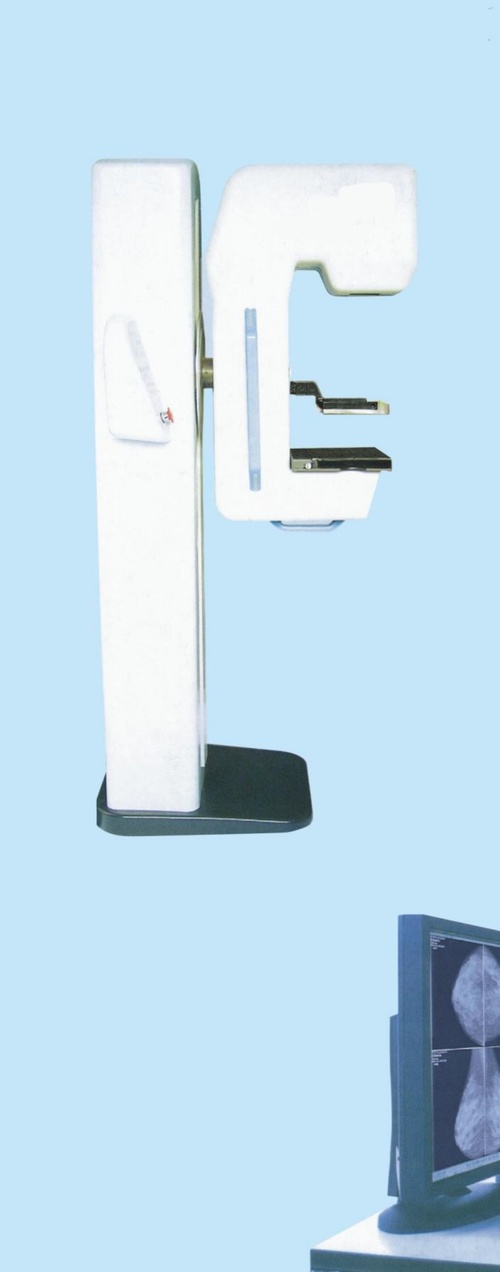

Can use IP board special for galactophore photography and be seamlessly connected with the original CR system in the hospital, which makes its photography digitalized
Feature Highlight

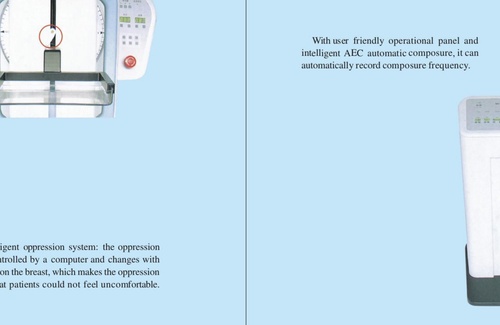

Good image quality, ideal comfort for patients, convenient and flexible operation
Feature Highlight

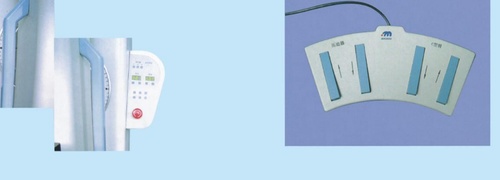

Two sides control system meets the different requirements of equipment room; Motion control buttons on two sides are easily to operate; wherever the doctor is, they are easily reachable and controllable
Feature Highlight

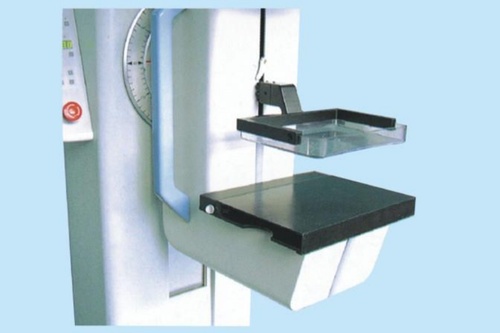

Intelligent oppression system: the oppression speed is controlled by a computer and changes with the pressure on the breast, which makes the oppression so gentle that patients could not feel uncomfortable
Feature Highlight
With user friendly operational panel and intelligent AEC automatic composure, it can automatically record composure frequency
Feature Highlight

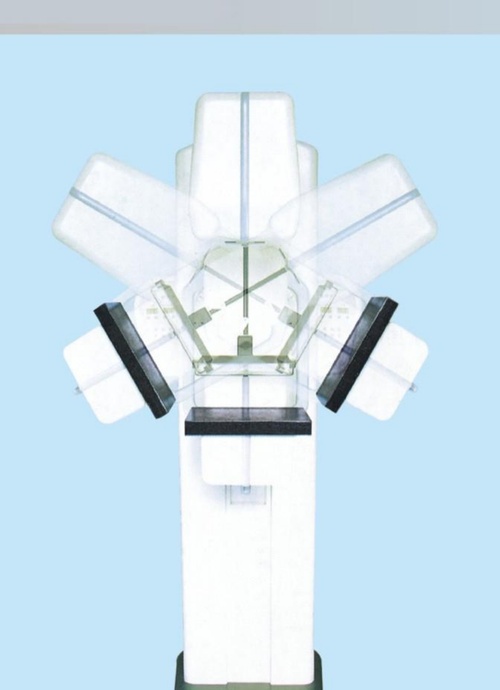

Molybdenum, rhodium, and aluminum grid automatic switch system; the system may improve image quality comprehensively
Feature Highlight
Multi security protection system: emergency switch is set for the machine; Oppression facility is equipped with highspeed decompressor and monoloaded composure closed system; Automatic decompression after composure keeps the machine in a good status whilereleasing, which ensure patients' safety
Technical Specifications
| Component | Specification | |
|---|---|---|
| X-ray Tube | Dual focus | 0.1mm/0.3mm |
| Anode heat capacity | 150-300KHU | |
| Anode type | Rotating Anode | |
| Anode material | Mo | |
| High Voltage Generator | High frequency | 50kHz |
| Voltage range | 20~40KV, 1KV step | |
| Max Current | 100mA | |
| Max Output power | 5kW | |
| Exposure condition control | Manual/Auto | |
| Compressor | Operating mode | Auto(motor) |
| Compression force/method | Max 18Kg/Auto intelligent, flexible | |
| Compression force display | LED | |
| Compressor paddle movement range | 280mm | |
| C-arm | Rotating angle | +180/-160 |
| SID | 65cm Fixed | |
| Anti-scatter grid | Carbon based fine plate | |
| Cassette size | 18*24cm | |
| C-arm vertical movement range | 600mm | |
| Dimensions | Gantry | 1810mm × 850mm × 880mm |
| Console | 960mm × 480mm × 500mm | |
| Overall weight | 200Kg | |
As a leading film mammography machine, the CC22090303 provides exceptional value and performance for any diagnostic imaging center focused on women's health and breast cancer screening.
