Foldable Touchscreen Ultrasound Scanner Specification

Key Features

• Full digital imaging technology for crystal-clear images
• Robust computer platform with abundant functions
• Powerful image and report management system
• Optional 3D image function

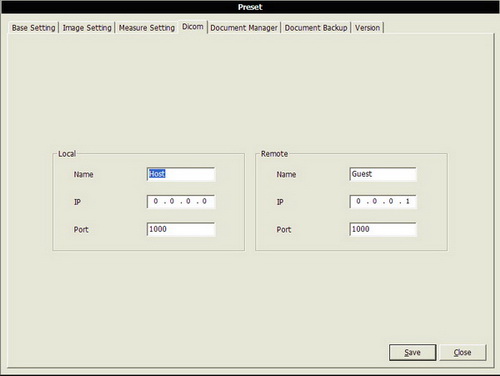

• DICOM display and transfer capability
• 250GB large storage volume
• Supports broadband multi-frequency probes
• Compatible with USB laser/inkjet printers
• Sleek, modern appearance
• 15-inch touch screen color LCD monitor
• Silica gel backlit waterproof keyboard
• 8-segment TGC and 16-step zoom
• Complete application software packages
• Optional external battery operation
• Dual probe connectors
• Foldable design for convenient transport and lower freight costs
• Multi-language support: English, French, German, Spanish, Russian, Italian, Portuguese, etc.

Technical Specifications

• Maximum Scanning Depth: 250mm
• Multi-frequency: 5-segment frequency control
• Zoom: 10-level ratio (1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0)
• Image Gray Scale: 256-level
• Cine Loop: Max. 1024 frames
• Scanning Modes: B, 2B, B/M, M, 4B, 9B, ZOOM
• Real-time Zoom on B Mode
• Image Processing:
• Gain: Adjustable between 0-100dB
• Time Gain Control (TGC): 8-segment adjustment with separate B, M controls
• Monitor: 15-inch touch screen color LCD
• Supported Output Devices: U-Disk, Laser/inkjet printer, video printer, VGA
• Probe Connectors: 2
• Weight: ~28kg

Measurement & Calculation Functions

Human Applications

• General: Distance, circumference, area, volume, angle, ellipse
• Obstetrics: GS, CRL, BPD, HC, AC, FL, estimated fetal weight
• Cardiology: Distance, time, slope

Veterinary Applications

• Cattle: BPD, CRL, TD
• Horse: GA
• Dog: GS
• Cat: HD, BD
• Sheep: BPD, CRL, TD

Additional Functions

• Built-in pseudo color processor
• Pal-D and VGA video output (connect external monitors, printers, VCRs, workstations, etc.)
• Fixed characters, real-time clock, and calendar display
• Software reset function
• Direct connection to laser and video printers
• Comment fields: Date, Name, Sex, Age, Hospital, Annotation
• USB 2.0, VGA, and video ports
• Wide application range: Abdomen, OB/GYN, urology, cardiology, small parts, etc.
• USB image storage: >16,000 images
• Power supply: AC 110V-240V, 50/60Hz

Optional Accessories

• 2.5-7.5MHz convex array probe
• 5.0-10.0MHz linear array probe
• 4.0-5.5MHz micro-convex array probe
• 5.0-7.5MHz trans-vaginal array probe
• 5.0-10.0MHz trans-rectal probe
• Mitsubishi Video Printer P93
