Product info
- Product name:Wireless Ultrasound Convex Linear Microconvex Transvaginal Probe
- Product code:CCB-UP
Packaging Specifications
- Outer Packaging Size:0.15 × 0.1 × 0.08 m
- Gross Weight:1 kg
- Net Weight:0 kg
- Volume:0
Description
Wireless Ultrasound Probe Scanner Series
Standard Configuration
- Main Host (Probe): 1 Unit
- Internal Battery and Charge Cable: 1 Set
- Convex Probe (Base Model Included)
Product Overview

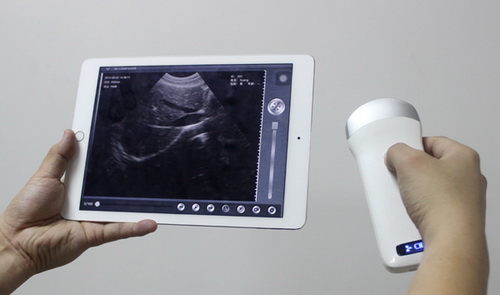

This wireless probe scanner integrates ultrasound circuit boards internally. It connects wirelessly to a PC, tablet, or smartphone (after installing dedicated ultrasound software) to function as a full ultrasound scanner. It is compact, lightweight, and easy to carry and operate.
Application Range
- Emergency clinical use, hospital ward inspection, community clinics, and outdoor examinations
- Ideal for use in surgery, eliminating cable-related inconvenience
- Sterilization is simplified with disposable protective covers
- Meets telemedicine needs via the powerful communication capabilities of smart terminals
Key Features
- Compatible with tablets and smartphones
- Built-in, replaceable rechargeable battery
- Advanced digital imaging technology for clear images
- High cost-effectiveness
- Wireless connectivity for ease of use
- Small, lightweight design for portability
- Applicable in emergency, clinical, outdoor, and veterinary settings
- Leverages smart terminal platforms for powerful expansion in applications, storage, communication, and printing
Model Specifications
| Model | Probe Type | Elements | Frequency | Key Features |
|---|---|---|---|---|
| 5C | Wireless Convex Probe | 128 | 3.5MHz | Harmonic, composite, denoise imaging |
| 5L | Wireless Linear Probe | 128 | 7.5MHz | Harmonic, composite, denoise imaging |
| 5N | Wireless Linear Probe | 128 | 10MHz | Harmonic, composite, denoise imaging |
| 5M | Wireless Micro Convex Probe | 128 | 3.5MHz | Harmonic, composite, denoise imaging |
| 5T | Wireless Transvaginal Probe | 128 | 6.5MHz | Harmonic, composite, denoise imaging |
| 3C | Wireless Convex Probe | 80 | 3.5MHz | Harmonic, composite, denoise imaging |
| 3L | Wireless Linear Probe | 96 | 7.5MHz | Harmonic, composite, denoise imaging |
Technical Specifications
Convex Probe (3.5MHz)
- Scan Mode: Electronic Array
- Display Mode: B, B/M
- Frequency: 3.5MHz
- Depth: 100mm ~ 280mm
- Measurement Functions: Distance, Area, Obstetrics
- Battery Life: 3 hours
- Dimensions: 156mm × 60mm × 20mm
- Weight: 250 grams
- WiFi: 802.11g/20MHz/2.4G/54Mbps
- Compatible OS: Apple iOS, Android
- Frame Rate: 12 fps
Linear Probe (7.5MHz/10MHz)
- Scan Mode: Electronic Array
- Display Mode: B, B/M
- Frequency: 7.5MHz or 10MHz
- Depth: 20mm ~ 55mm
- Measurement Functions: Distance, Area, Obstetrics
- Battery Life: 3 hours
- Dimensions: 156mm × 60mm × 20mm
- Weight: 250 grams
- WiFi: 802.11g/20MHz/2.4G/54Mbps
- Compatible OS: Apple iOS, Android
- Frame Rate: 12 fps
