Product info

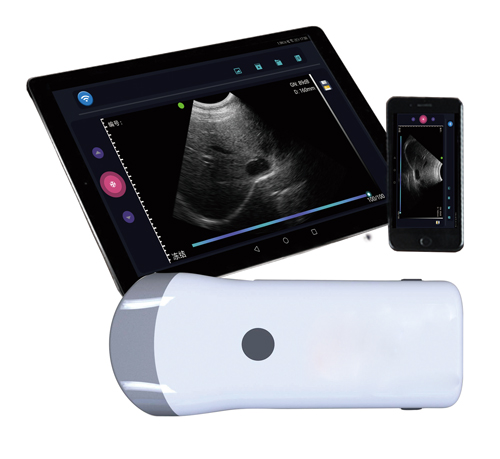

- Product name:Wireless B-Ultrasound Detector Electronic Probe
- Product code:CCVE6
Packaging Specifications
- Outer Packaging Size:0 × 0 × 0 m
- Gross Weight:0 kg
- Net Weight:0 kg
- Volume:0
Description
Wireless Veterinary Ultrasound Scanner Specifications
1. Equipment Description
This device is a wireless veterinary ultrasound scanner, mainly used for pigs, sheep, pets, and other animals.
2. Functional Characteristics
- Compatible with tablets or smartphones.
- Features a built-in and replaceable battery.
- Uses advanced digital imaging technology for clear images.
- High cost-effectiveness.
- Supports wireless connectivity for easy operation.
- Small, light, and easy to carry.
- Applicable in emergency, clinical, outdoor, and veterinary inspection scenarios.
- Intelligent terminal platform with powerful expansion functions for applications, storage, communication, and printing.
3. Performance Specifications
| Parameter | Specification |
|---|---|
| Scanning mode | Electronic array |
| Display mode | B, B/M |
| Probe elements | 80 |
| Probe specifications | 3.5MHz, 60° scan angle, 60mm scan depth |
| Image adjustment | B-Gain, Depth |
| Cineplay | Auto and manual; frames settable as 100/200/500/1000 |
| Battery working time | 3~5 hours |
| Charging | USB charge, 2 hours |
| Dimensions | 165mm × 68mm × 26mm |
| Net weight | 270g |
| Gross weight | 720g |
| Packing size | 250mm × 120mm × 65mm |
| WiFi | 802.11g / 20MHz / 5G / 450Mbps |
| Operating system | Android |
| Battery capacity | 4500mAh |
| Power consumption | 1W (non-charging) / 3W (charging) |
4. Standard Configuration
- Mainframe (containing 1 Li-ion battery)
- 3.5MHz Convex probe
- User manual/technical instructions
- Power adapter (containing power cord)
