Description

I. Brief Introduction

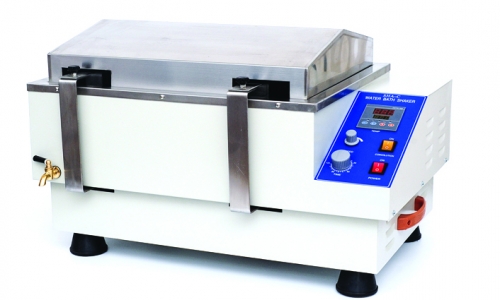

This instrument is manufactured from imported corrosion-resistant plate using advanced techniques. All performance indexes meet national standard requirements. It features:

• High-precision temperature control
• Stable oscillation
• Reliable quality
• Long service life
• The clamp uses advanced stainless steel spring multipurpose holders, which are convenient to use. It is widely applied in microorganism culture and scientific research experiments in fields such as food science, life sciences, medicine, agriculture, and environmental protection.

II. Technical Specifications

1. Power Source: 220 V, 50 Hz
2. Temperature Control Range: 0–100 °C (precision ≤ ±1 °C, LED display)
3. Rotary Speed: 30–360 rpm
4. Timing Range: 0–120 minutes
5. Oscillation Amplitude: ≥ 20 mm
6. Working Chamber Net Capacity: ≥ 400 × 320 × 220 mm
7. Working Load: 12 kg
8. Working Method: Continuous operation

III. Method of Application

The instrument uses a 220 V alternating current power source. Before use:

1. Ensure the outlet has a current rating of no less than 6 A and is equipped with a safety grounding device. Replace the outlet if these conditions are not met.
2. Open the cover and clamp the vessel requiring oscillation in the spring multipurpose holder.
3. Turn on the power switch and the oscillation switch.
4. Select the desired oscillation speed and operating temperature. Adjust the oscillation speed from slow to fast.
5. Control the temperature as needed using the temperature display unit. Indicator lights show the operating mode:

IV. Precautions

1. If timing is required, set the knob to the corresponding position. If not, set it to the “ON” position.
2. Always turn off the instrument when placing or removing vessels.
3. Place the instrument on a stable surface; do not use it if tilted.
4. For personal safety and property protection, the outlet must have a safety grounding device. Always turn off the outlet after use.
6. The products are guaranteed for long-term maintenance. Please use them with confidence. (The manufacturer is not liable for costs incurred due to improper use or artificial damage.)
