Description

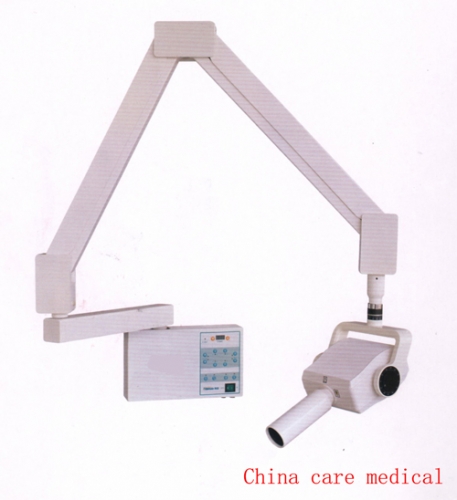

Dental X-ray Machine

Features

• Adopts internationally advanced technology with high-efficiency clear imaging and low leakage radiation (only 1% of the national standard limit).
• Touch button with microcomputer control; one-button selection of exposure parameters for fast and accurate operation.
• Image obtained in one minute under light room conditions, enabling convenient and quick diagnosis.
• Pneumatic up-down seat for enhanced comfort and convenience.
• Designed for use with dental digital imaging systems.

Specifications

• Power supply: AC220V±10%, 50Hz, 1kVA
• Tube voltage: 60kVp
• Tube current: 8mA
• Focus size: 1.5mm
• Total filtration: 2.5mm Al
• Exposure time: 0.2–4 sec
• Leak radiation: <0.002mGy/h at 1 meter (National standard: ≤0.25mGy/h)
• Optional: Tube current 0.5mA; focus size 0.8mm
• Additional filtration plate: 5.0/0.5mm aluminum (each device is equipped with one)

Precautions

1. Safety Grounding: Properly install good ground connection for safe operation.
2. Intermittent Operation: Due to small thermal capacity, intermittent use is recommended to prevent overheating.
3. Radiation Safety: X-rays are only generated during exposure; no radiation is produced when powered off.
4. Emergency Stop: In case of abnormal operation, immediately cut off power and discontinue use. Resume operation only after maintenance and inspection.
5. Disassembly Order: Always disassemble the nose first, then other components.
6. Post-Use Procedure: After each use, retract the arm to the highest position and place the head in equilibrium position.
7. Cleaning & Disinfection: Disinfect the end of the beam tube with medical alcohol after use for some patients. Clean the machine surface weekly with a dry cloth and inspect all connector contacts.
8. Maintenance Check: Regularly inspect:
9. Power Supply Requirements: The machine's rated capacity is 1.1kW. Use a power supply with capacity greater than 1.5kW. If grid voltage is unstable, use an industrial regulator ≥1.5kW to prevent damage to the machine.
