Product info

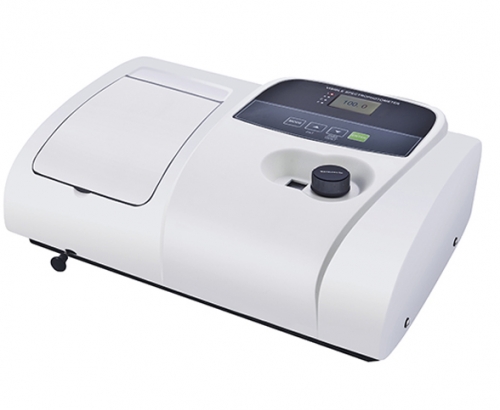

- Product name:Visible Spectrophotometer
- Product code:CCL-5000
Packaging Specifications
- Outer Packaging Size:0.42 × 0.3 × 0.16 m
- Gross Weight:28 kg
- Net Weight:0 kg
- Volume:0.02
Description
Features
Microprocessor controlled
With microprocessor controlled, can realize auto Zero and auto 100%T adjustment with one push-button. CCL-5000 has a LCD display instead of LED display for direct readout of Transmittance, Absorption, and Concentration.
Grating monochromator
uses 1200 line grating which ensures high resolution, low stray light and high parameters accuracy.
Data output
CCL-5000 is equipped with USB port which can be connected to PC to edit data through specific software. Data can also be printed through a parallel port when connected to a micro printer.
Compact design, easy to carry
The compact design of CCL-5000 saves bench space while all components function remain performed like 120mm wide sample compartment and long optical path monochromator.
Four Display Mode
can display absorption, transmittance, concentration and coefficient directly by different mode switching.
Technical Specification
| Parameter | Specification |
|---|---|
| Model | |
| Optical System | Single Beam, Grating 1200lines/mm |
| Wavelength Range | 325-1000nm |
| Spectral Bandwidth | 4nm |
| Wavelength Accuracy | ±2nm |
| Wavelength Repeatability | 1nm |
| Photometric Accuracy | ±0.5%T |
| Photometric Repeatability | 0.3%T |
| Photometric Mode | T, A, C, F |
| Stray Light | ≤0.2%T |
| Stability | ± 0.002A/h @ 500nm |
| Display | LCD |
| Detector | Silicon Photodiode |
| Output | USB Port & Parallel Port(Printer) |
| Light Source | Tungsten Halogen Lamp |
| Power Requirements | AC 85~250V |
| Dimension | 420280180mm |
| Weight | 8kg |
