Product info

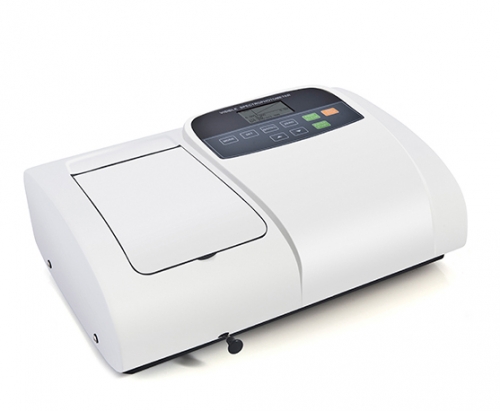

- Product name:Visible Spectrophotometer
- Product code:CCL-V5100
Packaging Specifications
- Outer Packaging Size:0.42 × 0.3 × 0.16 m
- Gross Weight:28 kg
- Net Weight:0 kg
- Volume:0.02
Description
Features
2.5' LCD screen
Equipped with a 2.5 LCD screen to give a clear display of standard curves and groups of results.
Standard curve
Can set up various standard curves according to customer's solutions and find the concentration of unknown solutions.
Data output
Equipped with USB port to connect with a PC to display spectrum scanning, kinetics and multiwavelength testing results on the screen. The software is optional.
Multiple results readout
Can display wavelength, absorption and transmittance with 5 results per screen. It also has a memory store of up to 200 results.
Auto setting wavelength
Users set wavelength automatically through arrow keys to avoid operation errors.
Technical Specification
| Parameter | Specification |
|---|---|
| Model | CCL-V5100 |
| Optical System | Single beam, Grating 1200 lines/mm |
| Wavelength Range | 325-1000nm |
| Bandwidth | 4nm |
| Wavelength Accuracy | ±1nm |
| Wavelength Repeatability | 0.5nm |
| Wavelength Setting | Auto |
| Photometric Accuracy | ±0.5%T |
| Photometric Repeatability | 0.3%T |
| Photometric Range | -0.3-3A; 0-200%T |
| Photometric Mode | T, A, C, F |
| Stray Light | ≤0.2%T |
| Stability | ±0.002A/h @ 500nm |
| Display | 128*64 LCD |
| Detector | Silicon Photodiode |
| Light Source | Tungsten Lamp |
| Output | USB Port & Parallel Port(Printer) |
| Power Requirements | AC 85~250V |
| Dimension | 420280180mm |
| Weight | 11kg |
