Description

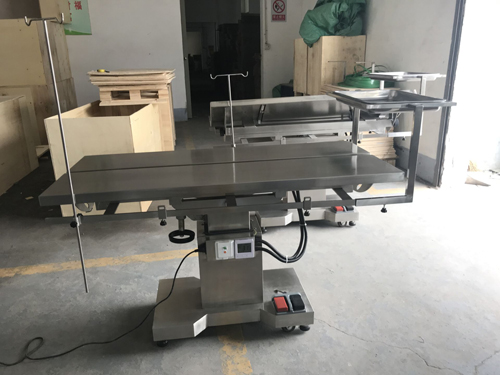

Electric Animal Operating Table

General Introduction

The electric animal operating table can add constant temperature system & electric rise and down function. It is suitable for small animal’s operation, such as sheep, dog, and etc. It is reasonable structured, tight, high performance, easy operation and has very strong practicability.

Design Parameter

1. Table height: 800－1000mm
2. Table dimension: 1400×650mm
3. Table gradient: ±15°
4. Adjustable angle of table board: 0°-45°
5. The range of temperature: 0°－50°

Production and Performance

1. The electric animal operating table is composed of table-board, pin, and table pedestal, equipped with surgical instruments bracket, tray and infusion support.
2. The completed operating table is made of stainless steel, table pedestal adopts rolling design, can move easily and has fixed-lock bolt.

Structure Diagram

1. (Structure diagram content not provided in the image)
